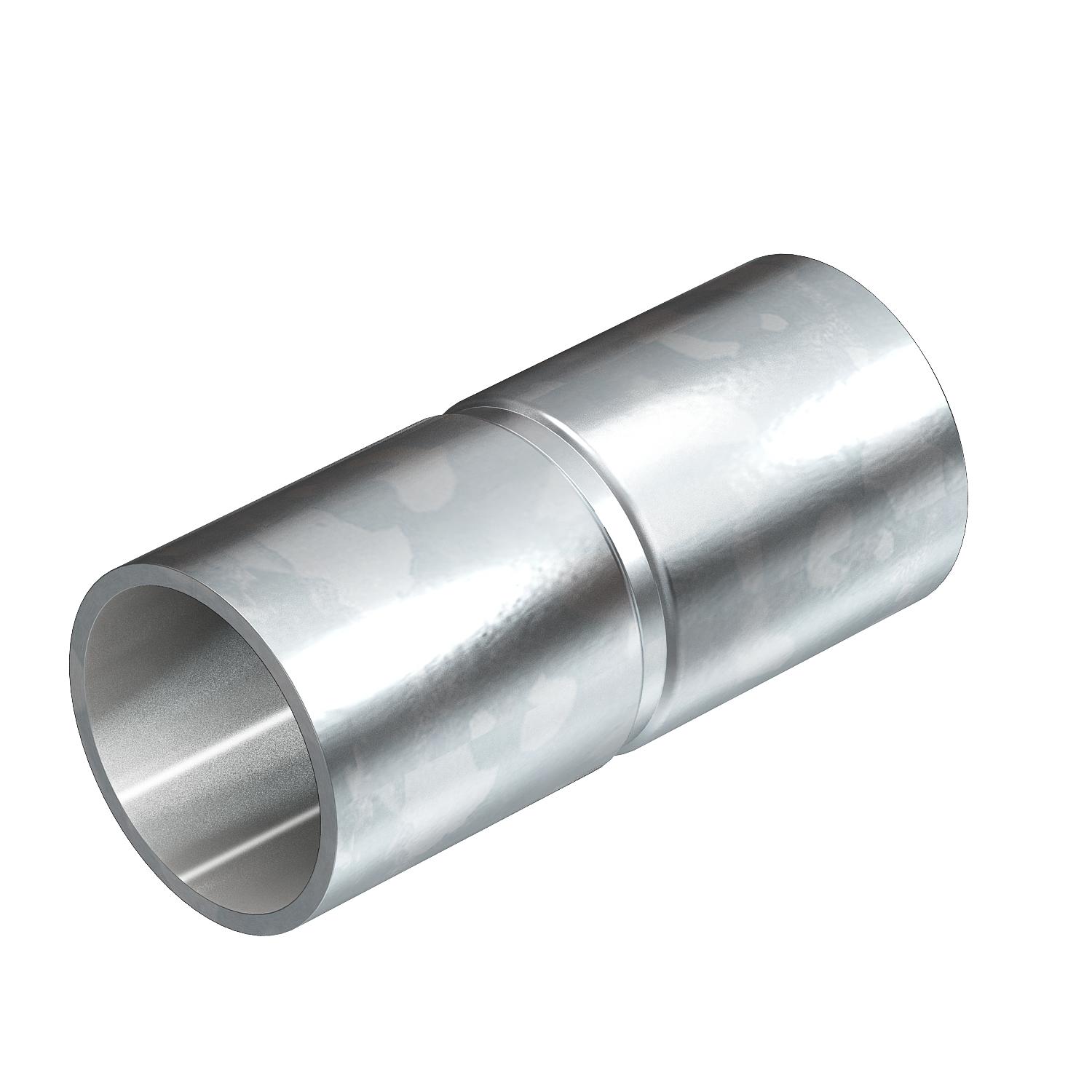

Electrogalvanised steel sleeve, without thread
Item no. 2046856 | EAN 4012195924807
- Product description
-
Product descriptionAccessory part: plug-in sleeve for the connections between electrical installation pipes. With burr-free inner wall.
-
- Technical data
-
Technical data

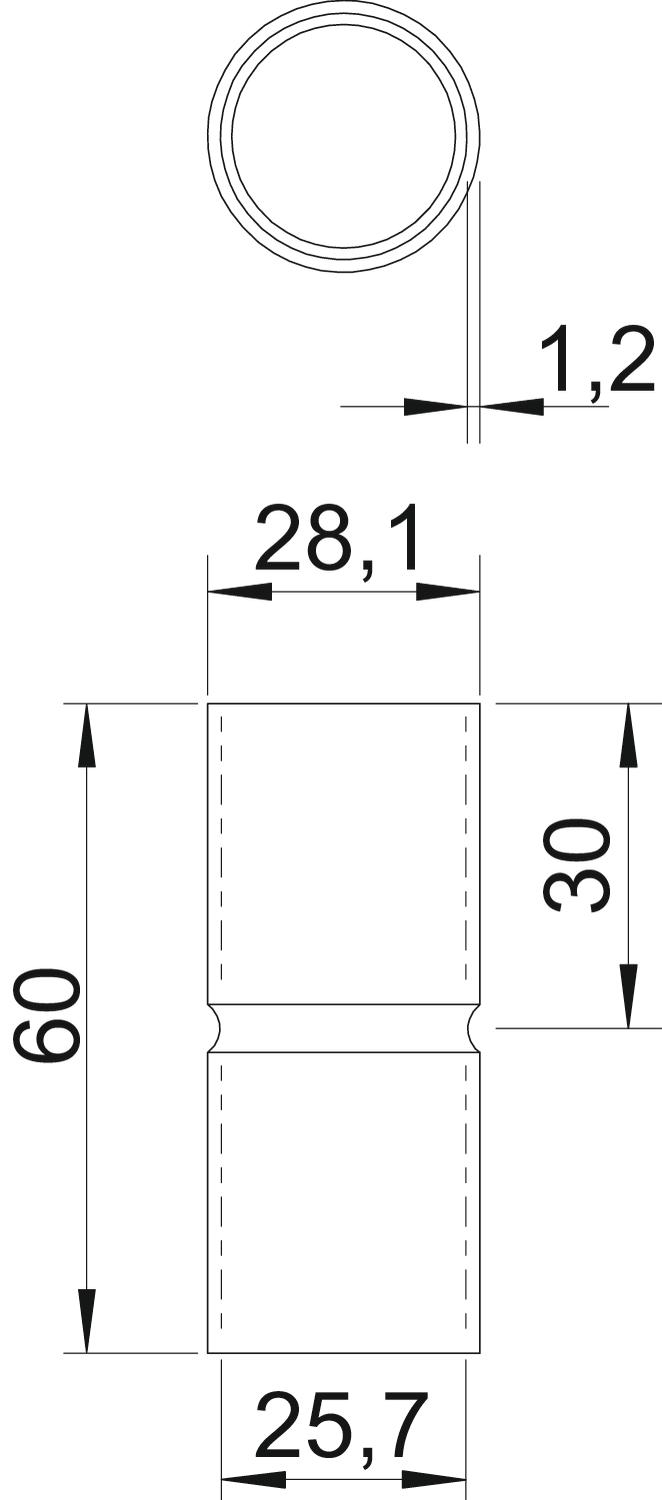

Brushed surface no CO2 Footprint (GWP) Cradle-to-Gate 0,1172 kg CO₂e / 1 Piece Dimension Ø25mm Dimension d 25,7 mm Dimension D 28,1 mm Dimension L 60 mm Dimension l 30 mm Dimension m (mm) M25 Dimension t 1,2 mm for pipe diameter 25 mm Halogen-free yes Length 60 mm Material Steel Permitted temperature range, max. 400 °C Permitted temperature range, min. -45 °C Polished surface no Size 25 Surface Electrogalvanized Two-part no Version for Connector With inspection opening and lid no - All types
- Downloads
-
Data sheet SV25W G / 2046856 , 0.20MB , pdfEU declaration of conformity SV25W G / 2046856 , 0.10MB , pdfUK Declaration of Conformity SV25W G / 2046856 , 0.09MB , pdfREACH Declaration of conformity SV25W G / 2046856 , 0.12MB , pdfRoHS Declaration of conformity SV25W G / 2046856 , 0.12MB , pdf
