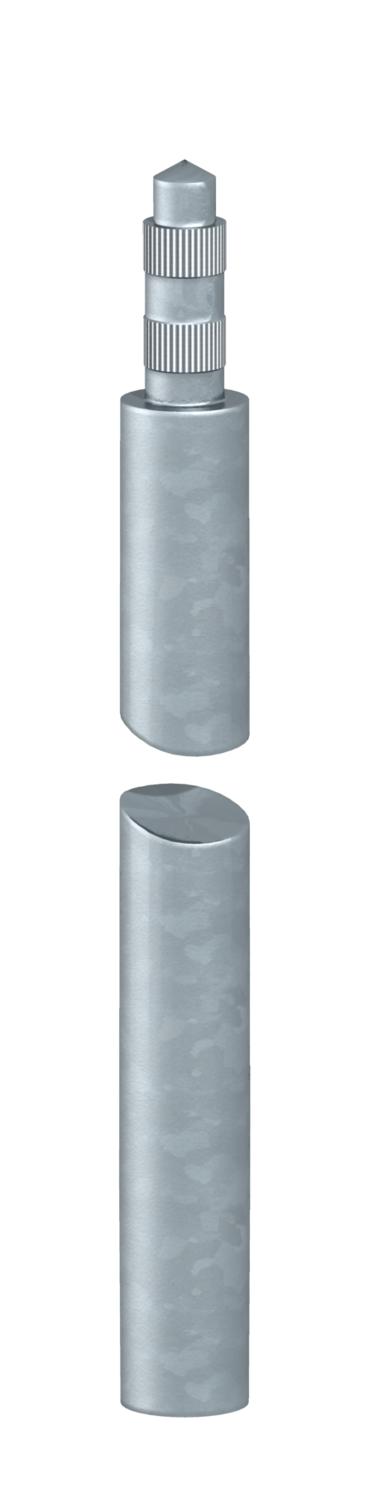

Earth rod for standard applications 1000 | 20 | Steel

Earth rod for standard applications

Item no. 5000742 | EAN 4012195018049

Item no. / Types

Length

External diameter	20 mm

Material	Steel

Product description

Product description

• High corrosion resistance

• Zinc support approx. 130 µm

• With peg and bore for linking together

• Round pegs with two knurls

• Conforms to the requirements according to VDE 0185-305 (IEC 62305)

• Short-circuit current Ik (50 Hz), time 1 s, temp. max. 300 °C: 7.9 kA

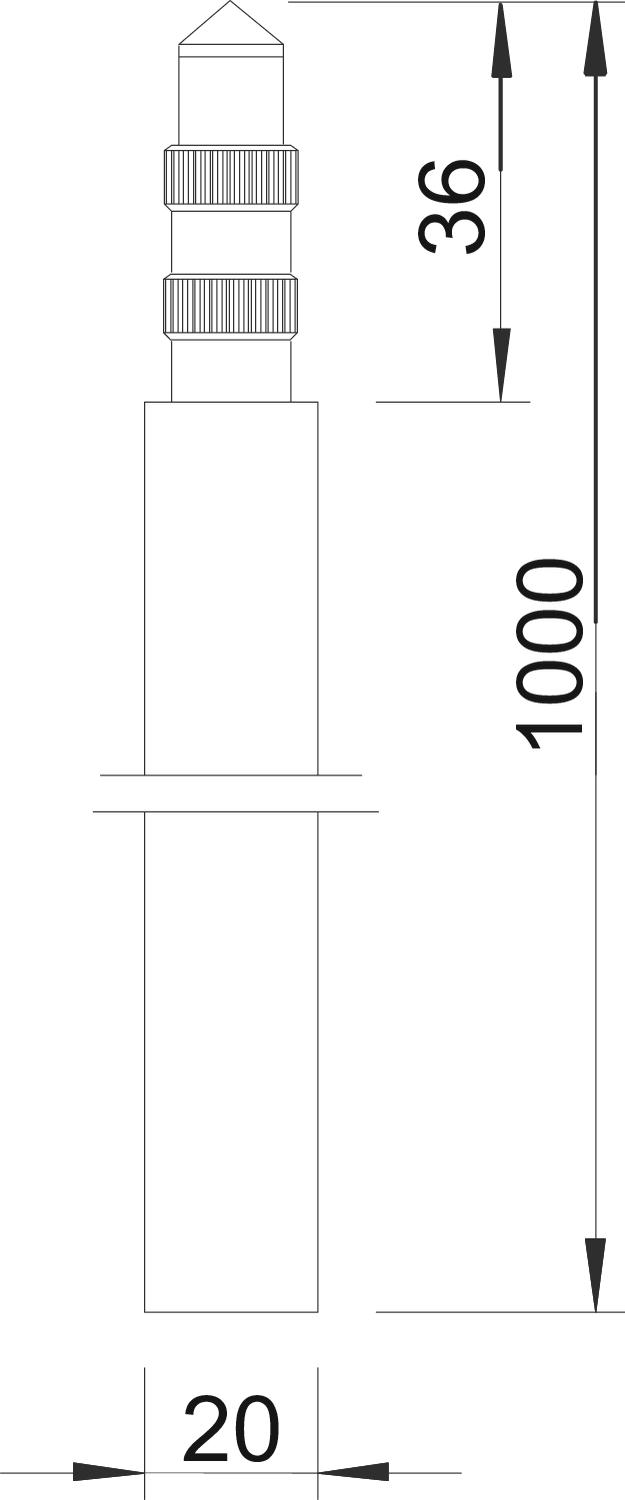

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	7,1416 kg CO₂e / 1 Piece
Dimension	1,0m
External diameter	20 mm
Length	1000 mm
Lightning current carrying capacity	H/100 kA

Material	Steel
Profile type	Round D=20 mm
Short-circuit current (50 HZ)(1 s;≤300°C)	7,9 kA
Surface	Hot-dip galvanised

All types

All types

Types	Length	External diameter	Material	Item no.
219 20 ST FT	1000 mm	20 mm	Steel	5000742
219 20 ST FT	1500 mm	20 mm	Steel	5000750

Accessories

Mounting accessories

Products	Types	Item no.

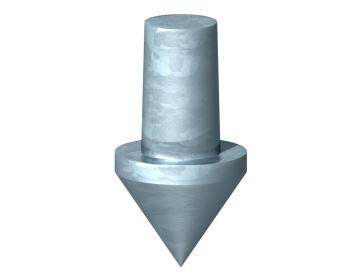

Driving spike for ST and BP earth rod	1819 20BP	3041212

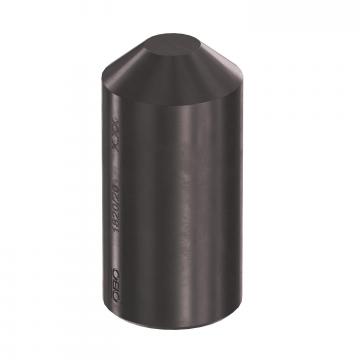

Driving head for ST, BP and OMEX earth rods	1820 20	3042200

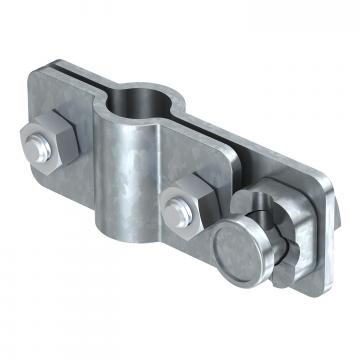

Connection clip for earthing rod to round cables Rd 8−10	2710 20 FT	5001218

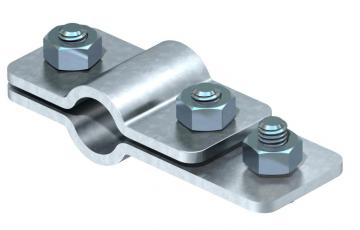

Connection clamp for earth rod on flat conductor FT	2730 20 FT	5001404

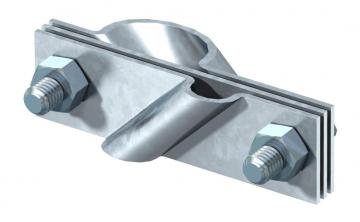

Connection clamp for earth rod, universal FT	2760 20 FT	5001641
