Cable tray MKS-Magic® 60, unperforated FT

Item no. 6059248 | EAN 4012195831419

3050 mm
60 mm
1 mm
no
zinc
Steel
Hot-dip galvanised
Product description
Product description

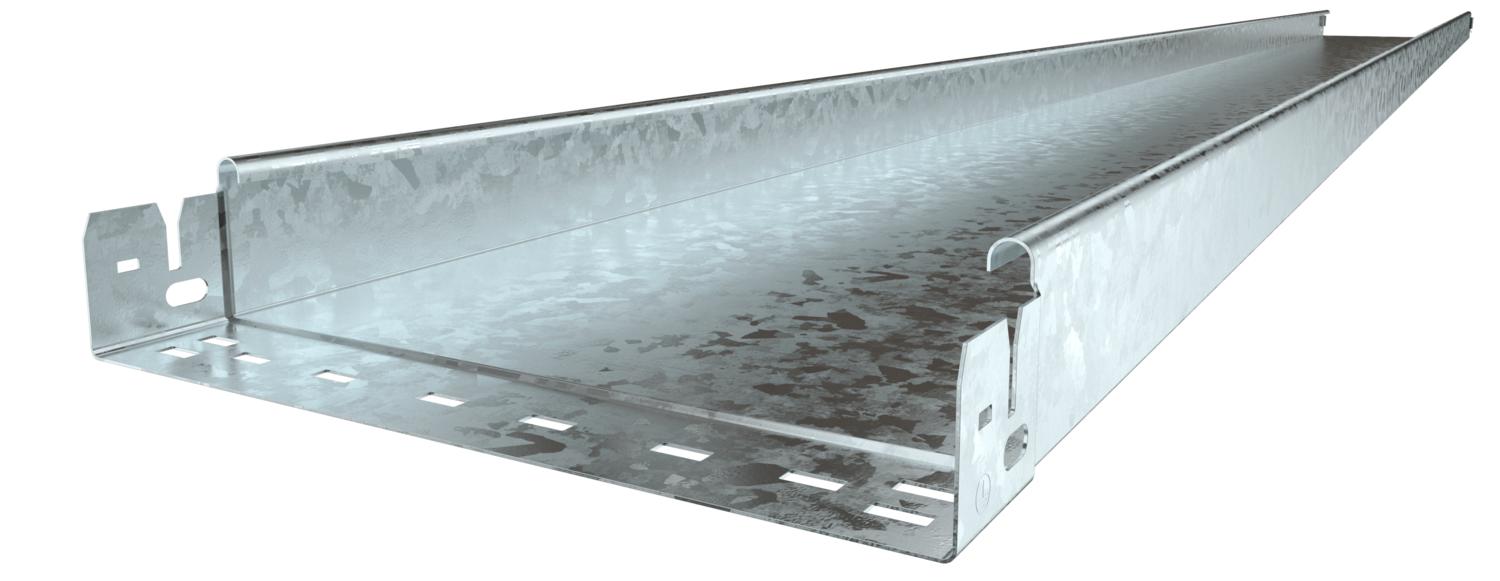

Unperforated cable tray with integrated quick fastening system. The usable length of the cable tray is 3,000 mm.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate 4,6671 kg CO₂e / 1 Meter
Colour zinc
Connector version Integrated connector

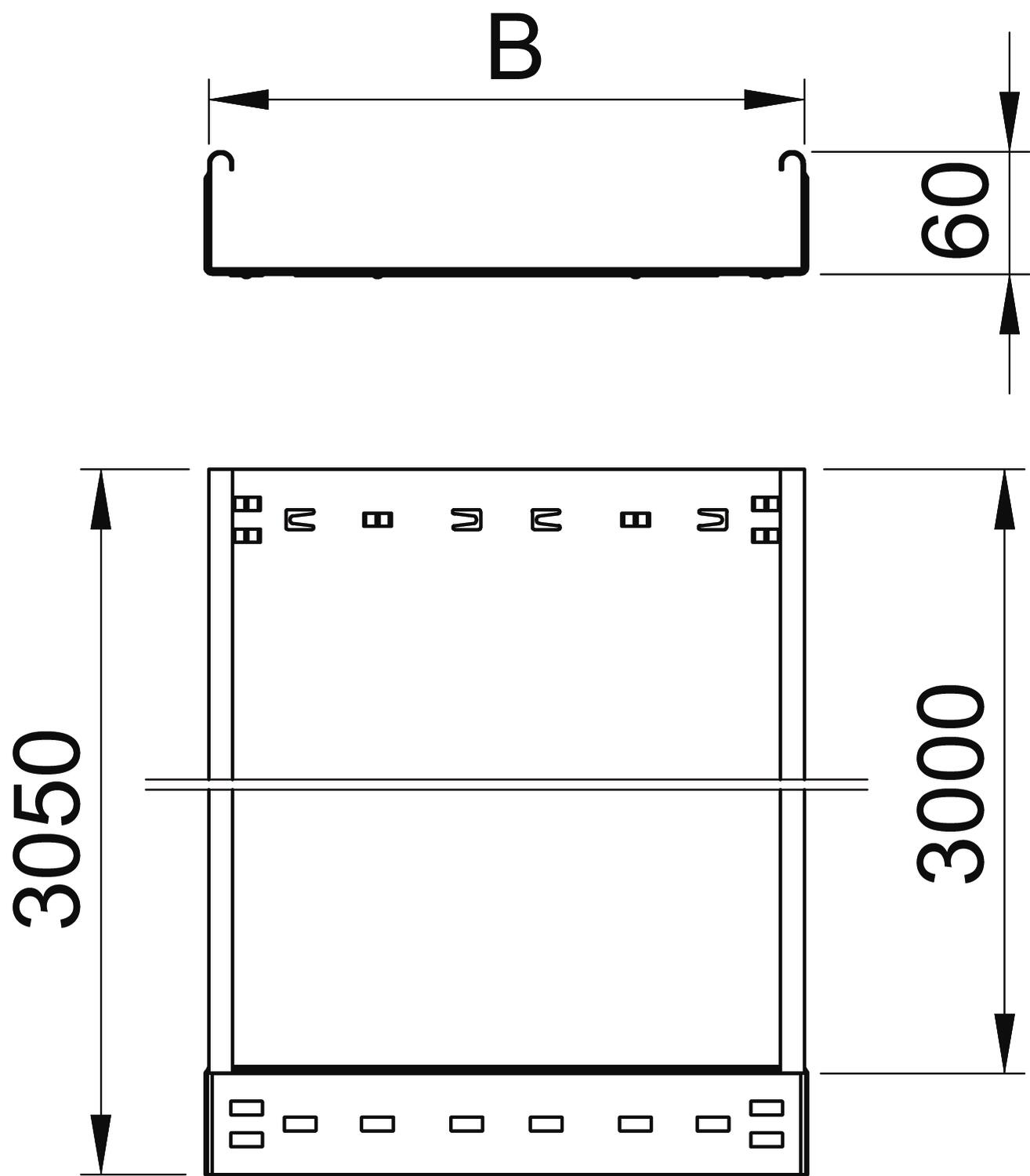

Dimension 60x100x3050
Dimension B 100 mm
Height 60 mm
Length 3050 mm
Load test type according to IEC 61537 Type II
Maintain electrical functions no
Material Steel
Mounting perforation in base no
NATO hole pattern no
Plate thickness 1 mm
Rustproof steel, pickled no
Side perforation no
Support spacing 1.5 m 1,5 kN/m
Support spacing 1.75 m 1,25 kN/m
Support spacing 2.0 m 1 kN/m
Support spacing 2.5 m 0,5 kN/m
Surface Hot-dip galvanised
Type of connector, cable support system Click fastening
Usable cross-section 58 cm²
Usable cross-section 5800 mm²
Usable length 3000 mm
Wide-span version no
Width 100 mm
With cover no

Technical data

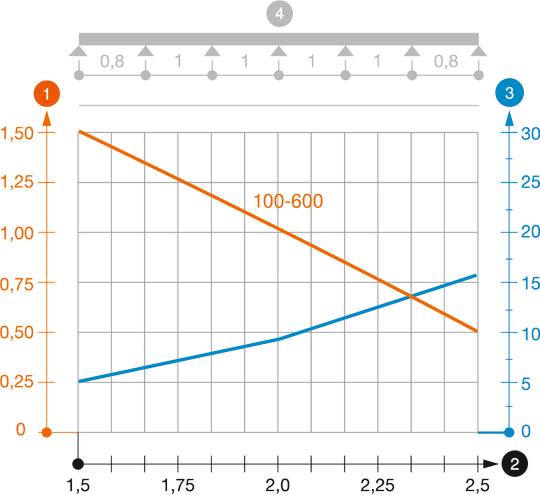

Load diagram, cable tray, type MKSMU 60

Load diagram, cable tray, type MKSMU 60
  • Permitted cable tray/ladder load in kN/m without man load Permitted cable tray/ladder load in kN/m without man load
  • Support width in m Support width in m
  • Rail bend in mm at permitted kN/m Rail bend in mm at permitted kN/m
  • Load scheme during testing Load scheme during testing
  • Load curve with cable tray/ladder width in mm Load curve with cable tray/ladder width in mm
  • Strut bend curve according to support width Strut bend curve according to support width
All types

All types

Types Length Width Height Plate thickness Maintain electrical functions Colour Material Surface Item no.
MKSMU 610 FT 3050 mm 100 mm 60 mm 1 mm no zinc Steel Hot-dip galvanised 6059248
MKSMU 615 FT 3050 mm 150 mm 60 mm 1 mm no zinc Steel Hot-dip galvanised 6059250
MKSMU 620 FT 3050 mm 200 mm 60 mm 1 mm no zinc Steel Hot-dip galvanised 6059252
MKSMU 630 FT 3050 mm 300 mm 60 mm 1 mm no zinc Steel Hot-dip galvanised 6059254
MKSMU 640 FT 3050 mm 400 mm 60 mm 1 mm no zinc Steel Hot-dip galvanised 6059256
MKSMU 650 FT 3050 mm 500 mm 60 mm 1 mm no zinc Steel Hot-dip galvanised 6059258
MKSMU 660 FT 3050 mm 600 mm 60 mm 1 mm no zinc Steel Hot-dip galvanised 6059260
Accessories

System accessories

Products Types Item no.
Magic straight connector set DD Magic straight connector set DD KTSMV 610 DD 6068936
Cover with turn buckle FT Cover with turn buckle FT DRL 100 FT 6051340
45° bend 60 FT 45° bend 60 FT RB 45 610 FT 6036130
90° bend 60 FT 90° bend 60 FT RB 90 610 FT 6036590
Bend, angle-adjustable, 60 FT Bend, angle-adjustable, 60 FT RB W 610 FT 6037120
Add-on tee 60 FT Add-on tee 60 FT RAA 610 FT 6042211
T piece 60 FT T piece 60 FT RT 610 FT 6038130
Cross-over 60 FT Cross-over 60 FT RK 610 FT 7027411
Cover with turn buckle DD Cover with turn buckle DD DRL 100 DD 6052703
Barrier strip 60 DD Barrier strip 60 DD TSG 60 DD 6062327
90° Magic bend 60 FT 90° Magic bend 60 FT RBM 90 610 FT 6041150
Downloads

Download

Download
Download

EU declaration of conformity MKSMU 610 FT / 6059248 , 0.11MB , pdf
Download
Environmental Product Declaration (EPD) MKSMU 610 FT / 6059248 , 1.48MB , pdf
Download
UK Declaration of Conformity MKSMU 610 FT / 6059248 , 0.09MB , pdf
Download
REACH Declaration of conformity MKSMU 610 FT / 6059248 , 0.12MB , pdf
Download
RoHS Declaration of conformity MKSMU 610 FT / 6059248 , 0.13MB , pdf
Download

Download

Download
Download

MKSMU 610 FT / 6059248
