45° bend 60 FT 100 | Steel | Hot-dip galvanised | zinc

45° bend 60 FT

Item no. 6036130 | EAN 4012197345822

Item no. / Types

Width

Material	Steel

Surface	Hot-dip galvanised

Colour	zinc

Product description

Product description

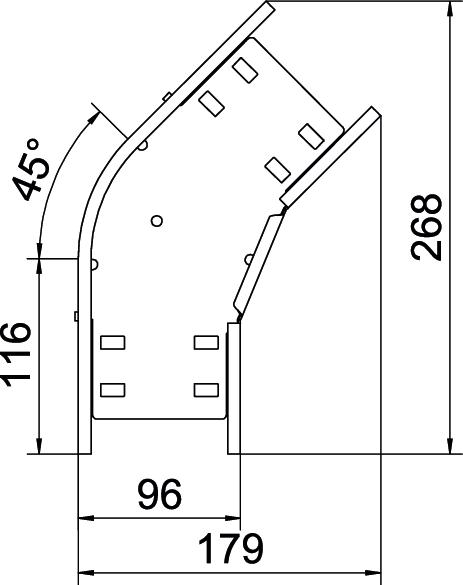

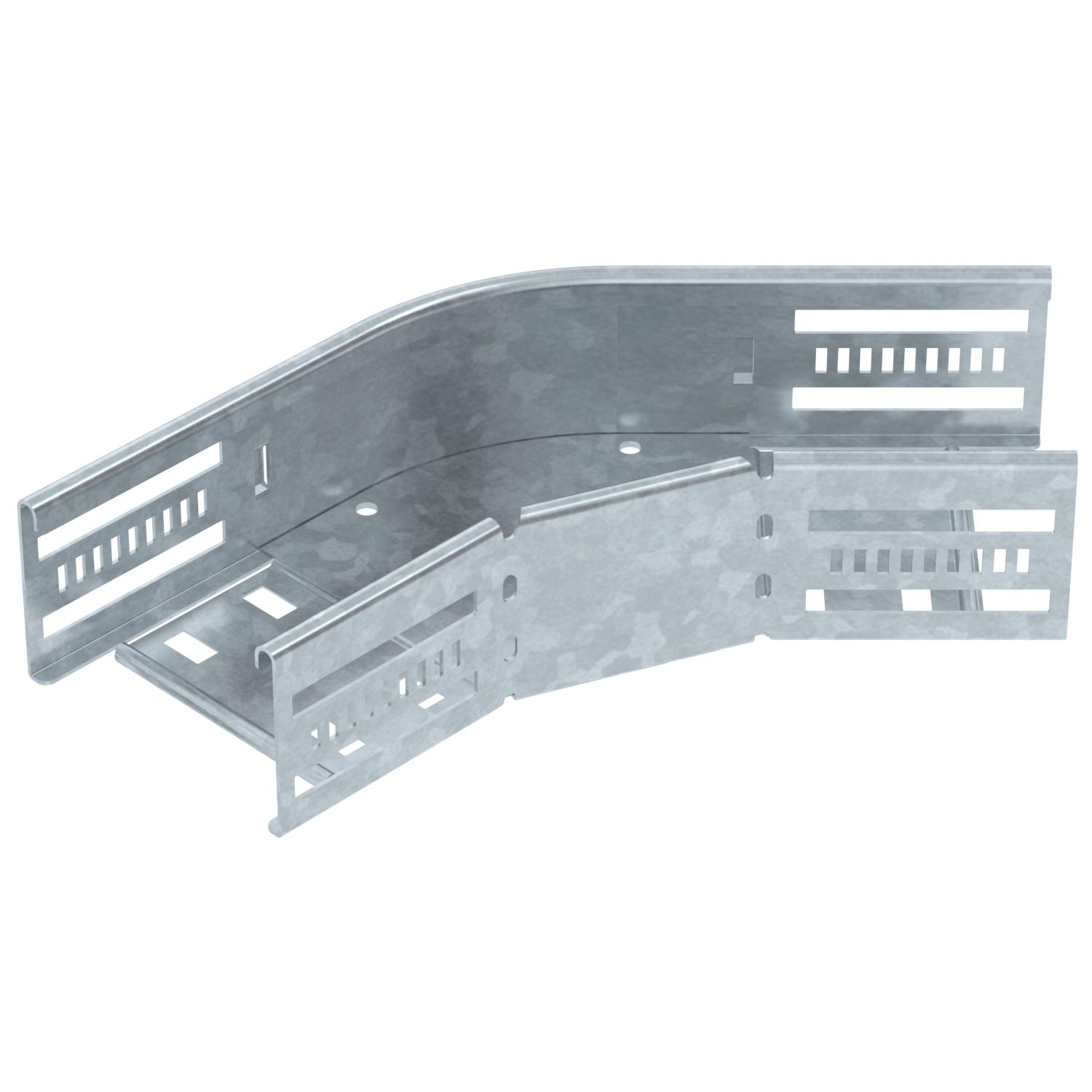

45° bend for the creation of a horizontal branch, fitting for lock and screw-on cable trays of side height 60 mm. Screwless mounting with double clamps or screw connection with FRS truss-head screws and M6 combination nuts. Can be used indoors and outdoors. Fastening material must be ordered separately.

Technical data

Technical data

Bend (angle)	45°
Change of direction	Horizontal
CO2 Footprint (GWP) Cradle-to-Gate	1,5373 kg CO2e / 1 Piece
Colour	zinc
Connector version	Integrated connector
Dimension	60x100
Dimension B	100 mm
Height	60 mm
Maintain electrical functions	yes
Material	Steel
Material thickness, floor plate	0,8 mm
Mounting perforation in base	yes
NATO hole pattern	no

Permitted temperature range, max.	120 °C
Permitted temperature range, min.	-20 °C
Plate thickness	0,8 mm
Rail thickness	1,25 mm
Recommended quantity of bolts	10 St.
Rustproof steel, pickled	no
Side perforation	yes
Surface	Hot-dip galvanised
Type	Bend, rigid
Type of connector, cable support system	screwed/clamped
Wide-span version	no
Width	100 mm
With cover	no

All types

All types

Types	Width	Material	Surface	Colour	Item no.
RB 45 610 FT	100 mm	Steel	Hot-dip galvanised	zinc	6036130
RB 45 615 FT	150 mm	Steel	Hot-dip galvanised	zinc	6036132
RB 45 620 FT	200 mm	Steel	Hot-dip galvanised	zinc	6036134
RB 45 630 FT	300 mm	Steel	Hot-dip galvanised	zinc	6036136
RB 45 640 FT	400 mm	Steel	Hot-dip galvanised	zinc	6036138
RB 45 650 FT	500 mm	Steel	Hot-dip galvanised	zinc	6036140
RB 45 660 FT	600 mm	Steel	Hot-dip galvanised	zinc	6036142
