Cover, 45° bend DD
Item no. 6036450 | EAN 4012197406530
- Product description
-

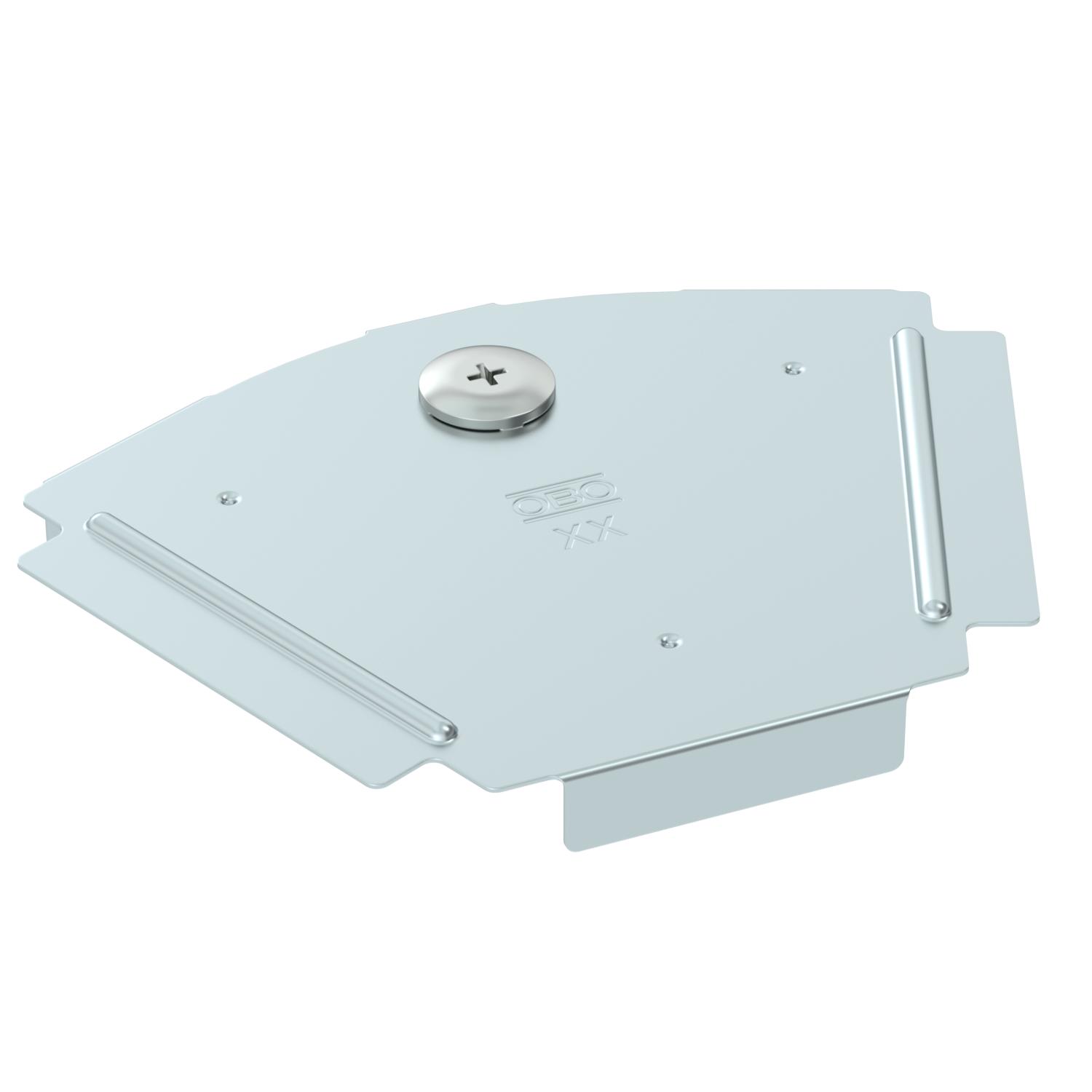

Product descriptionCover for 45° bend fitting for lockable and screw-on cable trays in indoor and outdoor areas, to protect cables against damage and soiling. Fastening with pre-mounted sash lock and through attachment of the section cover. Suitable for all side heights.
-
- Technical data
-
Technical data

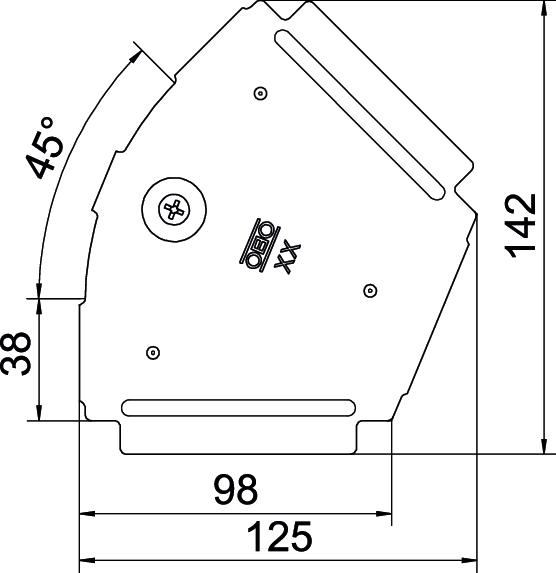

Bend (angle) 45° Change of direction Horizontal CO2 Footprint (GWP) Cradle-to-Gate 0,7702 kg CO2e / 1 Piece Colour zinc Dimension B100mm Dimension B 100 mm Fastening type Sash lock Hinged no Length 125 mm Maintain electrical functions no Material Steel Number of turn buckles 1 St. Permitted temperature range, max. 120 °C Permitted temperature range, min. -20 °C Plate thickness 0,75 mm Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray yes Suitable for mesh cable tray no Surface Strip galvanised zinc/aluminium, Double Dip Width 100 mm - All types
