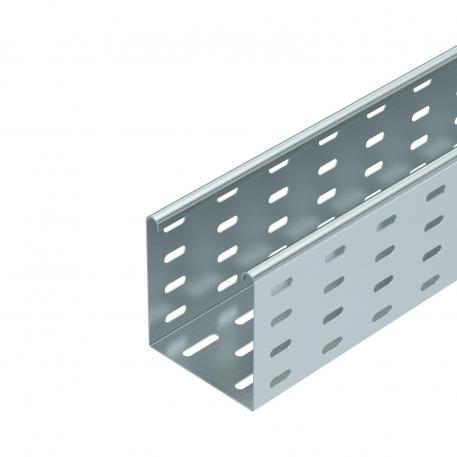

Cable tray MKS 110 FS

Item no. 6060102 | EAN 4012196061815

3000 mm
1 mm
no
Steel
Strip galvanized
Product description
Product description
MKS 110 = medium-duty cable tray system with a side height of 110 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
  • Underwriters Laboratories Inc., USA & Canada
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate 6,8351 kg CO₂e / 1 Meter
Colour zinc
Connector version Supplied connectors

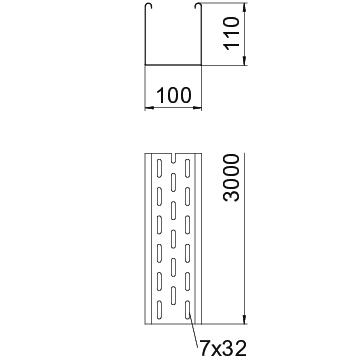

Dimension 110 x 100
Dimension 110x100x3000
Height 4 in
Height 110 mm
Length 10 ft
Length 3000 mm
Load test type according to IEC 61537 Type II
Maintain electrical functions no
Maß W 100 mm
Material Steel
Mounting perforation in base yes
NATO hole pattern no
Plate thickness 0,04 in
Plate thickness 1 mm
Rustproof steel, pickled no
Side perforation yes
Support spacing 1.5 m 1,85 kN/m
Support spacing 2.0 m 1,3 kN/m
Support spacing 2.5 m 0,75 kN/m
Support spacing 3.0 m 0,6 kN/m
Surface Strip galvanized
Type of connector, cable support system Screwed
Usable cross-section 108 cm²
Usable cross-section 10800 mm²
Wide-span version no
Width 4 in
Width 100 mm
With cover no

Technical data

Load diagram, cable tray, type MKS 110

Load diagram, cable tray, type MKS 110
  • Permitted cable tray/ladder load in kN/m without man load Permitted cable tray/ladder load in kN/m without man load
  • Support width in m Support width in m
  • Rail bend in mm at permitted kN/m Rail bend in mm at permitted kN/m
  • Load scheme during testing Load scheme during testing
  • Load curve with cable tray/ladder width in mm Load curve with cable tray/ladder width in mm
  • Strut bend curve according to support width Strut bend curve according to support width
All types

All types

Types Length Width Plate thickness Maintain electrical functions Material Surface Item no.
MKS 110 FS 3000 mm 100 mm 1 mm no Steel Strip galvanized 6060102
MKS 120 FS 3000 mm 200 mm 1 mm no Steel Strip galvanized 6060196

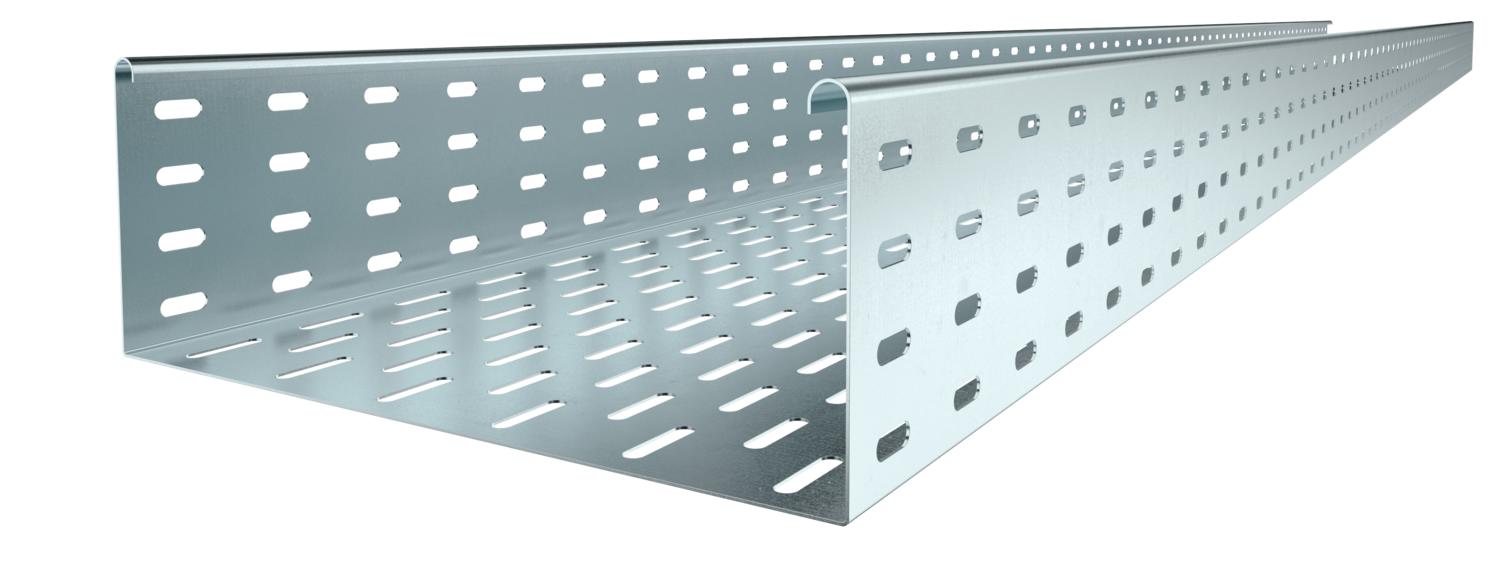

MKS 130 FS 3000 mm 300 mm 1 mm no Steel Strip galvanized 6060307
MKS 140 FS 3000 mm 400 mm 1 mm no Steel Strip galvanized 6060404
MKS 150 FS 3000 mm 500 mm 1 mm no Steel Strip galvanized 6060412
MKS 160 FS 3000 mm 600 mm 1 mm no Steel Strip galvanized 6060529
Accessories

System accessories

Products Types Item no.
Straight and angle connector 110 FS Straight and angle connector 110 FS RLVL 110 FS 6067131
Joint plate FS Joint plate FS SSLB 100 FS 7070205
45° bend 110 FS 45° bend 110 FS RB 45 110 FS 6036300
90° bend 110 FS 90° bend 110 FS RB 90 110 FS 6036800
Bend, angle-adjustable, 110 FS Bend, angle-adjustable, 110 FS RB W 110 FS 6037300
Add-on tee 110 FS Add-on tee 110 FS RAA 110 FS 6042151
T piece 110 FS T piece 110 FS RT 110 FS 6038300
Cross-over 110 FS Cross-over 110 FS RK 110 FS 7027351
Cover with turn buckle FS Cover with turn buckle FS DRL 100 FS 6052096
Separating retainer 110 FS Separating retainer 110 FS TSG 110 FS 6062122
45° bend 110 FS 45° bend 110 FS RB 45 110 FS 7000634
