45° bend 110 FS
Item no. 7000634 | EAN 4012196818594
- Product description
-

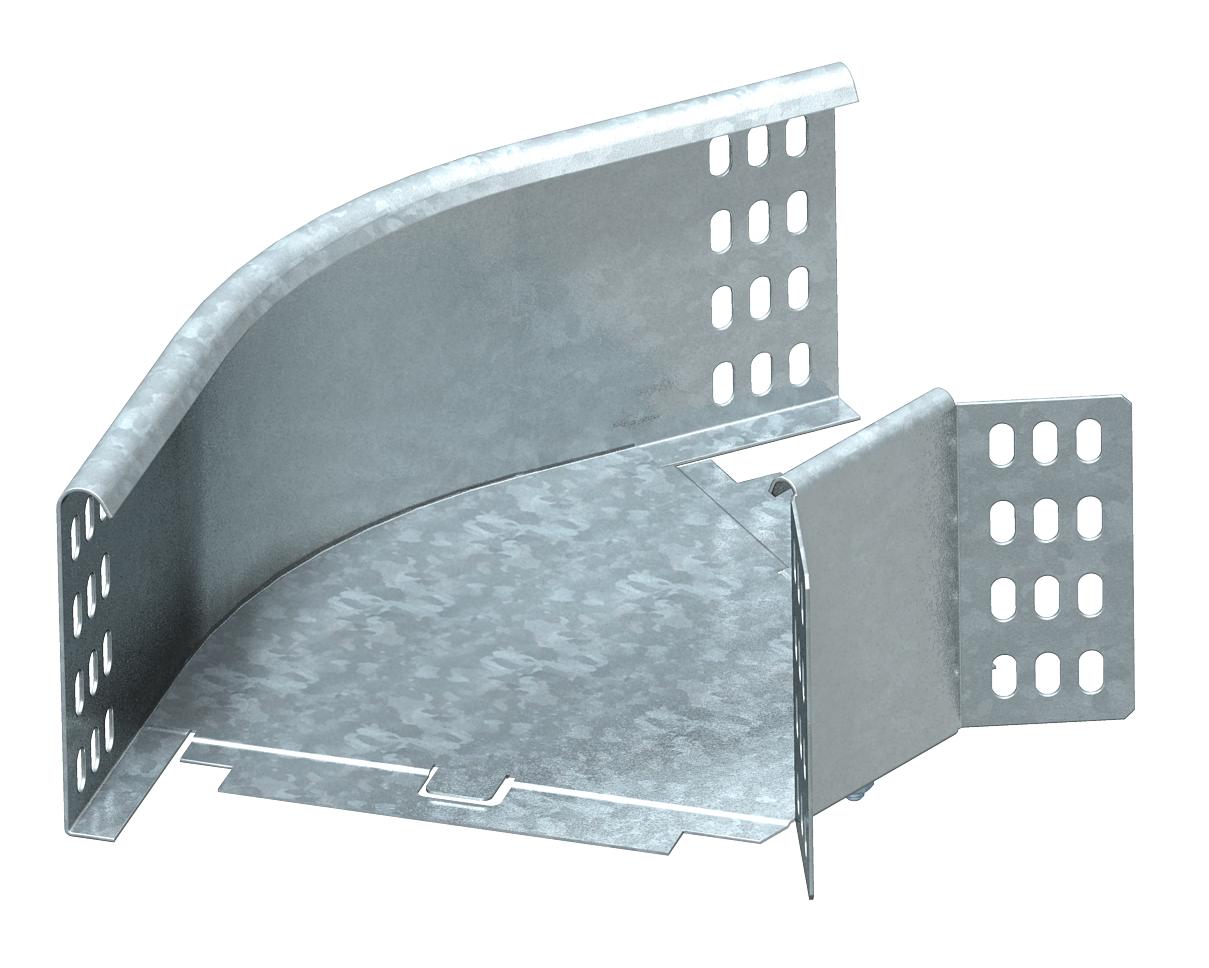

Product description45° bend, horizontal, for all cable tray types of 110 mm side height.
-
- Technical data
-
Technical data

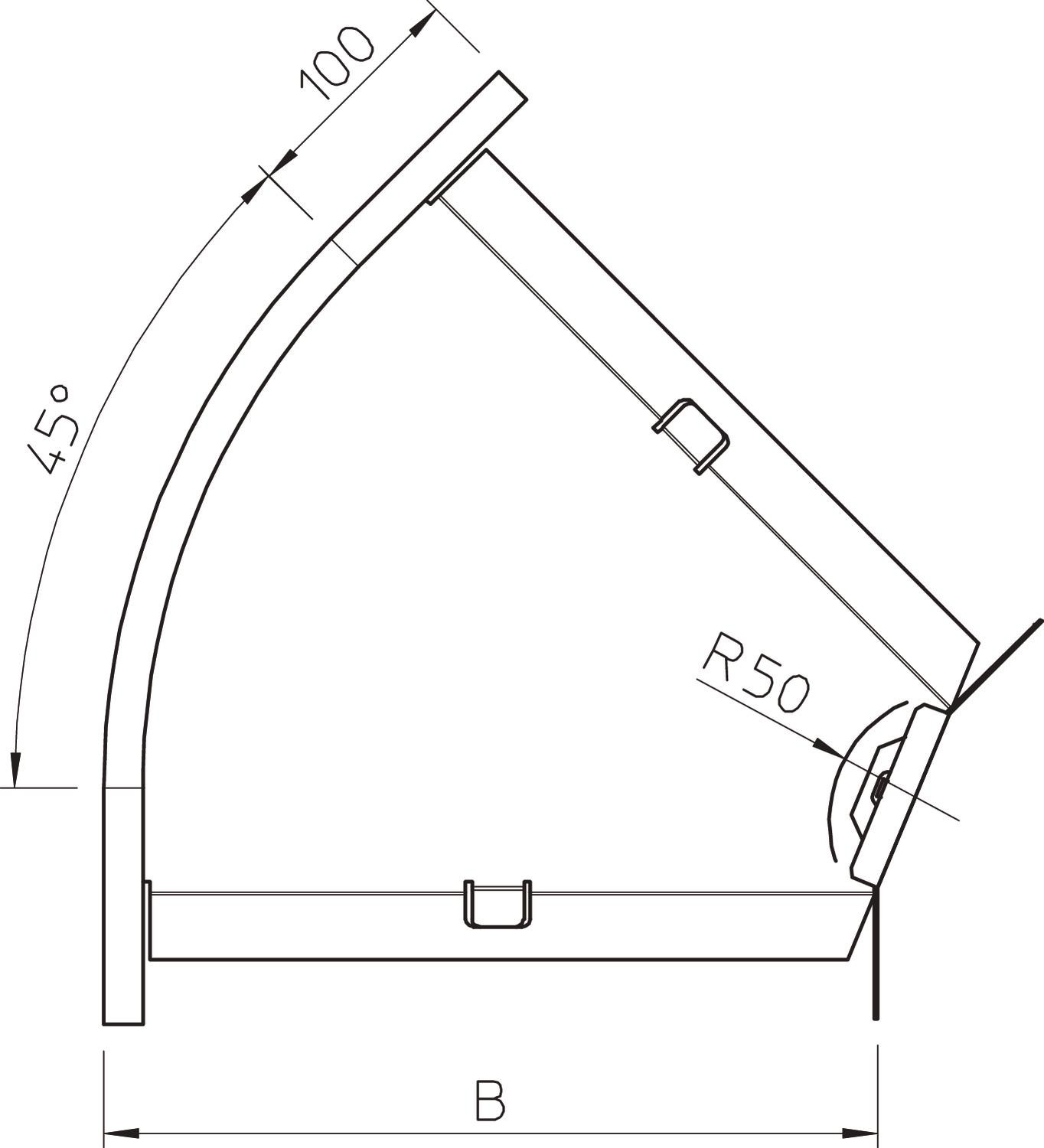

Bend (angle) 45° Change of direction Horizontal Colour zinc Connector version Supplied connectors Dimension 110x100 Dimension B 100 mm Dimension R 50 mm Height 4 in Height 110 mm Maintain electrical functions no Material Steel Mounting perforation in base no NATO hole pattern no Rustproof steel, pickled no Side perforation no Surface Strip galvanized Type of connector, cable support system Screwed Wide-span version no Width 4 in Width 100 mm - All types
-
Mounting accessories
Products Types Item no.
Truss-head bolt with flange nut F
FRSB 6x12 F 6406122 - Downloads
-
Data sheet RB 45 110 FS / 7000634 , 0.18MB , pdfEU declaration of conformity RB 45 110 FS / 7000634 , 0.10MB , pdfREACH Declaration of conformity RB 45 110 FS / 7000634 , 0.12MB , pdfRoHS Declaration of conformity RB 45 110 FS / 7000634 , 0.12MB , pdfMounting instructions General information on the mounting , 2.65MB , pdfMounting instructions Mounting instructions Screw-on cable tray systems , 9.41MB , pdf
