90° bend 110 FS
Item no. 6036800 | EAN 4012197343569
- Product description
-

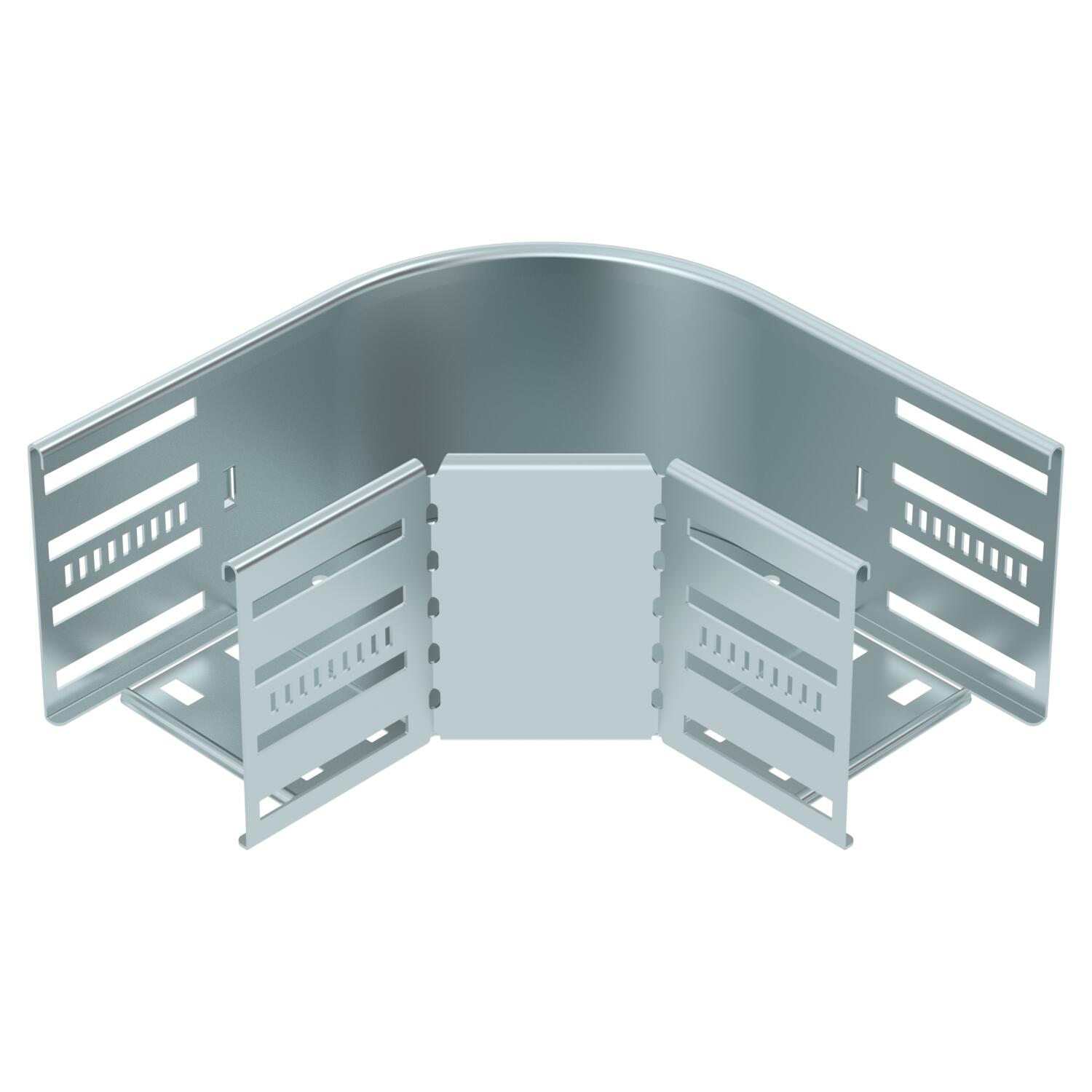

Product description90° bend for the creation of a horizontal branch, fitting for lock and screw-on cable trays of side height 110 mm. Screwless mounting with double clamps or screw connection with FRS truss-head screws and M6 combination nuts. Can be used in indoor areas. Fastening material must be ordered separately.
-
- Technical data
-
Technical data

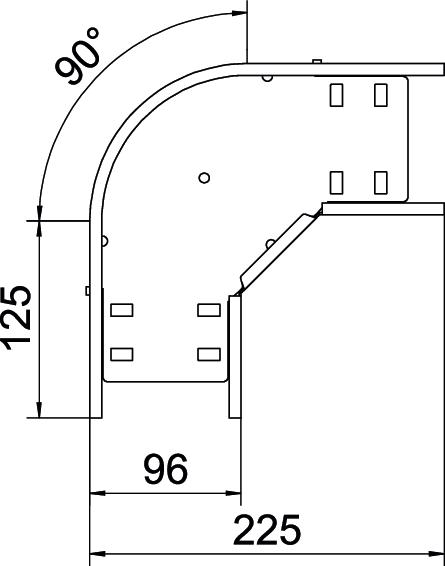

Bend (angle) 90° Change of direction Horizontal CO2 Footprint (GWP) Cradle-to-Gate 2,7528 kg CO2e / 1 Piece Colour zinc Connector version Integrated connector Dimension 110x100 Dimension B 100 mm Dimension R 50 mm Height 110 mm Maintain electrical functions no Material Steel Material thickness, floor plate 0,8 mm Mounting perforation in base yes NATO hole pattern no Permitted temperature range, max. 120 °C Permitted temperature range, min. -20 °C Plate thickness 0,8 mm Rail thickness 1,25 mm Recommended quantity of bolts 18 St. Rustproof steel, pickled no Side perforation yes Surface Strip galvanized Type Bend, rigid Type of connector, cable support system screwed/clamped Wide-span version no Width 100 mm With cover no - All types
-
All types
-
System accessories
Products Types Item no.
Cover, 90° bend FS
RBD 90 100 FS 6036900 Mounting accessories
Products Types Item no.
Double clamp, fitting mounting A2
DOP A2 6035998 - Downloads
-
