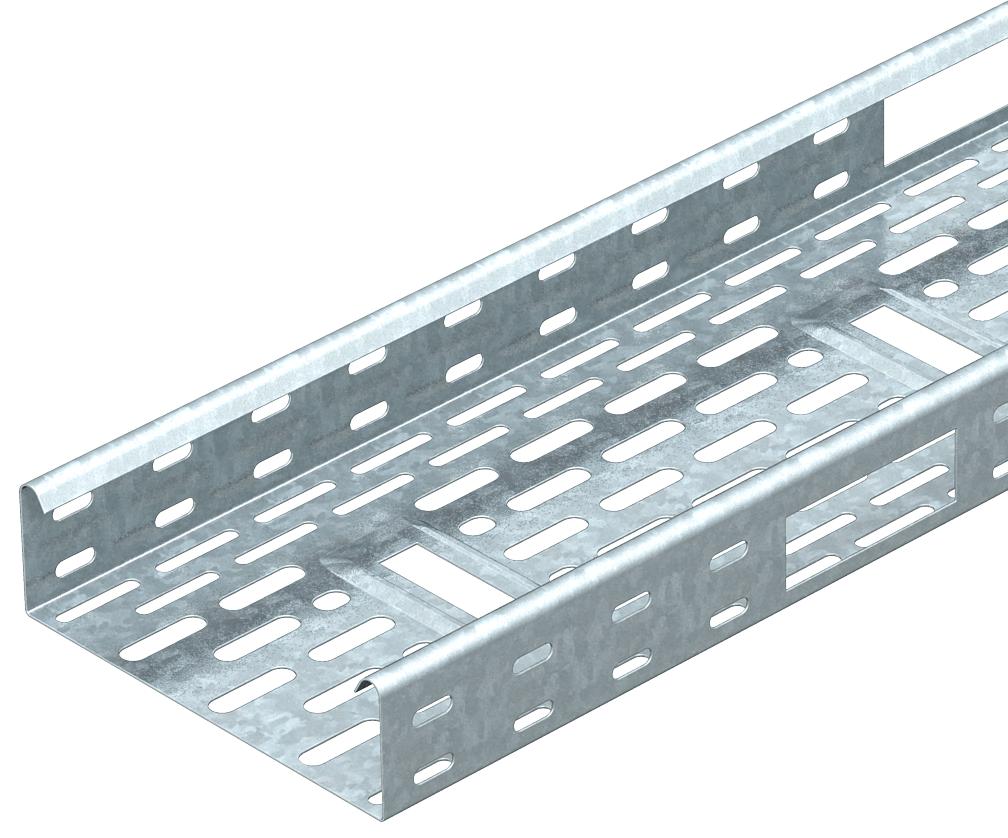

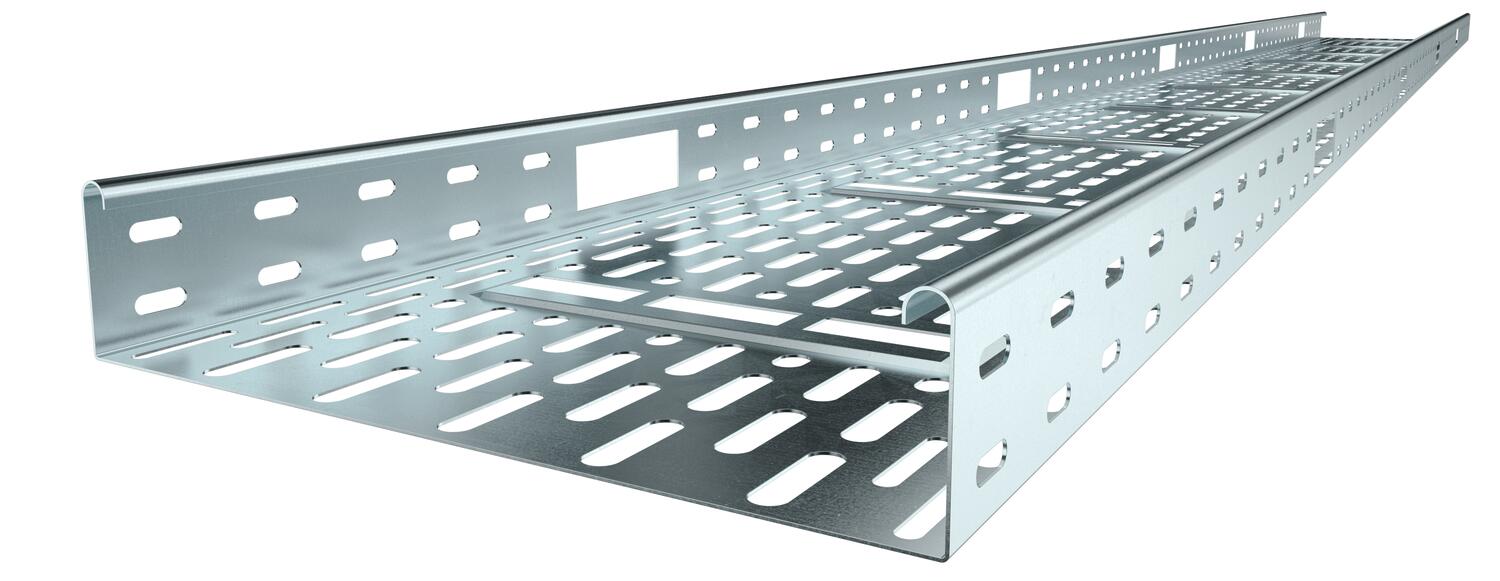

Cable tray IKS 60 FS

Item no. 6087116 | EAN 4012196168439

3000 mm
no
Steel
Strip galvanized
Product description
Product description
IKS 60 = installation cable tray system with 60 mm side height.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate 4,4545 kg CO₂e / 1 Meter
Colour zinc
Connector version Without connectors

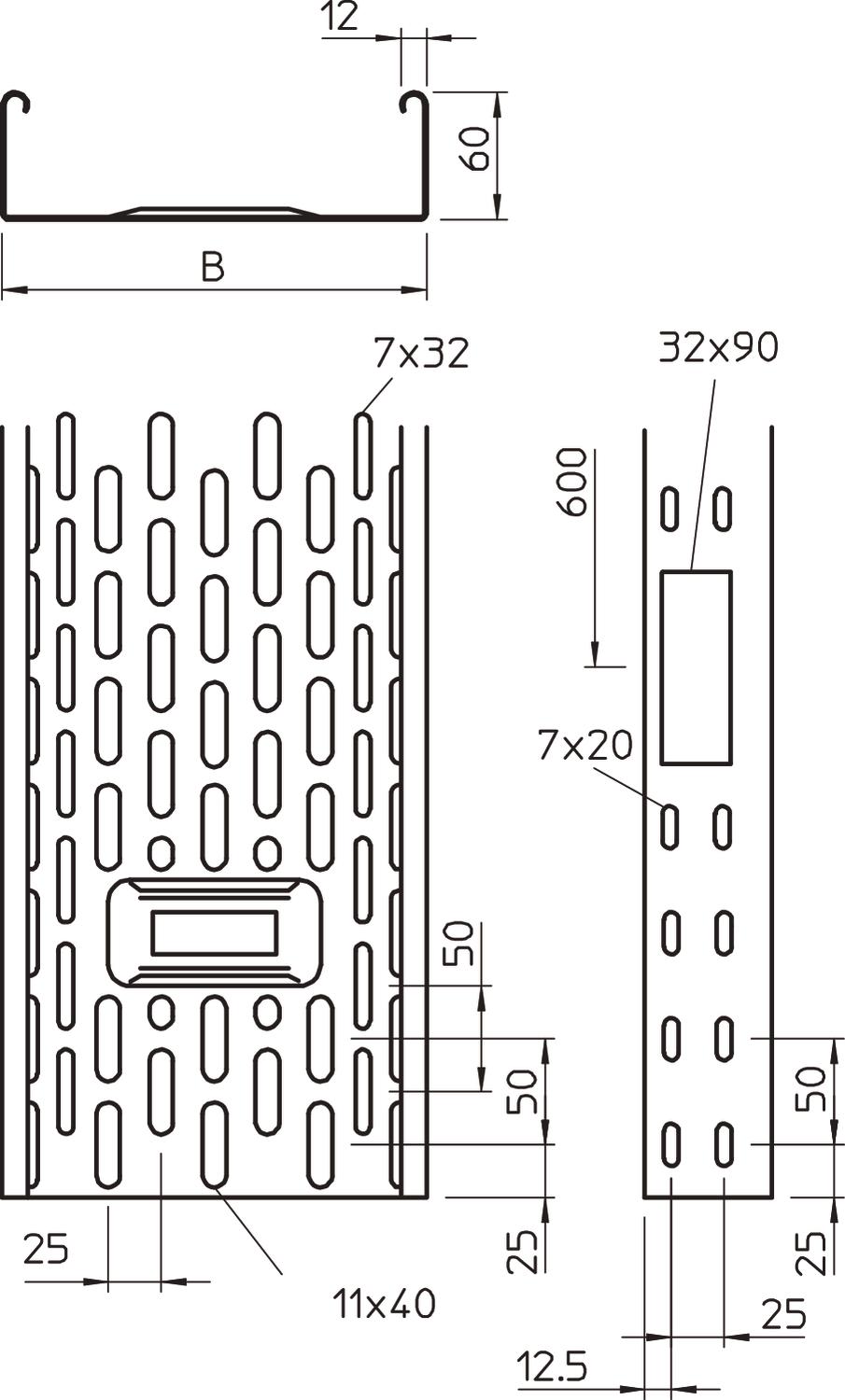

Dimension 60x100x3000
Dimension 60 x 100
Dimension B 100 mm
Height 60 mm
Height 2 in
Length 3000 mm
Length 10 ft
Load test type according to IEC 61537 Type II
Maintain electrical functions no
Material Steel
Mounting perforation in base yes
NATO hole pattern no
Plate thickness 1 mm
Plate thickness 0,04 in
Rustproof steel, pickled no
Side perforation yes
Sprinkler system use yes
Support spacing 1.0 m 0,9 kN/m
Support spacing 1.5 m 0,9 kN/m
Support spacing 2.0 m 0,7 kN/m
Support spacing 2.5 m 0,45 kN/m
Surface Strip galvanized
Type of connector, cable support system Screwed
Usable cross-section 5800 mm²
Usable cross-section 58 cm²
Wide-span version no
Width 4 in
Width 100 mm
With cover no

Technical data

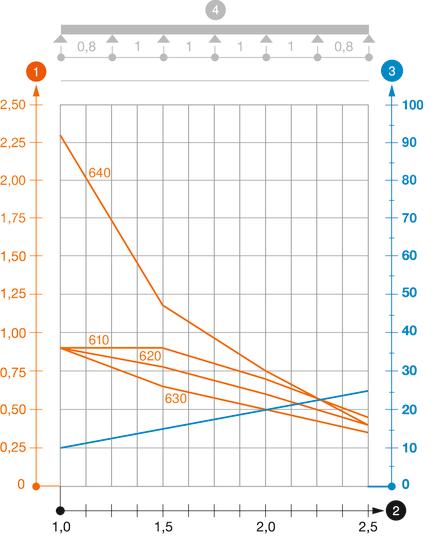

Load diagram, cable tray, type IKS 60

Load diagram, cable tray, type IKS 60
  • Permitted cable tray/ladder load in kN/m without man load Permitted cable tray/ladder load in kN/m without man load
  • Support width in m Support width in m
  • Rail bend in mm at permitted kN/m Rail bend in mm at permitted kN/m
  • Load scheme during testing Load scheme during testing
  • Load curve with cable tray/ladder width in mm Load curve with cable tray/ladder width in mm
  • Strut bend curve according to support width Strut bend curve according to support width
All types

All types

Types Length Width Plate thickness Maintain electrical functions Material Surface Item no.
IKS 610 FS 3000 mm 100 mm 1 mm no Steel Strip galvanized 6087116
IKS 620 FS 3000 mm 200 mm 1 mm no Steel Strip galvanized 6087132
IKS 630 FS 3000 mm 300 mm 1 mm no Steel Strip galvanized 6087140
IKS 640 FS 3000 mm 400 mm 1.5 mm no Steel Strip galvanized 6087159
Accessories

System accessories

Products Types Item no.
Straight connector FT Straight connector FT RLVK 60 FT 6067603
Joint plate DD Joint plate DD SSLB 100 DD 7070306
45° bend 60 FT 45° bend 60 FT RB 45 610 FT 6036130
90° bend 60 FT 90° bend 60 FT RB 90 610 FT 6036590
Bend, angle-adjustable, 60 FT Bend, angle-adjustable, 60 FT RB W 610 FT 6037120
Add-on tee 60 FT Add-on tee 60 FT RAA 610 FT 6042211
T piece 60 FT T piece 60 FT RT 610 FT 6038130
Cross-over 60 FT Cross-over 60 FT RK 610 FT 7027411
Cover with turn buckle DD Cover with turn buckle DD DRL 100 DD 6052703
Barrier strip 60 DD Barrier strip 60 DD TSG 60 DD 6062327
90° bend 60 FS 90° bend 60 FS RB 90 610 FS 6043216
