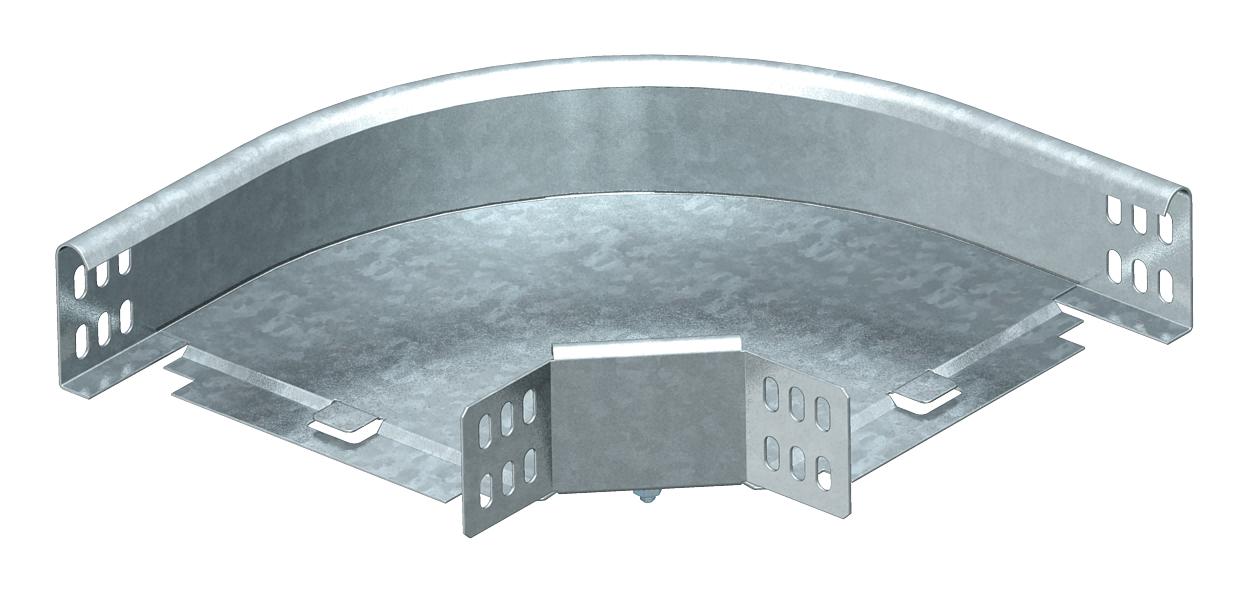

90° bend 60 FS
Item no. 6043216 | EAN 4012196050475
- Product description
-
Product description90° bend, horizontal, for all cable tray types of 60 mm side height.
-
- Technical data
-
Technical data

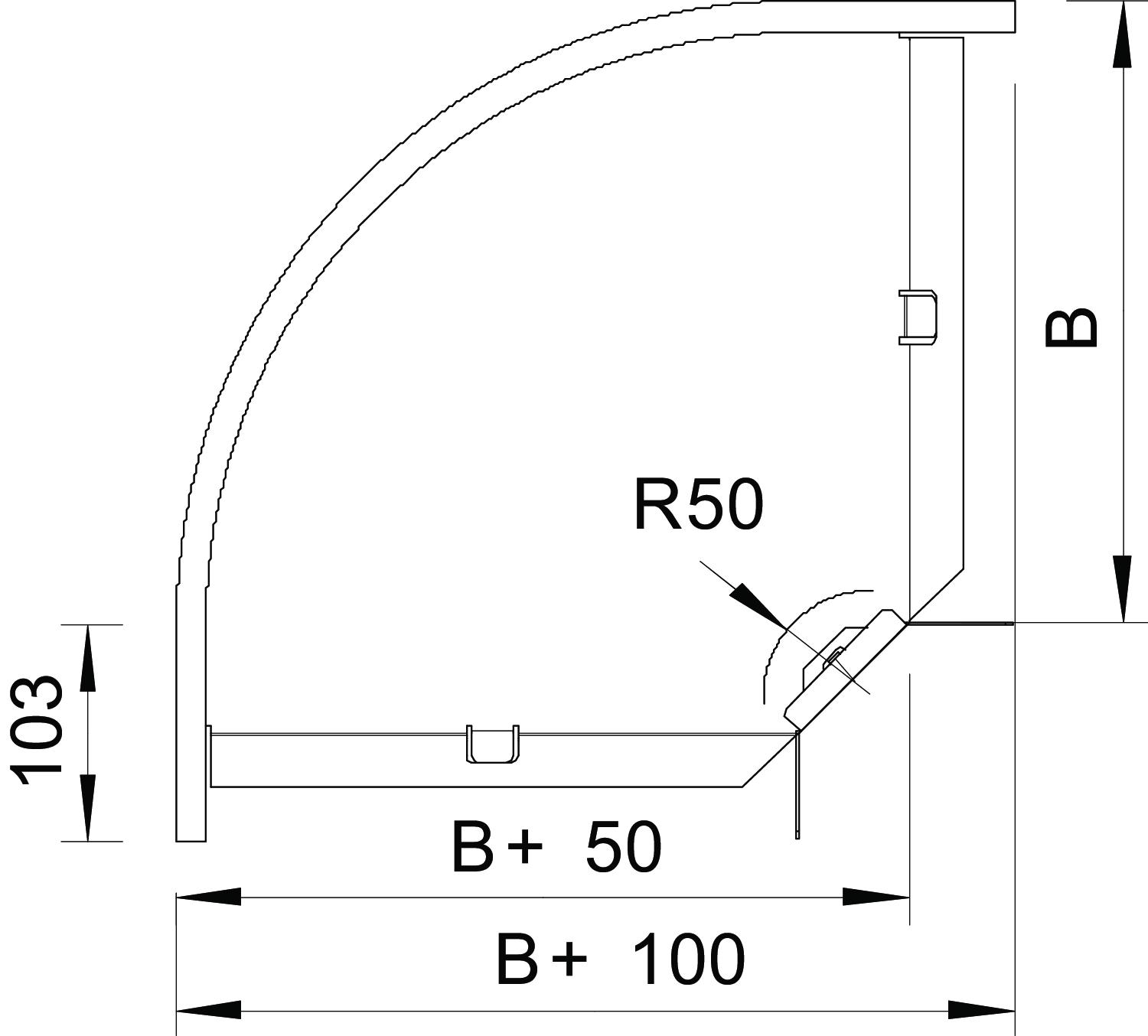

Bend (angle) 90° Change of direction Horizontal CO2 Footprint (GWP) Cradle-to-Gate 2,2335 kg CO2e / 1 Piece Colour zinc Connector version Supplied connectors Dimension 60x100 Dimension B 100 mm Dimension R 50 mm Height 2 in Height 60 mm Maintain electrical functions yes Material Steel Mounting perforation in base no NATO hole pattern no Rustproof steel, pickled no Side perforation no Surface Strip galvanized Type of connector, cable support system Screwed Wide-span version no Width 4 in Width 100 mm - All types
- Downloads
-
Data sheet RB 90 610 FS / 6043216 , 0.20MB , pdfCatalogue Cable support systems , 54.52MB , pdfEU declaration of conformity RB 90 610 FS / 6043216 , 0.10MB , pdfREACH Declaration of conformity RB 90 610 FS / 6043216 , 0.12MB , pdfRoHS Declaration of conformity RB 90 610 FS / 6043216 , 0.12MB , pdfMounting instructions General information on the mounting , 2.65MB , pdfMounting instructions Mounting instructions Screw-on cable tray systems , 9.41MB , pdf
