Cable ladder with Z rung, standard FT 3000 | 150 | 5 | no

Cable ladder with Z rung, standard FT

Item no. 7098133 | EAN 4012196046423

Item no. / Types

Length	3000 mm

Width

Rail thickness	5 mm

Maintain electrical functions	no

Product description

Product description

Shipbuilding cable ladder with perforated side rail of side height 40 mm with welded, perforated Z rungs. Load tested according to IEC in conjunction with connector, type SLV.

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	8,4947 kg CO₂e / 1 Meter
Colour	zinc

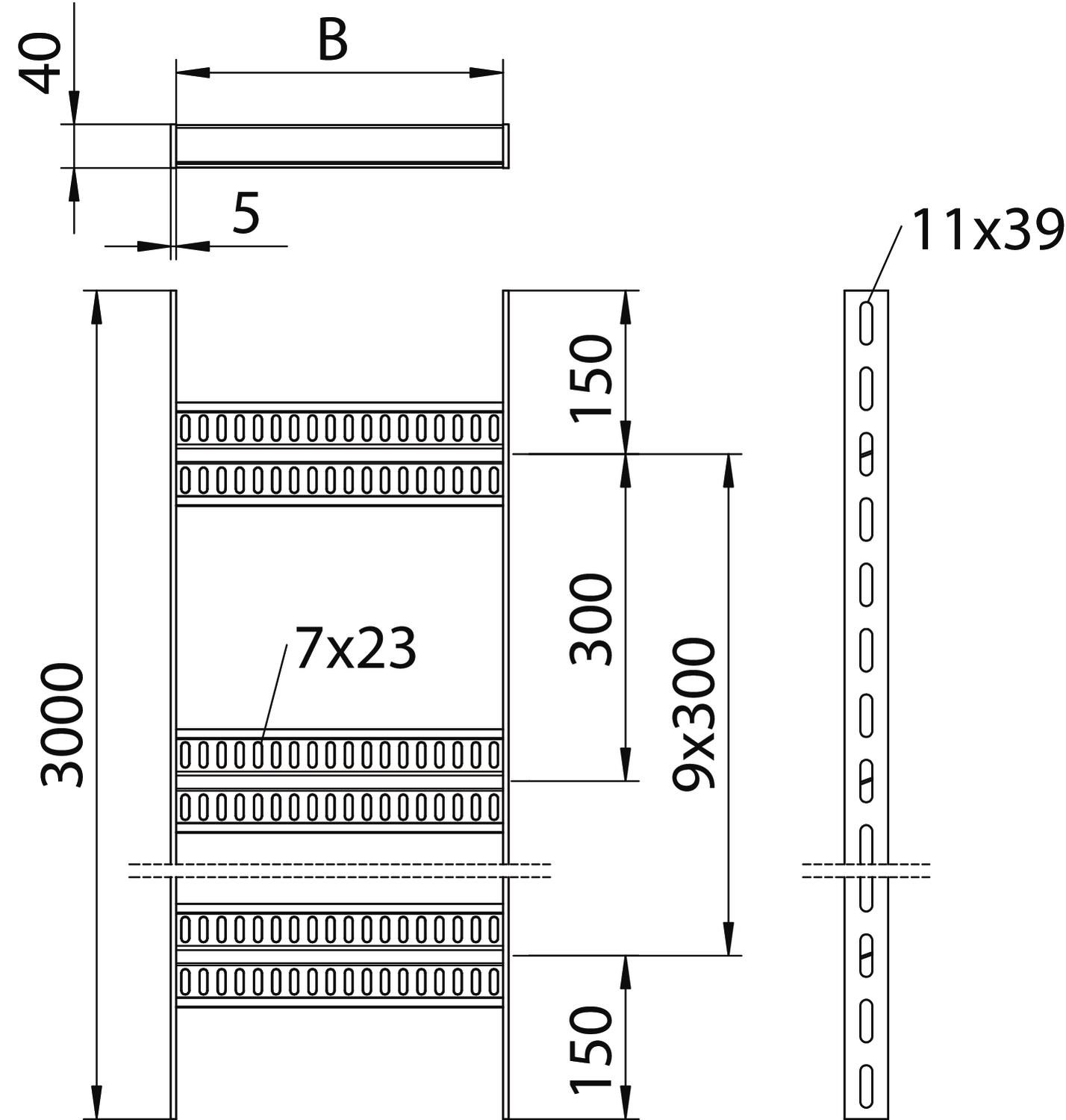

Dimension	40x160x3000
Dimension	40x150
Dimension B	160 mm
Fastening of rung	Welded
Height	40 mm
Length	3000 mm
Maintain electrical functions	no
Material	Steel
Rail thickness	5 mm
Rung distance	300 mm

Rustproof steel, pickled	no
Side perforation	yes
Side rail version	Flat profile
Support spacing 1.5 m	2,8 kN/m
Support spacing 2.0 m	1,75 kN/m
Support spacing 2.5 m	1 kN/m
Support spacing 3.0 m	0,6 kN/m
Surface	Hot-dip galvanised
Version of the rungs	Profile perforated
Wide-span version	no
Width	150 mm

Technical data

Load diagram, cable ladder, type SLZ

Permitted cable tray/ladder load in kN/m without man load
Support width in m
Rail bend in mm at permitted kN/m
Load curve with cable tray/ladder width in mm
Strut bend curve according to support width
Load scheme during testing

All types

All types

Types	Length	Width	Rail thickness	Maintain electrical functions	Item no.
SLZ 100 FT	3000 mm	100 mm	5 mm	no	7098132
SLZ 150 FT	3000 mm	150 mm	5 mm	no	7098133
SLZ 200 FT	3000 mm	200 mm	5 mm	no	7098134
SLZ 300 FT	3000 mm	300 mm	5 mm	no	7098136
SLZ 400 FT	3000 mm	400 mm	5 mm	no	7098138
SLZ 500 FT	3000 mm	500 mm	5 mm	no	7098140
SLZ 600 FT	3000 mm	600 mm	5 mm	no	7098142
