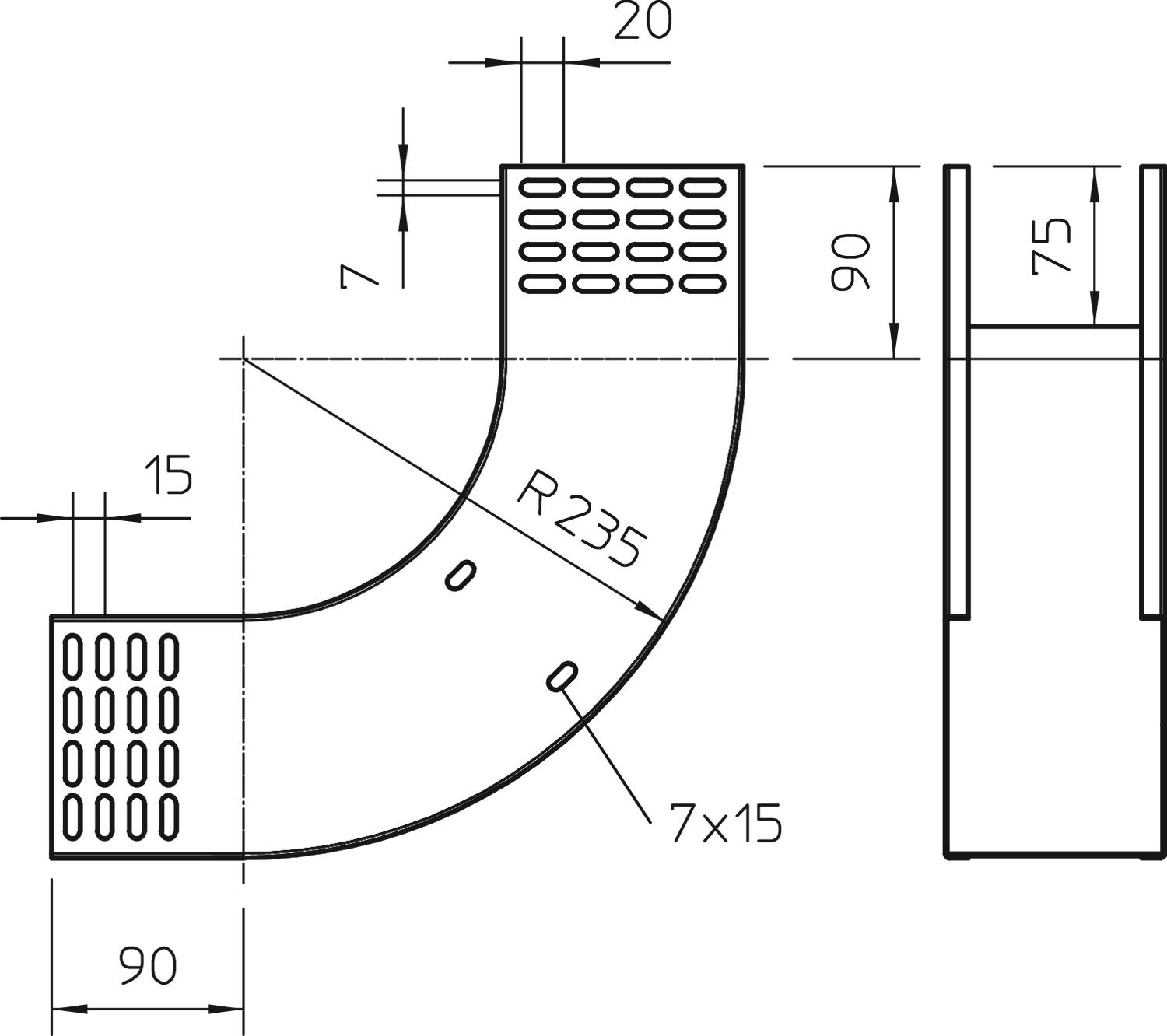

90° vertical bend, rising, 110 FS
Item no. 7007322 | EAN 4012195711766
- Product description
-
Product description90° rising vertical bend, for all cable tray types of 110 mm side height.
-
- Technical data
-
Technical data
Bend (angle) 90° Change of direction Vertical rising Colour zinc Connector version Without connectors Dimension 110x400 Dimension B 400 mm Height 110 mm Height 4 in Maintain electrical functions no Material Steel Mounting perforation in base no NATO hole pattern no Plate thickness 1 mm Rustproof steel, pickled no Side perforation no Surface Strip galvanized Type of connector, cable support system Screwed Wide-span version no Width 16 in Width 400 mm - All types
-
All types
-
Mounting accessories
Products Types Item no.
Truss-head bolt with flange nut F
FRSB 6x12 F 6406122 - Downloads
-
Data sheet RBV 140 S FS / 7007322 , 0.22MB , pdfEU declaration of conformity RBV 140 S FS / 7007322 , 0.10MB , pdfUK Declaration of Conformity RBV 140 S FS / 7007322 , 0.09MB , pdfREACH Declaration of conformity RBV 140 S FS / 7007322 , 0.12MB , pdfRoHS Declaration of conformity RBV 140 S FS / 7007322 , 0.12MB , pdfMounting instructions General information on the mounting , 2.65MB , pdfMounting instructions Mounting instructions Screw-on cable tray systems , 9.41MB , pdf
