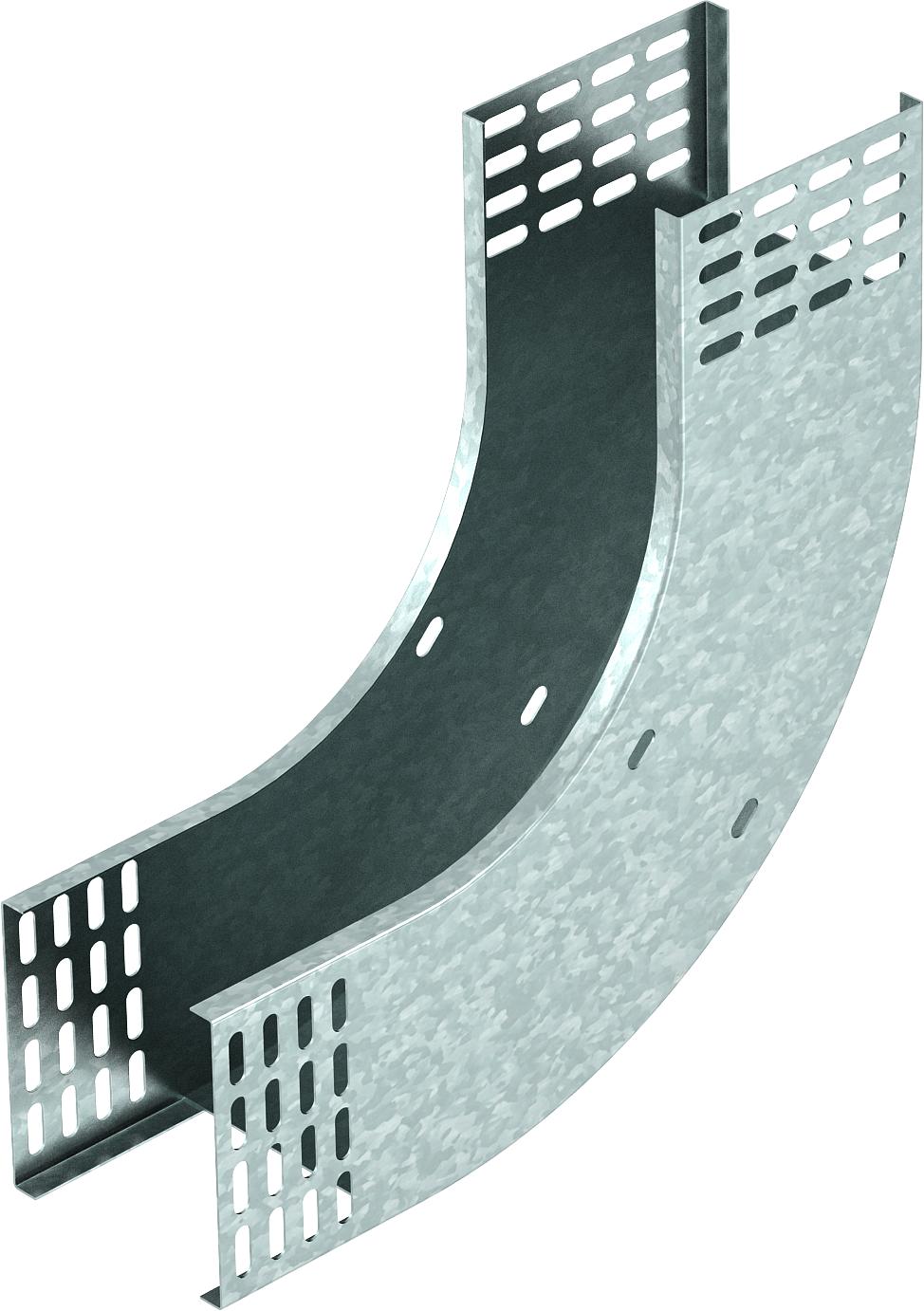

90° vertical bend, rising, 110 FS
Item no. 7007310 | EAN 4012195711711
- Product description
-
Product description90° rising vertical bend, for all cable tray types of 110 mm side height.
-
- Technical data
-
Technical data
Bend (angle) 90° Change of direction Vertical rising CO2 Footprint (GWP) Cradle-to-Gate 4,7966 kg CO₂e / 1 Piece Colour zinc Connector version Without connectors Dimension 110x100 Dimension B 100 mm Height 4 in Height 110 mm Maintain electrical functions no Material Steel Mounting perforation in base no NATO hole pattern no Plate thickness 1 mm Rustproof steel, pickled no Side perforation no Surface Strip galvanized Type of connector, cable support system Screwed Wide-span version no Width 4 in Width 100 mm - All types
-
All types
-
Mounting accessories
Products Types Item no.
Truss-head bolt with flange nut F
FRSB 6x12 F 6406122 - Downloads
-
Data sheet RBV 110 S FS / 7007310 , 0.22MB , pdfEU declaration of conformity RBV 110 S FS / 7007310 , 0.10MB , pdfUK Declaration of Conformity RBV 110 S FS / 7007310 , 0.09MB , pdfREACH Declaration of conformity RBV 110 S FS / 7007310 , 0.12MB , pdfRoHS Declaration of conformity RBV 110 S FS / 7007310 , 0.12MB , pdfMounting instructions General information on the mounting , 2.65MB , pdfMounting instructions Mounting instructions Screw-on cable tray systems , 9.41MB , pdf
