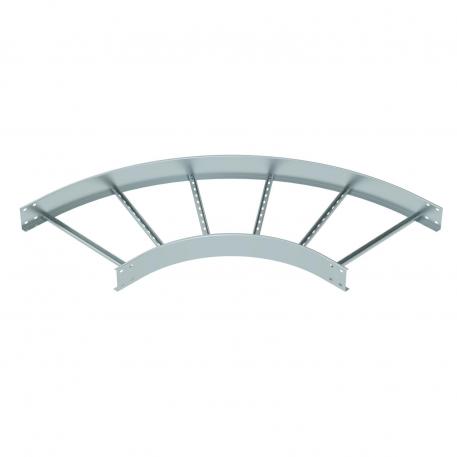

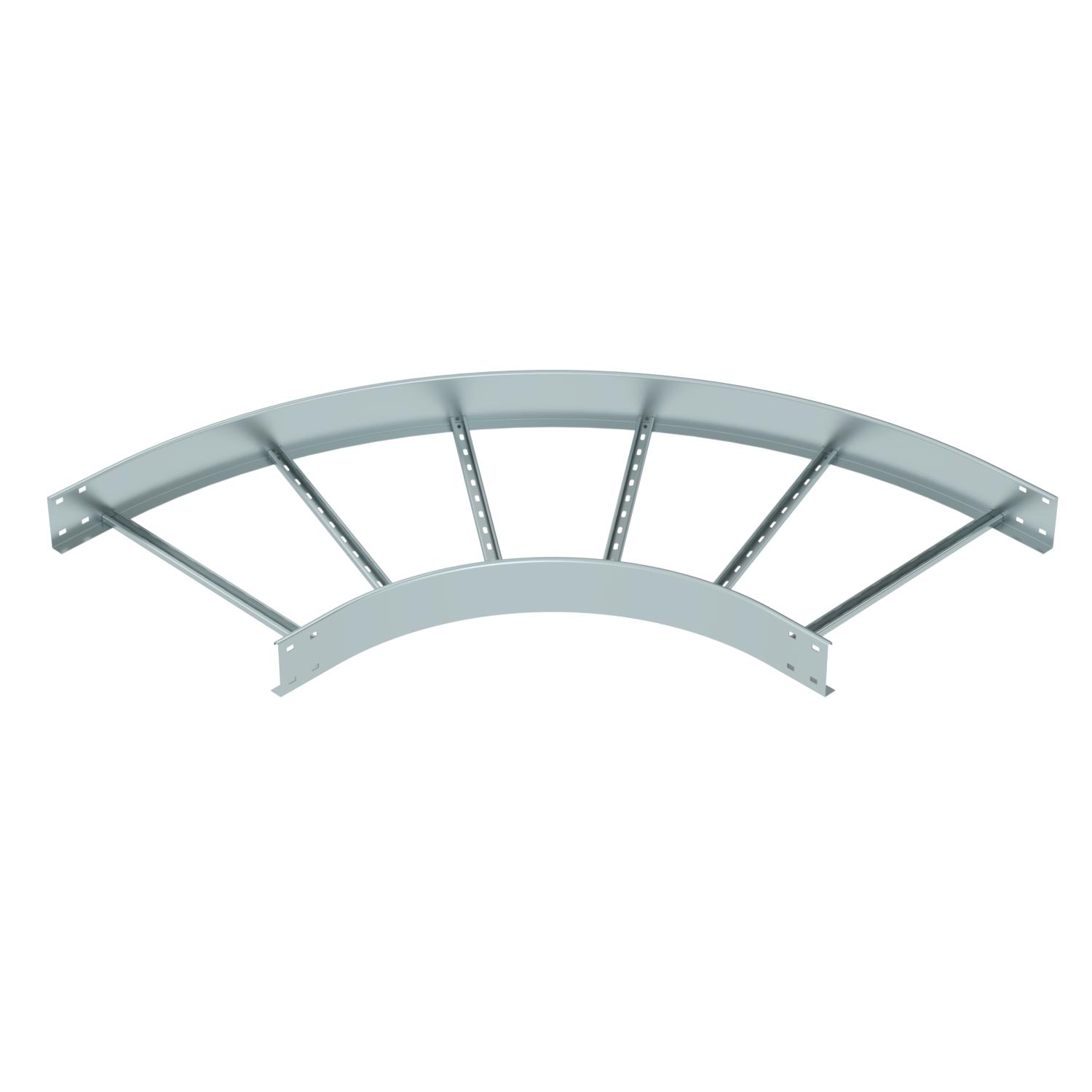

90° bend 110 FS
Item no. 6217690 | EAN 4012196685172
- Product description
-
Product description90° bend, horizontal, for all wide span cable ladders of 110 mm side height.
-
- Technical data
-
Technical data

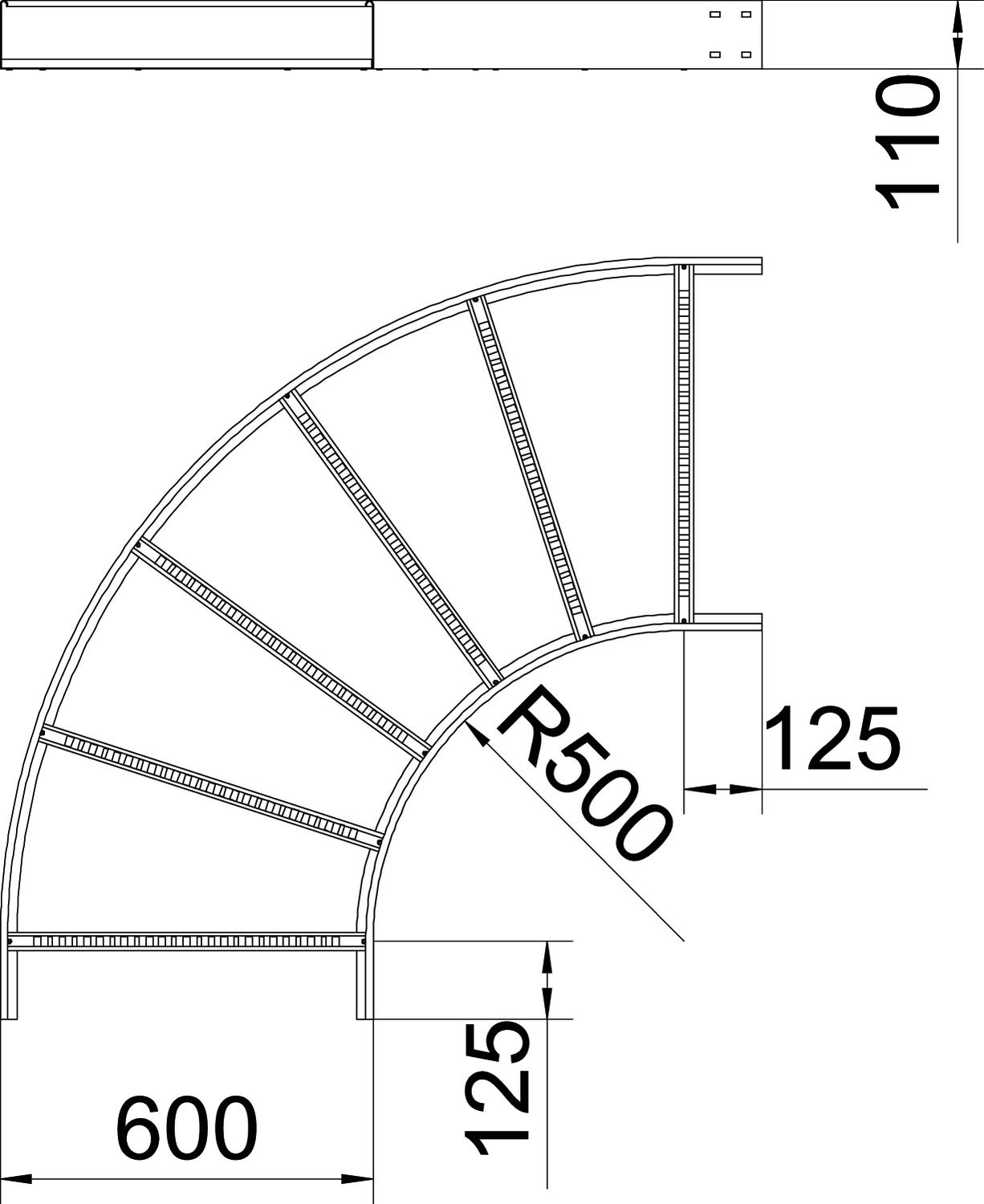

Bend (angle) 90° Change of direction Horizontal Colour zinc Dimension 110x600 Dimension B 600 mm Dimension R 600 mm Height 110 mm Maintain electrical functions no Material Steel Rustproof steel, pickled no Side perforation no Side rail version Flat profile Surface Strip galvanized Version of the rungs Profile unperforated Wide-span version no Width 600 mm - All types
-
Mounting accessories
Products Types Item no.
Straight connector FS
LVG 110 FS 6216545 - Downloads
-
