90° bend 110 FS
Item no. 6217686 | EAN 4012196685134
- Product description
-

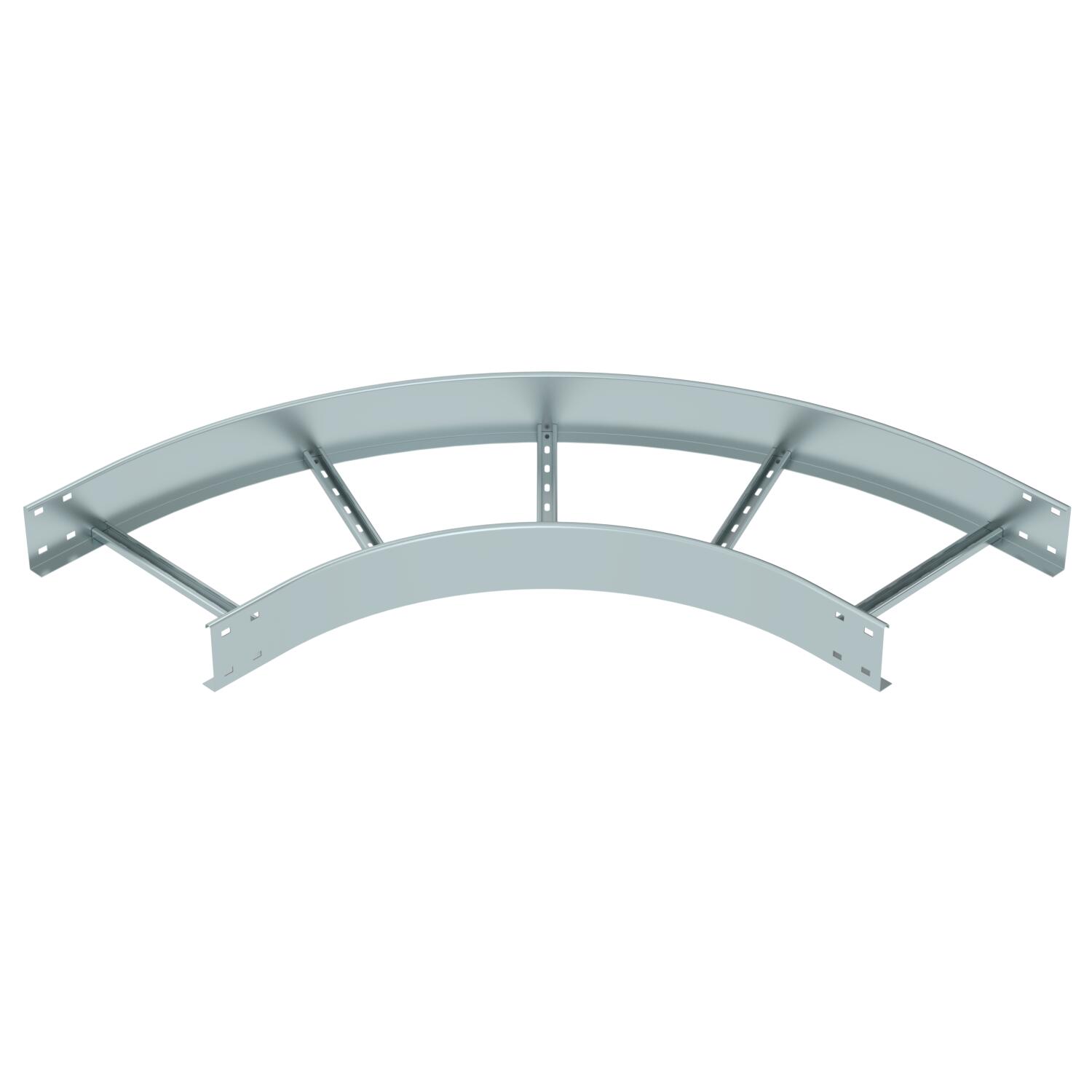

Product description90° bend, horizontal, for all wide span cable ladders of 110 mm side height.
-
- Technical data
-
Technical data
Bend (angle) 90° Change of direction Horizontal Colour zinc Dimension 110x400 Dimension B 400 mm Dimension R 400 mm Height 110 mm Maintain electrical functions no Material Steel Rustproof steel, pickled no Side perforation no Side rail version Flat profile Surface Strip galvanized Version of the rungs Profile unperforated Wide-span version no Width 400 mm - All types
-
Mounting accessories
Products Types Item no.
Straight connector FS
LVG 110 FS 6216545 - Downloads
-
Data sheet LB 90 1140 R5 FS / 6217686 , 0.23MB , pdfCatalogue Cable support systems , 54.52MB , pdfEU declaration of conformity LB 90 1140 R5 FS / 6217686 , 0.10MB , pdfUK Declaration of Conformity LB 90 1140 R5 FS / 6217686 , 0.09MB , pdfREACH Declaration of conformity LB 90 1140 R5 FS / 6217686 , 0.12MB , pdfRoHS Declaration of conformity LB 90 1140 R5 FS / 6217686 , 0.13MB , pdfMounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
