90° bend 110 FS
Item no. 6217688 | EAN 4012196685158
- Product description
-

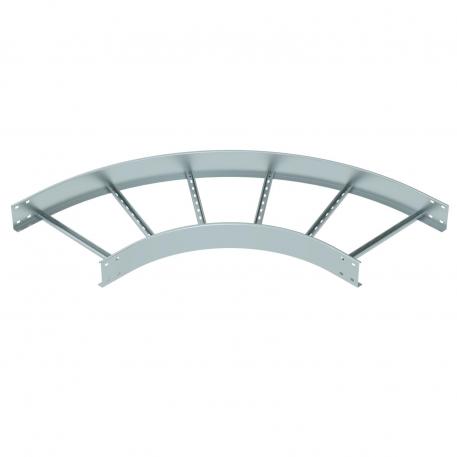

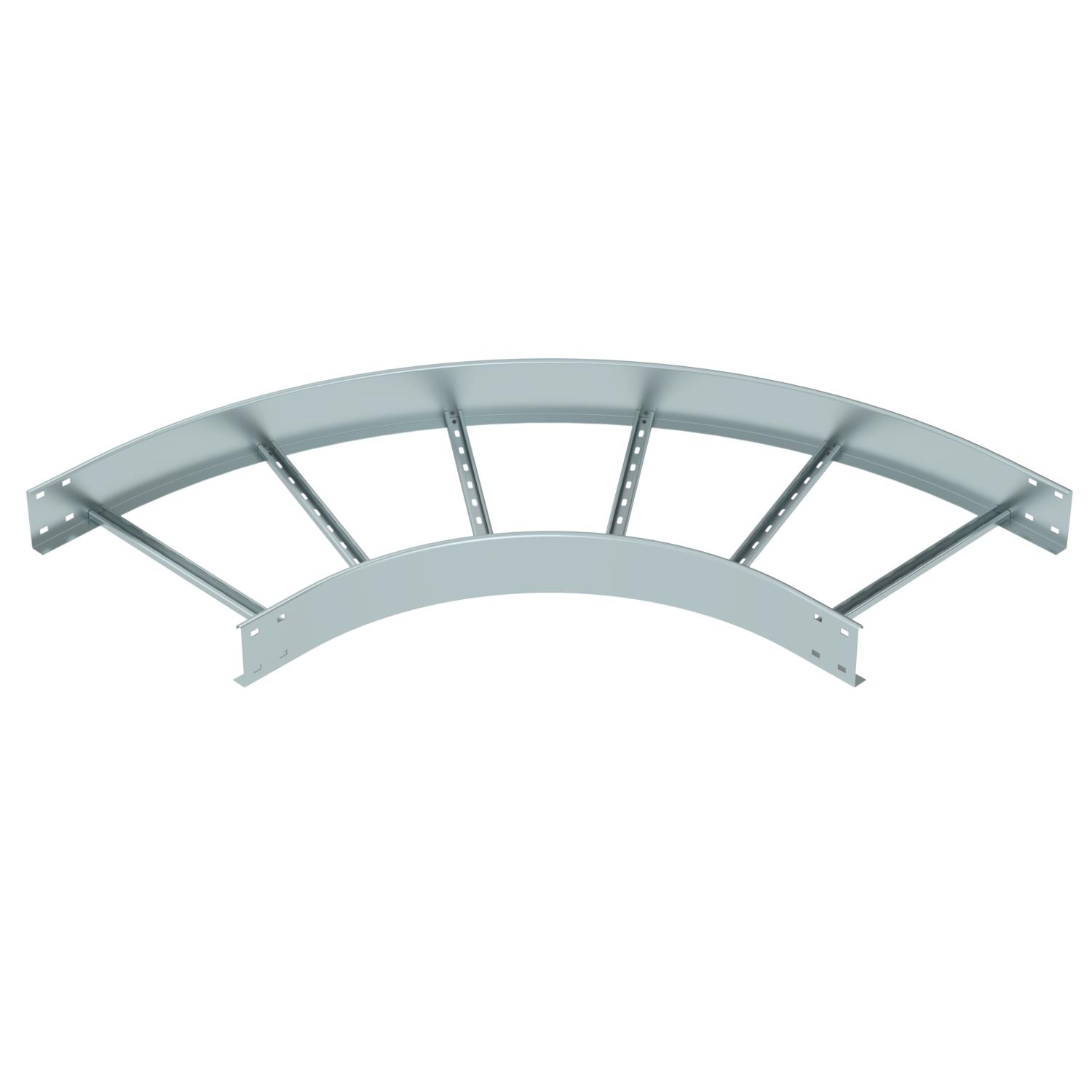

Product description90° bend, horizontal, for all wide span cable ladders of 110 mm side height.
-
- Technical data
-
Technical data

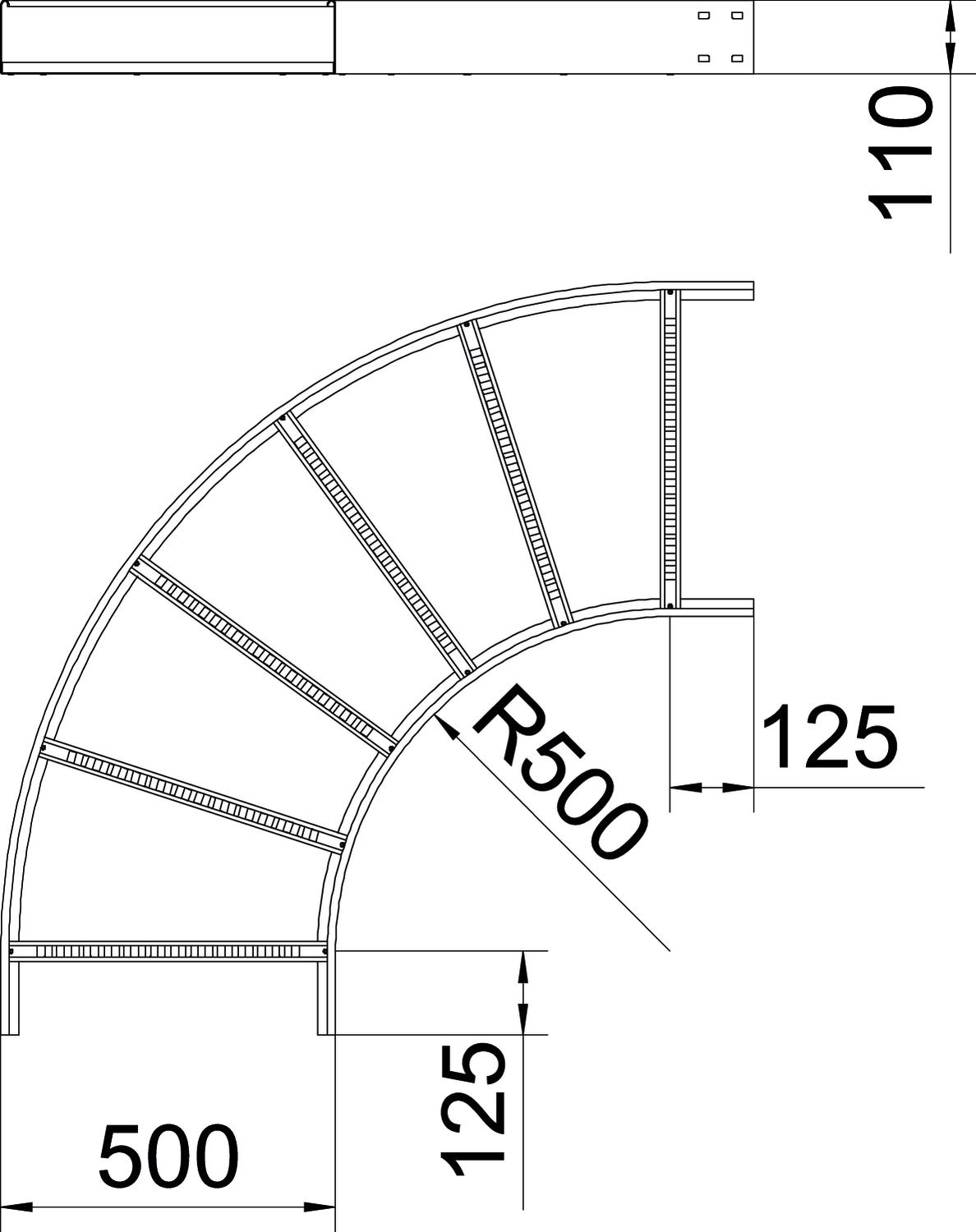

Bend (angle) 90° Change of direction Horizontal Colour zinc Dimension 110x500 Dimension B 500 mm Dimension R 500 mm Height 110 mm Maintain electrical functions no Material Steel Rustproof steel, pickled no Side perforation no Side rail version Flat profile Surface Strip galvanized Version of the rungs Profile unperforated Wide-span version no Width 500 mm - All types
-
Mounting accessories
Products Types Item no.
Straight connector FS
LVG 110 FS 6216545 - Downloads
-
Data sheet LB 90 1150 R5 FS / 6217688 , 0.21MB , pdfCatalogue Cable support systems , 54.52MB , pdfEU declaration of conformity LB 90 1150 R5 FS / 6217688 , 0.10MB , pdfUK Declaration of Conformity LB 90 1150 R5 FS / 6217688 , 0.09MB , pdfREACH Declaration of conformity LB 90 1150 R5 FS / 6217688 , 0.12MB , pdfRoHS Declaration of conformity LB 90 1150 R5 FS / 6217688 , 0.13MB , pdfMounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
