WKL 200 FT wide span cable ladder
Item no. 6232102 | EAN 4012196614844
- Product description
-

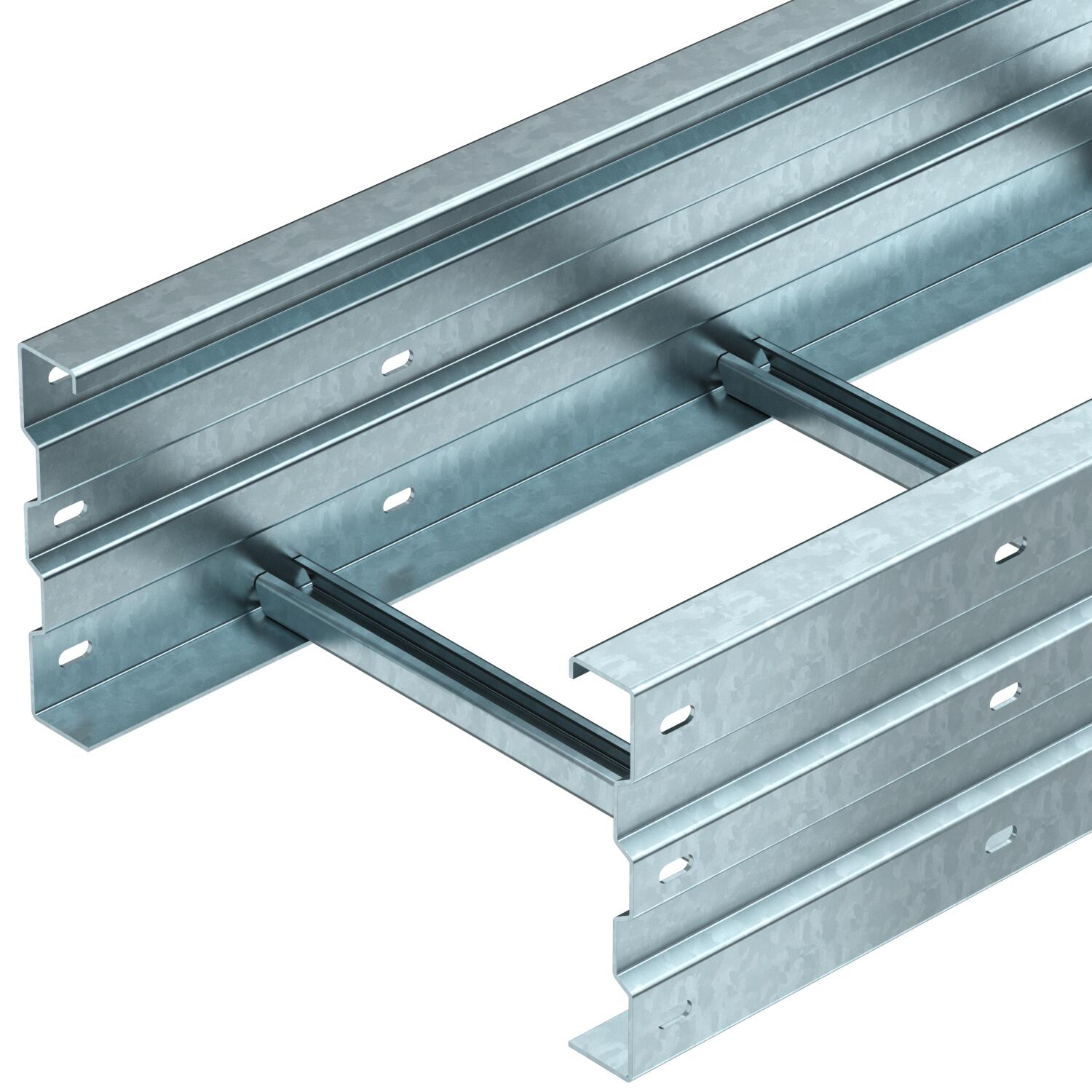

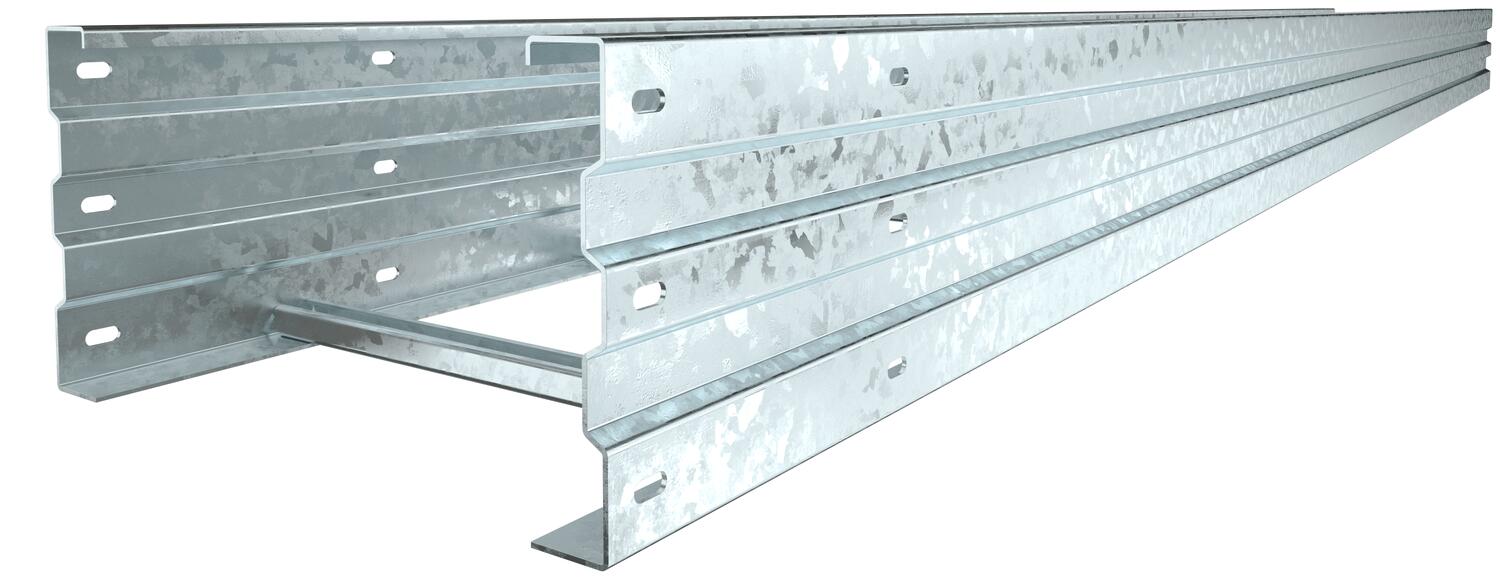

Product descriptionWide span cable ladder with 200 mm side height.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.
-
- Technical data
-
Technical data

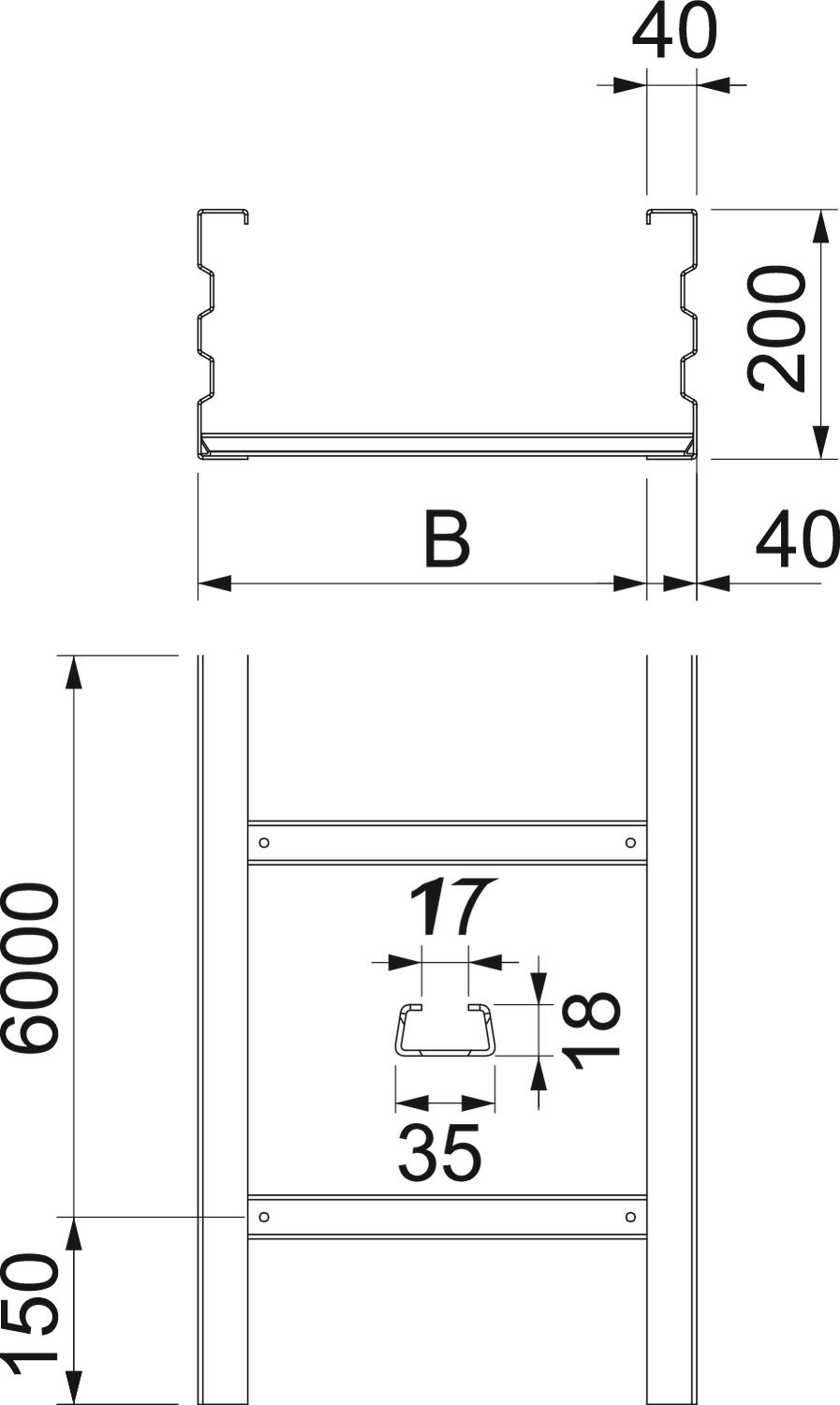

CO2 Footprint (GWP) Cradle-to-Gate 26,6429 kg CO₂e / 1 Meter Colour zinc Dimension 200x200x6000 Dimension 200x200 Dimension B 200 mm Dimension L 6000 mm Height 200 mm Length 6000 mm Maintain electrical functions no Material Steel Rail thickness 2,5 mm Rung slot dimension 17,00 Rustproof steel, pickled no Side perforation yes Support spacing 10.0 m 1 kN/m Support spacing 6.0 m 3 kN/m Support spacing 7.0 m 2,5 kN/m Support spacing 8.0 m 2 kN/m Support spacing 9.0 m 1,4 kN/m Surface Hot-dip galvanised Usable cross-section 34400 mm² Usable cross-section 344 cm² Version of the rungs Profile unperforated Wide-span version yes Width 200 mm Technical data

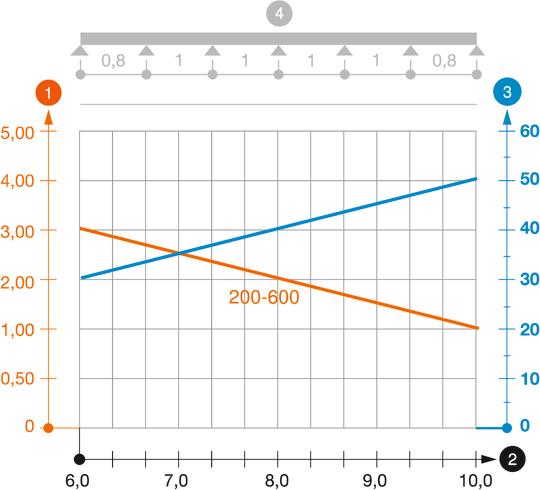

Load diagram, wide span cable ladder, type WKL 200
-
Permitted cable tray/ladder load in kN/m without man load
-
Support width in m
-
Rail bend in mm at permitted kN/m
-
Load scheme during testing
-
Load curve with cable tray/ladder width in mm
-
Strut bend curve according to support width
-
- All types
-
System accessories
Products Types Item no.

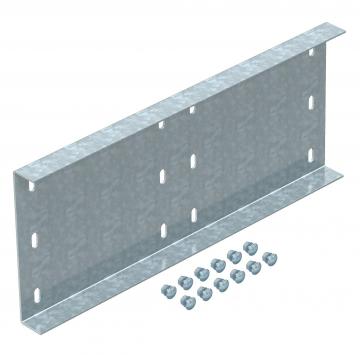

Straight connector
WRV 200 FT 6232507

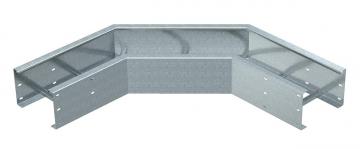

90° bend 200 FT
WLB 90 2020 FT 6233422

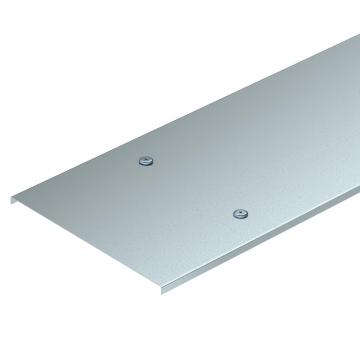

Cover incl. turn buckles DD
WKLD 2020 DD 6232402
Barrier strip 135 DD
TSG 135 DD 6062338
Drop-out plate FT
LAB 20 FT 6220436 Mounting accessories
Products Types Item no.
Clamping piece for separating retainer fastening A2
KS KL A2 6062284 - Downloads
-
Data sheet WKL 2020 FT / 6232102 , 0.33MB , pdfEU declaration of conformity WKL 2020 FT / 6232102 , 0.11MB , pdfEnvironmental Product Declaration (EPD) WKL 2020 FT / 6232102 , 1.48MB , pdfUK Declaration of Conformity WKL 2020 FT / 6232102 , 0.09MB , pdfMounting instructions Wide span cable ladders , 11.33MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
