90° bend 200 FT

Item no. 6233422 | EAN 4012196176298

2.5 mm
Product description
Product description

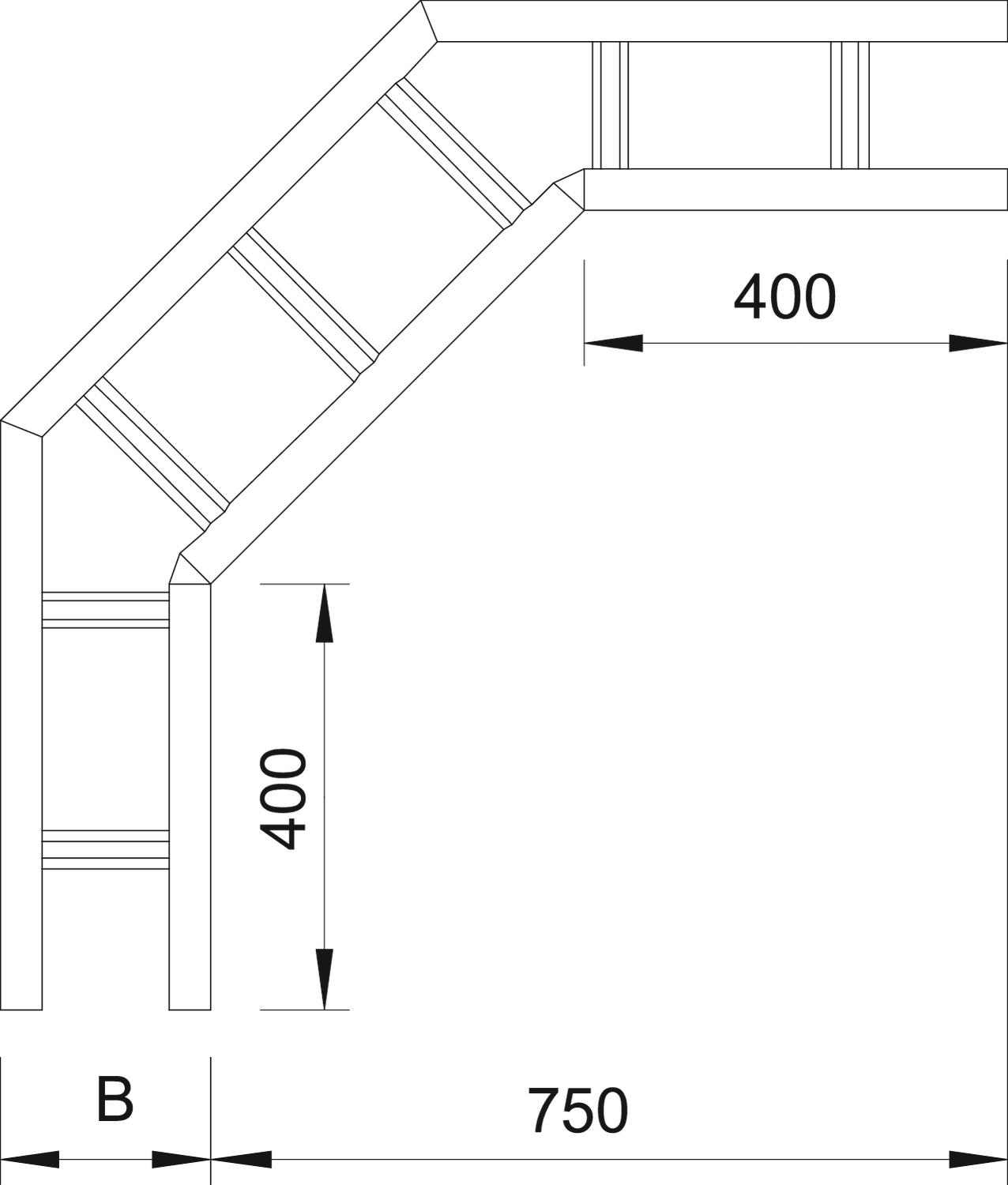

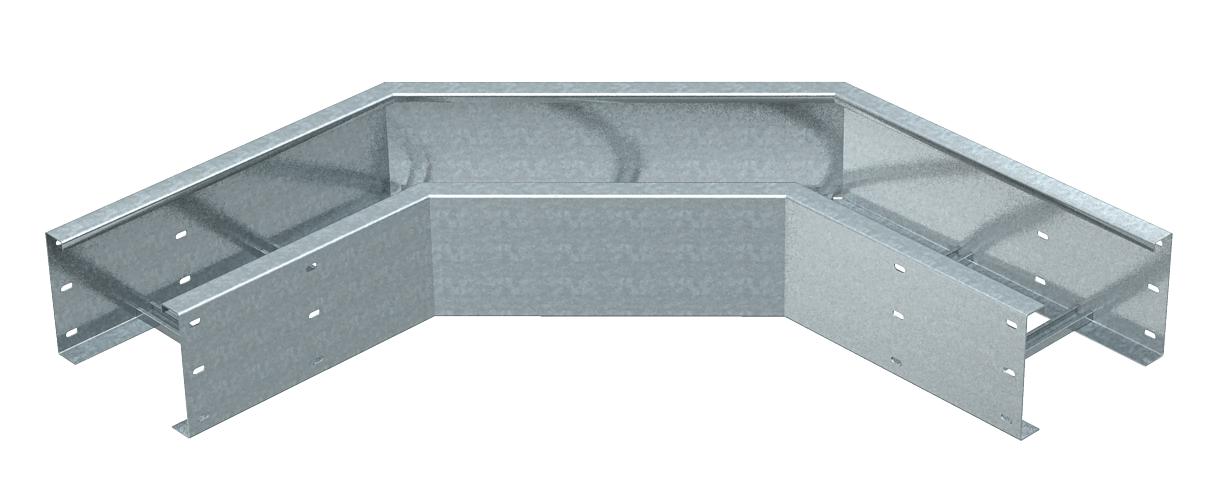

90° bend, horizontal, for all wide span cable ladders of 200 mm side height.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Wide span cable ladder, side height 200 mm
Technical data

Technical data

Bend (angle) 90°
Change of direction Horizontal
Colour zinc
Dimension 200x200
Dimension B 200 mm
Dimension R 200 mm
Height 200 mm
Maintain electrical functions no
Material Steel
Rail thickness 2,5 mm
Rustproof steel, pickled no
Side perforation no
Side rail version Flat profile
Surface Hot-dip galvanised
Version of the rungs Profile unperforated
Wide-span version yes
Width 200 mm
All types

All types

Types Width Rail thickness Item no.
WLB 90 2020 FT 200 mm 2.5 mm 6233422
WLB 90 2030 FT 300 mm 2.5 mm 6233430
WLB 90 2040 FT 400 mm 2.5 mm 6233449
WLB 90 2050 FT 500 mm 2.5 mm 6233457
WLB 90 2060 FT 600 mm 2.5 mm 6233465
