Washer ISO 7093
Item no. 3402207 | EAN 4012195300311
- Product description
-

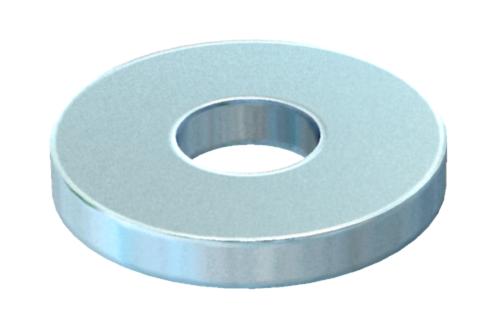

Product descriptionWasher of large outer diameter for universal use.
-
- Technical data
-
Technical data

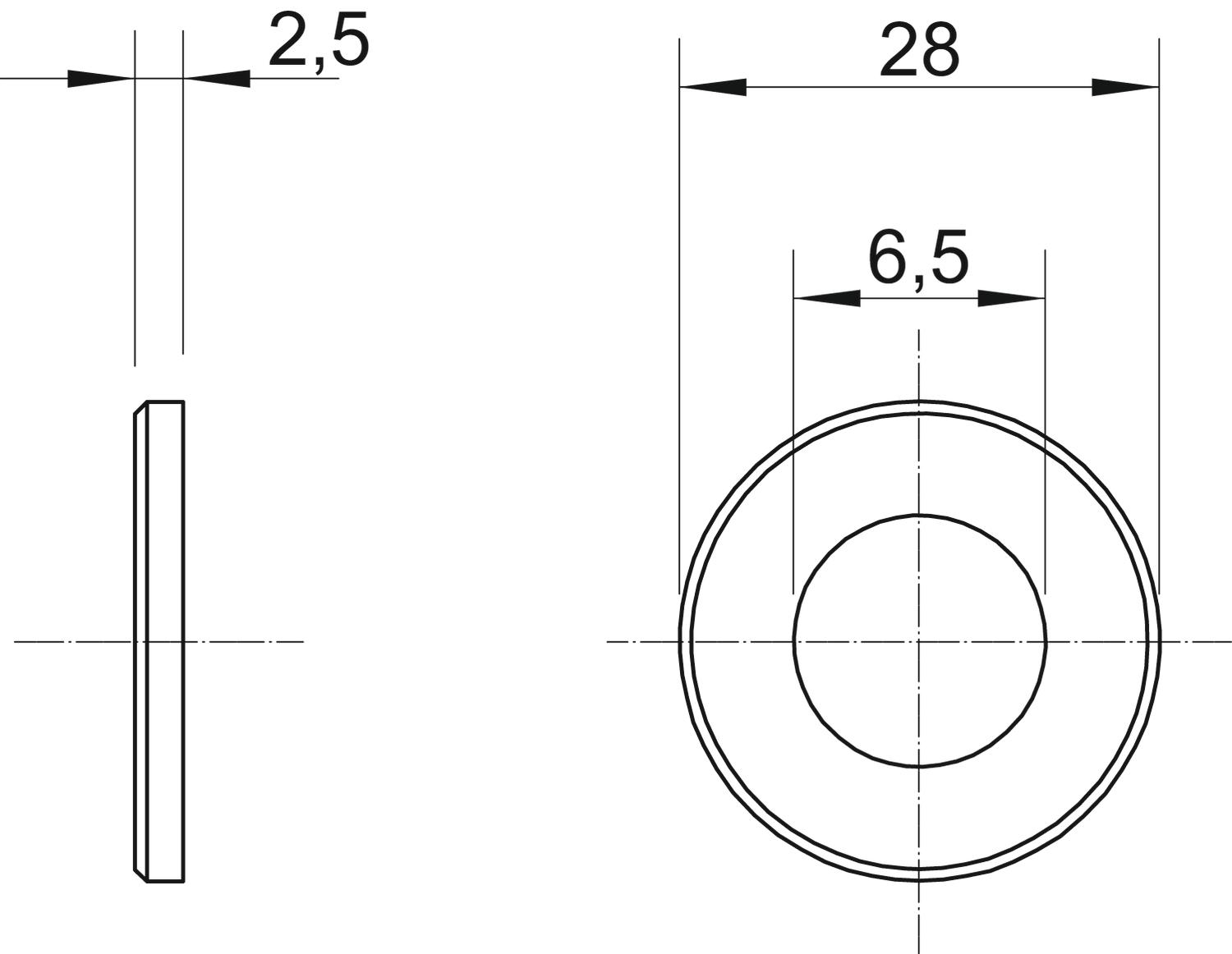

CO2 Footprint (GWP) Cradle-to-Gate 0,0345 kg CO₂e / 1 Piece Dimension M6 Dimension d 6,5 mm Dimension d min. 28 mm Dimension h 2,5 mm External diameter 28 mm Hole shape Round Inner diameter 6,5 mm Material Steel Material thickness 2,5 mm Plate thickness 0,1 in Surface Electrogalvanized Thread M6 With toothing no - All types
- Downloads
-
Data sheet WS M6 D28 G / 3402207 , 0.15MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity WS M6 D28 G / 3402207 , 0.06MB , pdfREACH Declaration of conformity WS M6 D28 G / 3402207 , 0.12MB , pdfRoHS Declaration of conformity WS M6 D28 G / 3402207 , 0.13MB , pdf
