Washer ISO 7093
Item no. 3402223 | EAN 4012195300434
- Product description
-
Product descriptionWasher of large outer diameter for universal use.
-
- Technical data
-
Technical data

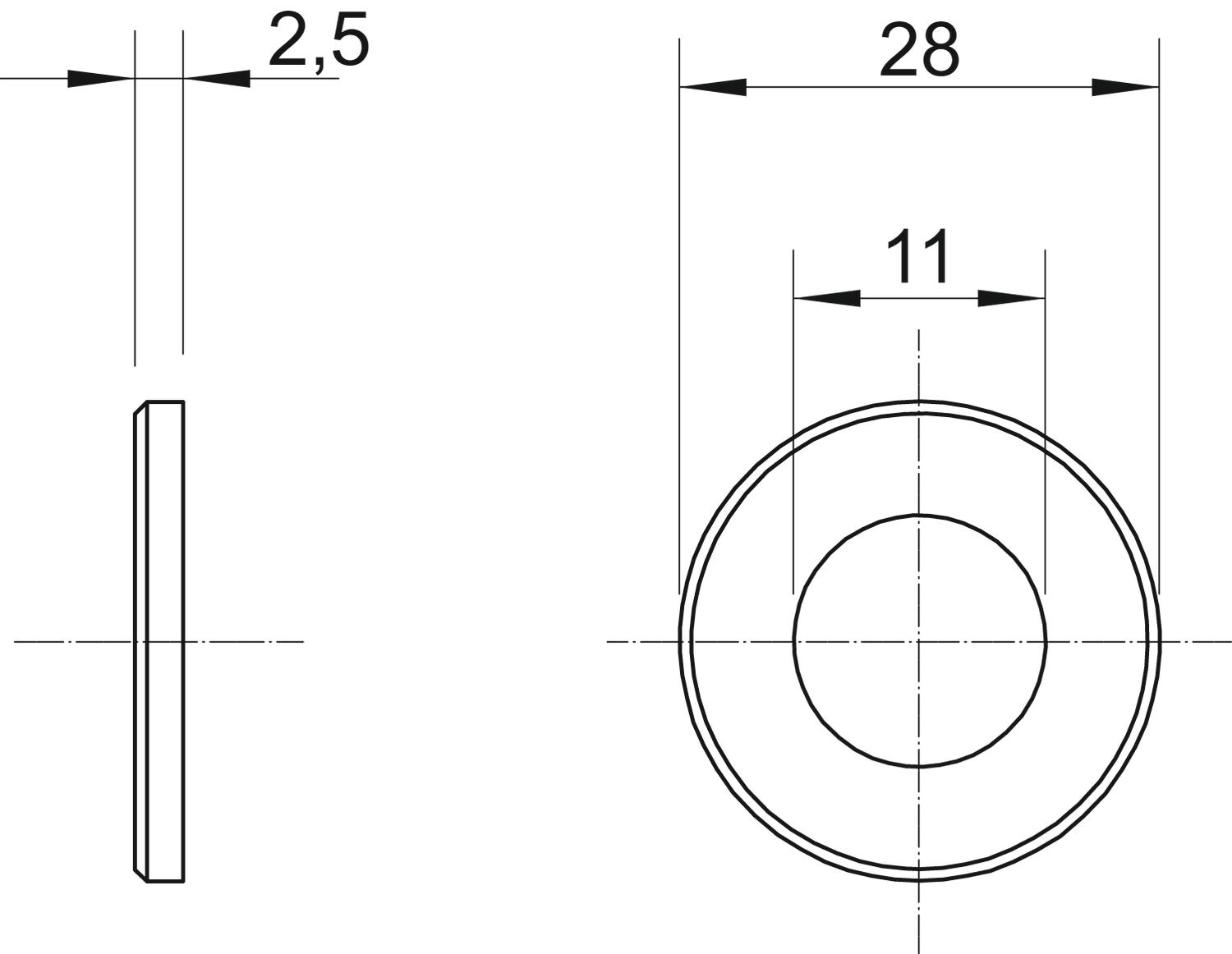

CO2 Footprint (GWP) Cradle-to-Gate 0,0338 kg CO₂e / 1 Piece Dimension M10 Dimension d 11 mm Dimension d min. 28 mm Dimension h 2,5 mm External diameter 28 mm Hole shape Round Inner diameter 11 mm Material Steel Material thickness 2,5 mm Plate thickness 0,1 in Surface Electrogalvanized Thread M10 With toothing no - All types
- Downloads
-
Data sheet WS M10 D28 G / 3402223 , 0.14MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity WS M10 D28 G / 3402223 , 0.06MB , pdfREACH Declaration of conformity WS M10 D28 G / 3402223 , 0.12MB , pdfRoHS Declaration of conformity WS M10 D28 G / 3402223 , 0.13MB , pdf
