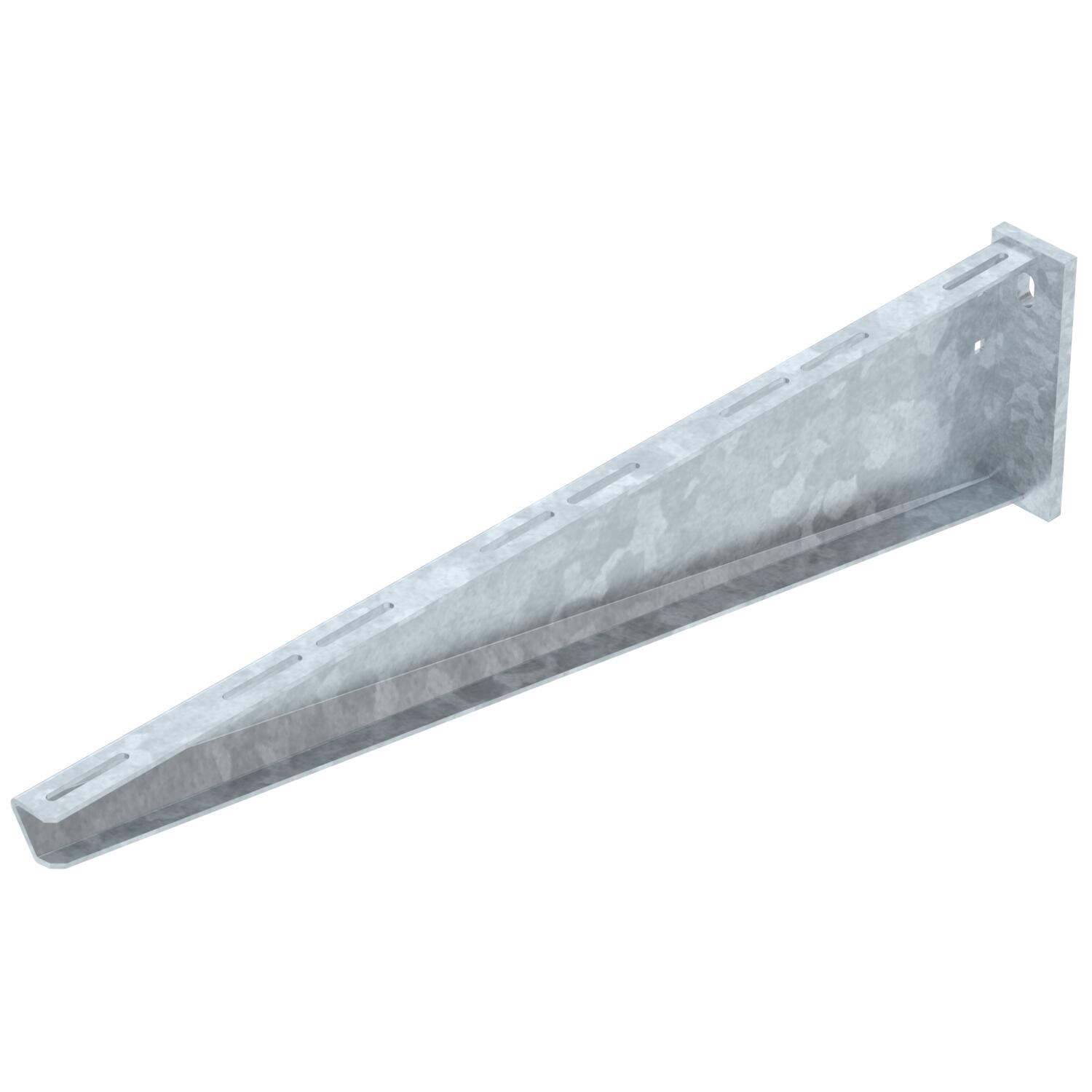

Wall and support bracket AW 55 FT
Item no. 6418686 | EAN 4012196205158
- Product description
-
Product descriptionHeavy-duty wall and support bracket with welded head plate.
-
- Technical data
-
Technical data

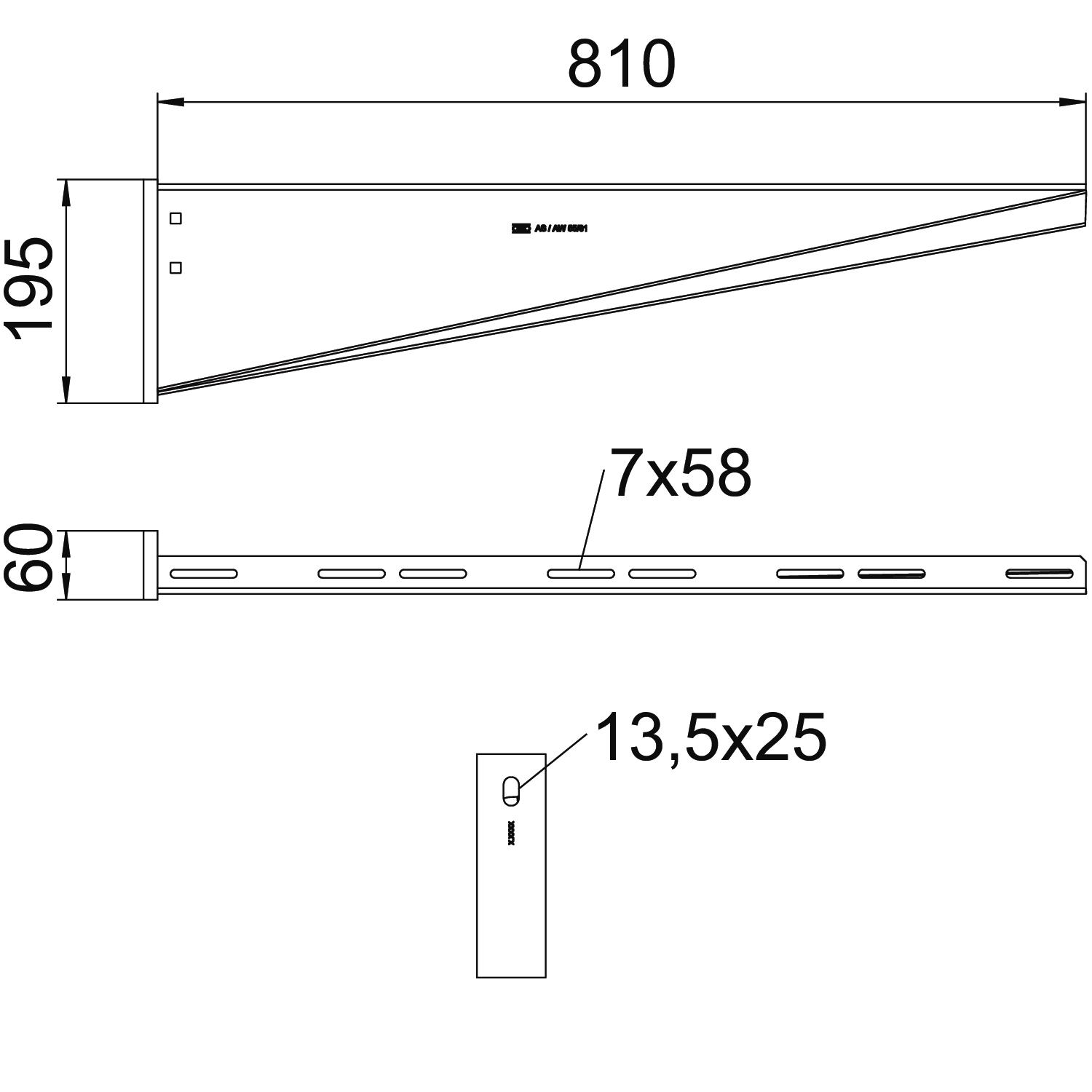

Angle range, max. 90 mm Angle range, min. 90 mm CO2 Footprint (GWP) Cradle-to-Gate 9,6946 kg CO₂e / 1 Piece Colour zinc Dimension B810mm Dimension A 60 mm Dimension B 810 mm Dimension H 195 mm F in kN 5,5 kN Height 195 mm Hole diameter 13,5 mm Length 60 mm Maintain electrical functions no Material Steel Rustproof steel, pickled no Surface Hot-dip galvanised Version for Wall and support bracket Width 810 mm Technical data
Load diagram, bracket, type AW 55
-
Bending of the bracket tip at permitted bracket load
-
Permitted bracket load in kN without man load
-
Load curve with bracket lengths in mm
-
- All types
-
All types
-
Mounting accessories
Products Types Item no.
Truss-head bolt with flange nut F
FRSB 6x12 F 6406122 - Downloads
-
Data sheet AW 55 81 FT / 6418686 , 0.21MB , pdfCatalogue Cable support systems , 54.52MB , pdfEU declaration of conformity AW 55 81 FT / 6418686 , 0.11MB , pdfEnvironmental Product Declaration (EPD) AW 55 81 FT / 6418686 , 1.48MB , pdfUK Declaration of Conformity AW 55 81 FT / 6418686 , 0.09MB , pdfREACH Declaration of conformity AW 55 81 FT / 6418686 , 0.12MB , pdfRoHS Declaration of conformity AW 55 81 FT / 6418686 , 0.13MB , pdfMounting instructions General information on the mounting , 2.65MB , pdfMounting instructions Mounting instructions, U support systems , 2.02MB , pdf
