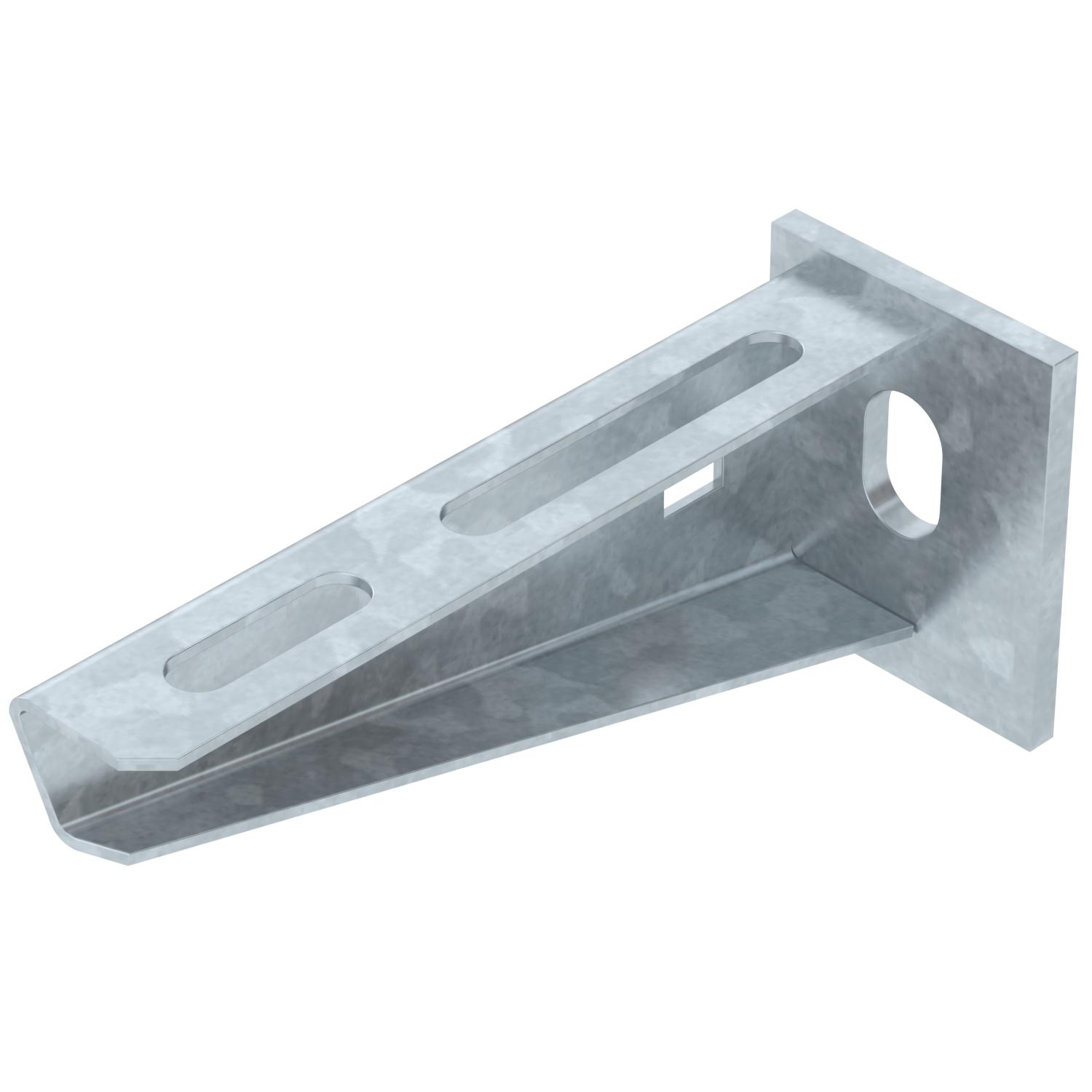

Wall and support bracket AW 15 FT
Item no. 6420656 | EAN 4012196207077
- Product description
-
Product descriptionLight-duty wall and support bracket with welded head plate.
-
- Technical data
-
Technical data
Angle range, max. 90 mm Angle range, min. 90 mm CO2 Footprint (GWP) Cradle-to-Gate 0,1876 kg CO₂e / 1 Piece Colour zinc Dimension B110mm Dimension A 40 mm Dimension B 110 mm Dimension H 50 mm EPD article yes F in kN 1,5 kN Height 50 mm Height 1,97 in Hole diameter 11 mm Length 40 mm Maintain electrical functions yes Material Steel Rustproof steel, pickled no Surface Hot-dip galvanised Version for Wall and support bracket Width 4 in Width 110 mm Technical data

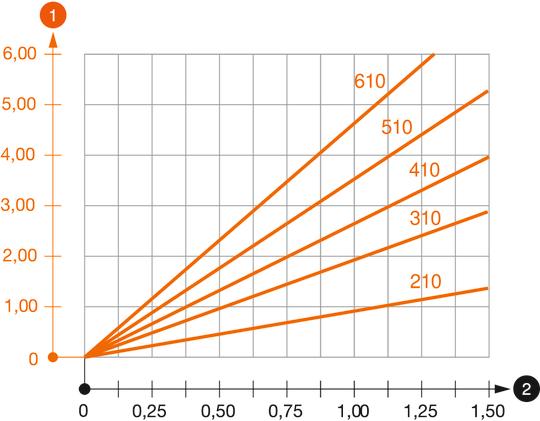

Load diagram, bracket, type AW 15
-
Bending of the bracket tip at permitted bracket load
-
Permitted bracket load in kN without man load
-
Load curve with bracket lengths in mm
-
- All types
-
Mounting accessories
Products Types Item no.
Truss-head bolt with flange nut F
FRSB 6x12 F 6406122 - Downloads
-
Data sheet AW 15 11 FT / 6420656 , 0.27MB , pdfCatalogue Cable support systems , 54.52MB , pdfEU declaration of conformity AW 15 11 FT / 6420656 , 0.11MB , pdfEnvironmental Product Declaration (EPD) AW 15 11 FT / 6420656 , 1.48MB , pdfUK Declaration of Conformity AW 15 11 FT / 6420656 , 0.09MB , pdfREACH Declaration of conformity AW 15 11 FT / 6420656 , 0.12MB , pdfRoHS Declaration of conformity AW 15 11 FT / 6420656 , 0.12MB , pdfSelection aid Selection aid cable trays, screwable , 2.17MB , pdfSelection aid Selection aid for cable trays, Magic , 0.23MB , pdfMounting instructions General information on the mounting , 2.65MB , pdfMounting instructions Mounting instructions, U support systems , 2.02MB , pdf
