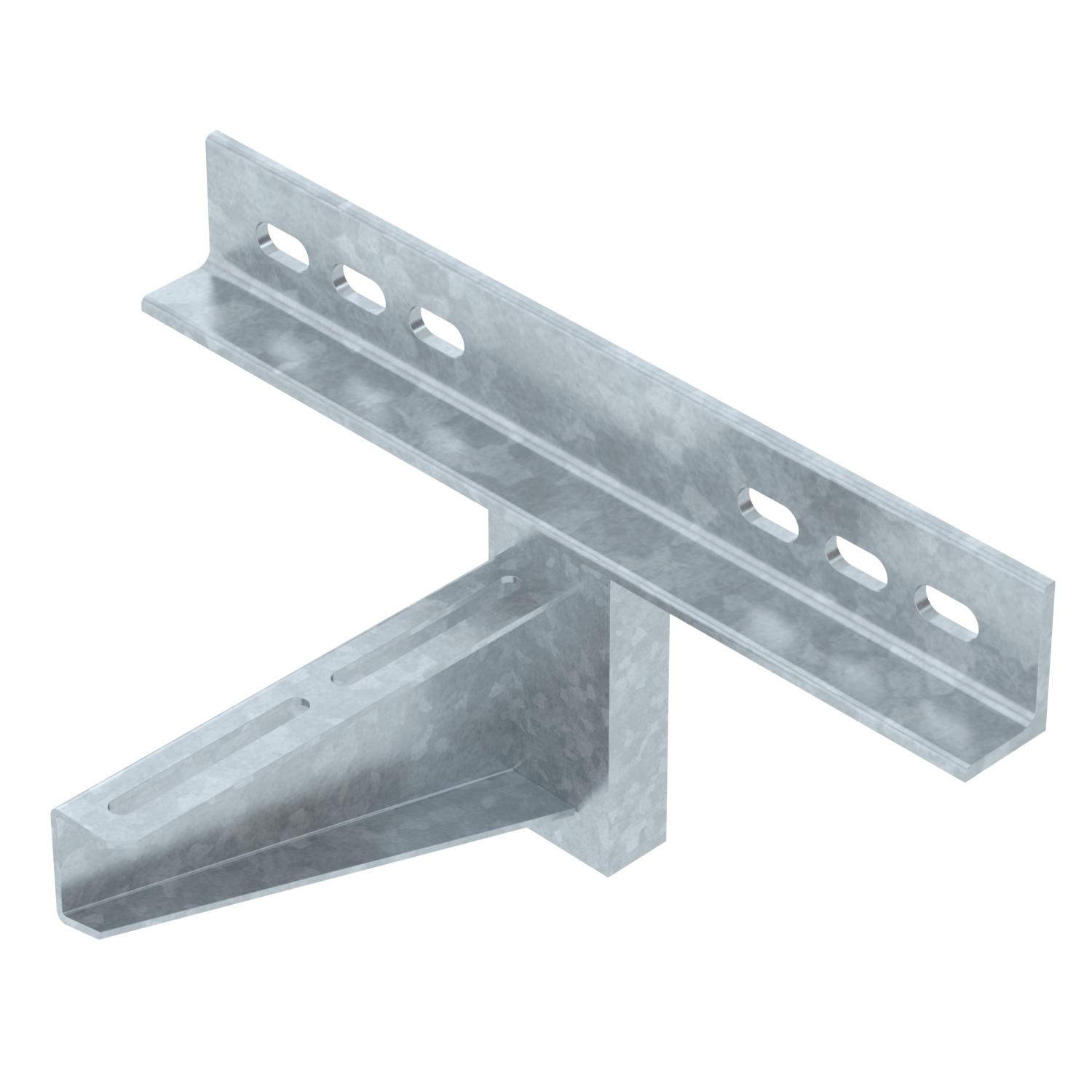

Wall and clamping bracket AWSS FT
Item no. 6417906 | EAN 4012196340279
- Product description
-
Product descriptionWall bracket, heavy duty.
-
- Technical data
-
Technical data

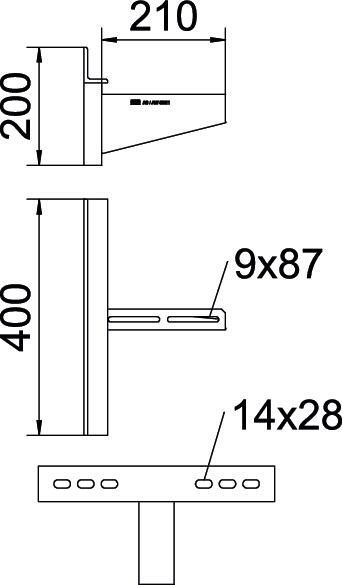

Colour zinc Dimension B210mm Dimension A 400 mm Dimension b 160 mm Dimension B 210 mm Dimension b1 240 mm Dimension b2 320 mm Dimension H 200 mm F in kN 10 kN Height 200 mm Hole diameter 14 mm Length 400 mm Maintain electrical functions no Material Steel Rustproof steel, pickled no Surface Hot-dip galvanised Version for Wall brackets Width 210 mm - All types
-
Mounting accessories
Products Types Item no.
Truss-head bolt with flange nut F
FRSB 6x12 F 6406122 - Downloads
-
Data sheet AWSS 21 FT / 6417906 , 0.20MB , pdfEU declaration of conformity AWSS 21 FT / 6417906 , 0.11MB , pdfEnvironmental Product Declaration (EPD) AWSS 21 FT / 6417906 , 1.48MB , pdfUK Declaration of Conformity AWSS 21 FT / 6417906 , 0.09MB , pdfREACH Declaration of conformity AWSS 21 FT / 6417906 , 0.12MB , pdfRoHS Declaration of conformity AWSS 21 FT / 6417906 , 0.12MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
