US 7 support FT

Item no. 6340091 | EAN 4012196187935

4 mm
Product description
Product description

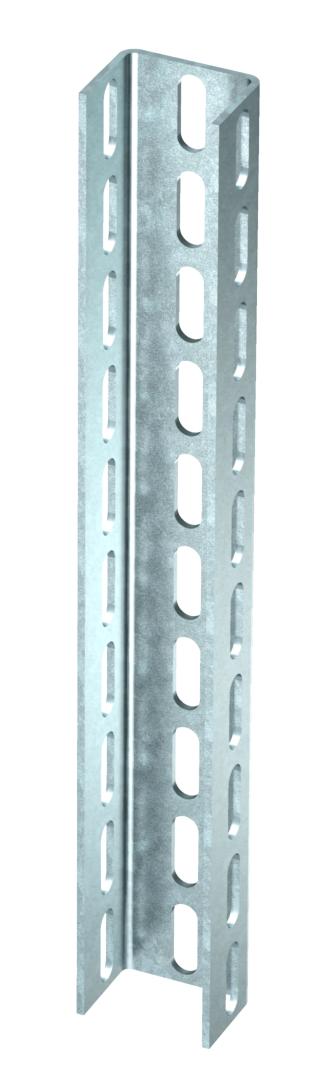

U support in fixed lengths. Dimensions 70 x 50 mm.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • U support
Technical data

Technical data

Breakable no
Colour zinc

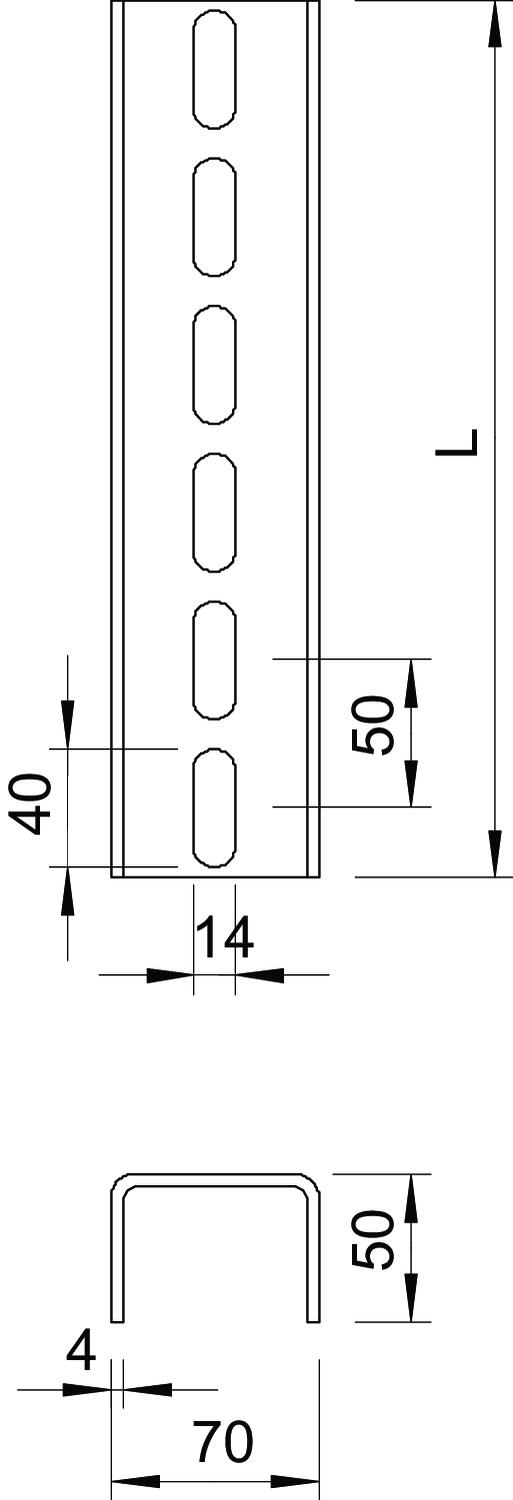

Dimension 70 x 50 x 4
Dimension 70x50x600
Dimension L 600 mm
EPD article yes
Height 50 mm
Hole width 14 mm
Length 600 mm
Maintain electrical functions yes
Material Steel
Material thickness 4 mm
Profile shape U profile
Slot width 62 mm
Static value A 4,59 cm²
Static value ly 13,79 cm
Static value lz 36,84 cm
Static value Wy 4,11 cm²
Static value Wz 10,53 cm²
Surface Hot-dip galvanised
Type of perforation 3 sides perforated
Version for Single profile
Width 70 mm
With toothing no
All types

All types

Types Length Material thickness Item no.
US 7 20 FT 200 mm 4 mm 6340016
US 7 30 FT 300 mm 4 mm 6340032
US 7 40 FT 400 mm 4 mm 6340059
US 7 50 FT 500 mm 4 mm 6340075
US 7 60 FT 600 mm 4 mm 6340091
US 7 70 FT 700 mm 4 mm 6340113
US 7 80 FT 800 mm 4 mm 6340148
US 7 90 FT 900 mm 4 mm 6340164
US 7 100 FT 1000 mm 4 mm 6340180
US 7 110 FT 1100 mm 4 mm 6340199
US 7 120 FT 1200 mm 4 mm 6340202
US 7 130 FT 1300 mm 4 mm 6340210
US 7 140 FT 1400 mm 4 mm 6340229
US 7 150 FT 1500 mm 4 mm 6340237
US 7 160 FT 1600 mm 4 mm 6340245
US 7 170 FT 1700 mm 4 mm 6340253
US 7 180 FT 1800 mm 4 mm 6340261
US 7 190 FT 1900 mm 4 mm 6340288
US 7 200 FT 2000 mm 4 mm 6340296
US 7 600 FT 6000 mm 4 mm 6340318
US 7 300 FT 3000 mm 4 mm 6340377
US 7 250 FT 2500 mm 4 mm 6340385
US 7 400 FT 4000 mm 4 mm 6340393
Accessories

Mounting accessories

Products Types Item no.

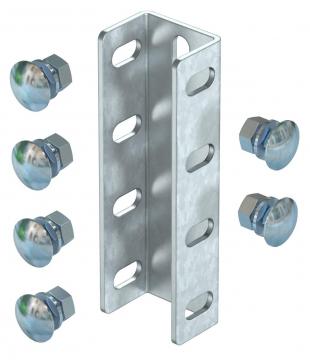

U support connector FT U support connector FT VUS 7 FT 6018378

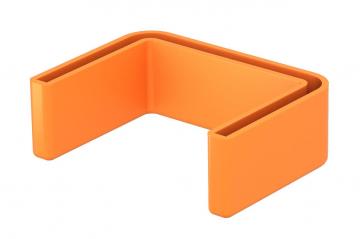

Protective cap Protective cap US 7 KS OR 6338497

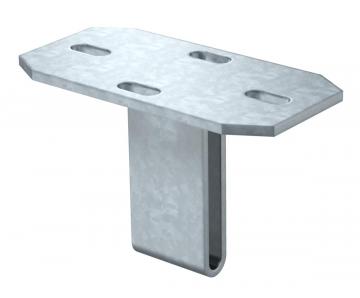

Head plate, light-duty version FT Head plate, light-duty version FT KU 7 FT 6349102
Truss-head bolt with nut and washer F Truss-head bolt with nut and washer F FRS 12x25 F 6406254

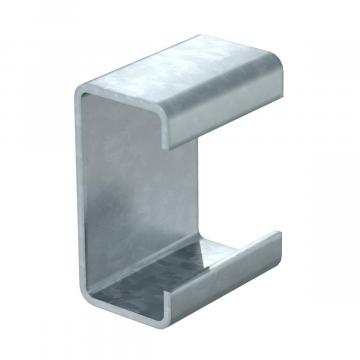

DSK 61 spacer FT DSK 61 spacer FT DSK 61 FT 6416519

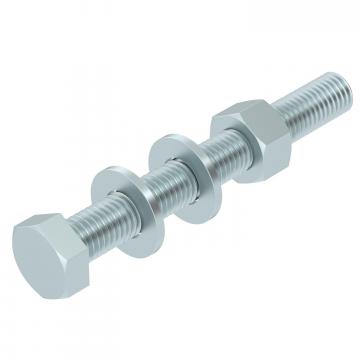

Hexagonal bolt M12 F Hexagonal bolt M12 F SKS 12x100 F 6418295
