Truss-head bolt with nut and washer F
Item no. 6406254 | EAN 4012196200054
- Product description
-

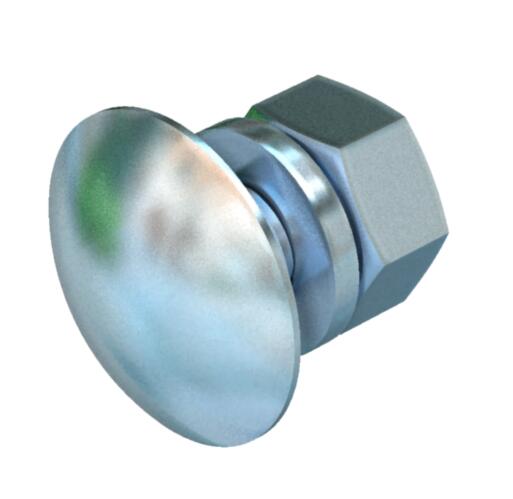

Product descriptionTruss-head bolt with square neck including hexagonal nut and washer.
-
- Technical data
-
Technical data
CO2 Footprint (GWP) Cradle-to-Gate 0,0652 kg CO₂e / 1 Piece Colour zinc Dimension M12x25 Dimension D 30 mm Dimension d 12 mm Dimension L 25 mm Full thread yes Left thread no Length 25 mm Material Steel Resistance grade 5.6 Screw system Miscellaneous Self-locking no Surface Hot galvanized Thread metric 12 Thread type Metric WAF 19 With flange no With nut yes With washer yes - All types
-
All types
- Downloads
-
Data sheet FRS 12x25 F / 6406254 , 0.14MB , pdfCatalogue Cable support systems , 54.52MB , pdfEU declaration of conformity FRS 12x25 F / 6406254 , 0.06MB , pdfREACH Declaration of conformity FRS 12x25 F / 6406254 , 0.12MB , pdfRoHS Declaration of conformity FRS 12x25 F / 6406254 , 0.12MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
