Truss-head bolt with nut and washer A2 12 | | Stainless steel |

morepic-1

morepic-2

Truss-head bolt with nut and washer A2

Item no. 6406521 | EAN 4012196200238

Item no. / Types

Length

Material	Stainless steel

Surface

Product description

Product description

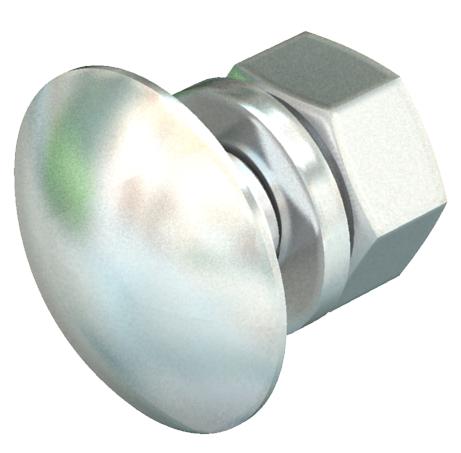

Truss-head bolt with square neck including hexagonal nut and washer.

Technical data

Technical data

Colour	stainless steel
Dimension	M6x12

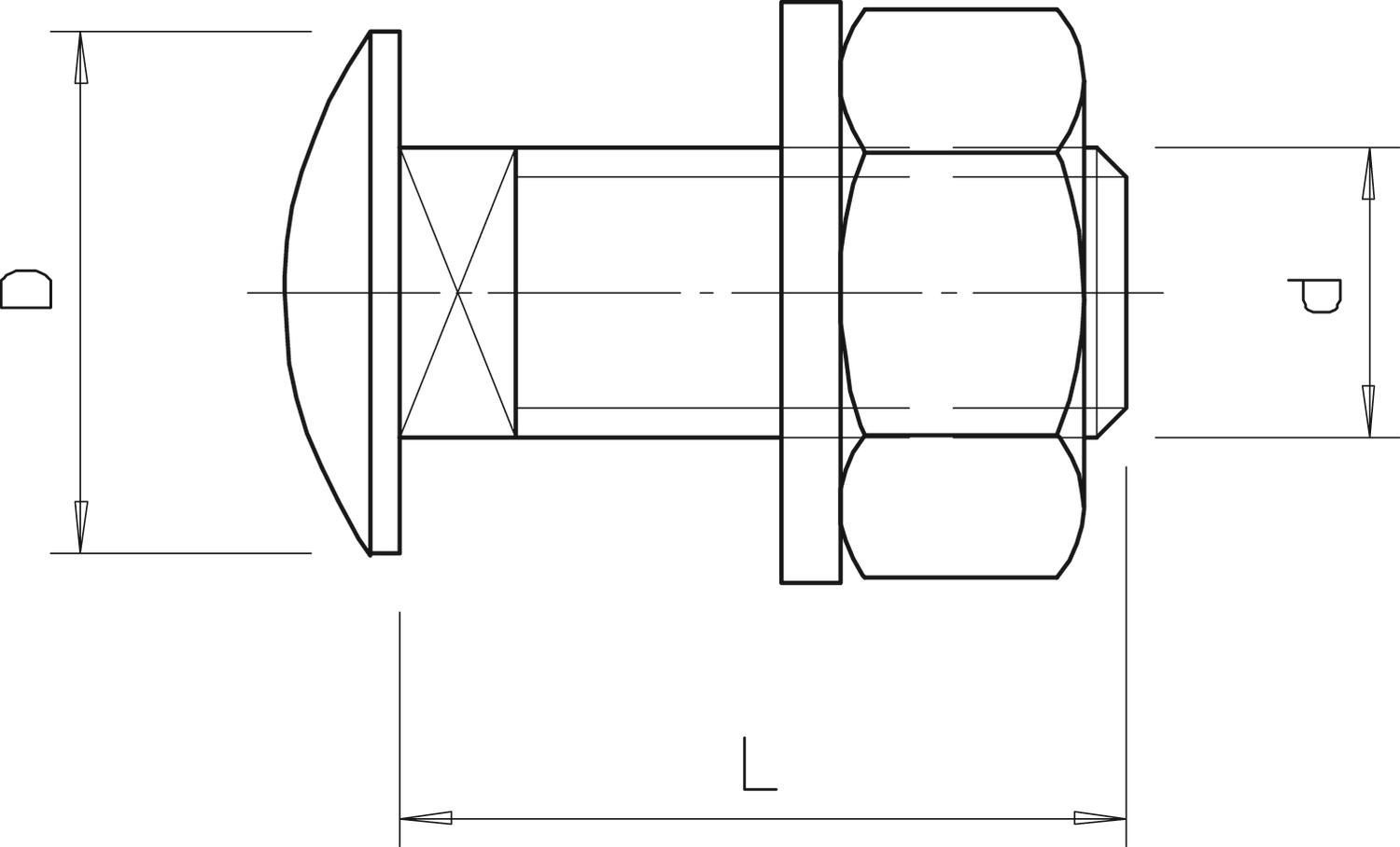

Dimension D	13,5 mm
Dimension d	6 mm
Dimension L	12 mm
Full thread	yes
Left thread	no
Length	12 mm
Material	Stainless steel

Resistance grade	A2-70
Screw system	Miscellaneous
Self-locking	no
Thread metric	6
Thread type	Metric
WAF	10
With flange	no
With nut	yes
With washer	yes

All types

All types

Types	Length	Material	Surface	Item no.
FRS 6x12 A2	12 mm	Stainless steel	-	6406521
FRS 6x16 A2	16 mm	Stainless steel	-	6406556
FRS 6x20 A2	20 mm	Stainless steel	-	6406602
FRS 8x16 A2	16 mm	Stainless steel	-	6406696
FRS 10x25 A2	25 mm	Stainless steel	Bright, treated	6406718
FRS 10x30 A2	30 mm	Stainless steel	-	6406726
FRS 12x25 A2	25 mm	Stainless steel	Bright, treated	6406750
FRS 12x30 A2	30 mm	Stainless steel	-	6406769
FRS 8x25 A2	25 mm	Stainless steel	-	6406815
FRS 8x35 A2	35 mm	Stainless steel	-	6406823
FRS 10x20 A2	20 mm	Stainless steel	-	6406866

Downloads

Data sheet FRS 6x12 A2 / 6406521 , 0.09MB , pdf

Guide KTS cable tray systems , 1.61MB , pdf

Guide Fire protection in electrical engineering – A guide to fireproof building installations , 2.10MB , pdf

Brochure False ceiling installations , 2.70MB , pdf

Catalogue Cable support systems , 54.52MB , pdf

EU declaration of conformity FRS 6x12 A2 / 6406521 , 0.06MB , pdf

Download

REACH Declaration of conformity FRS 6x12 A2 / 6406521 , 0.12MB , pdf

Download

RoHS Declaration of conformity FRS 6x12 A2 / 6406521 , 0.12MB , pdf

Download

Mounting instructions General information on the mounting , 2.65MB , pdf

Product graphic FRS 6x12 A2 / 6406521, 18.67 kB, jpg

Scale drawing FRS 6x12 A2 / 6406521, 45.22 kB, jpg

FRS 6x12 A2 / 6406521
