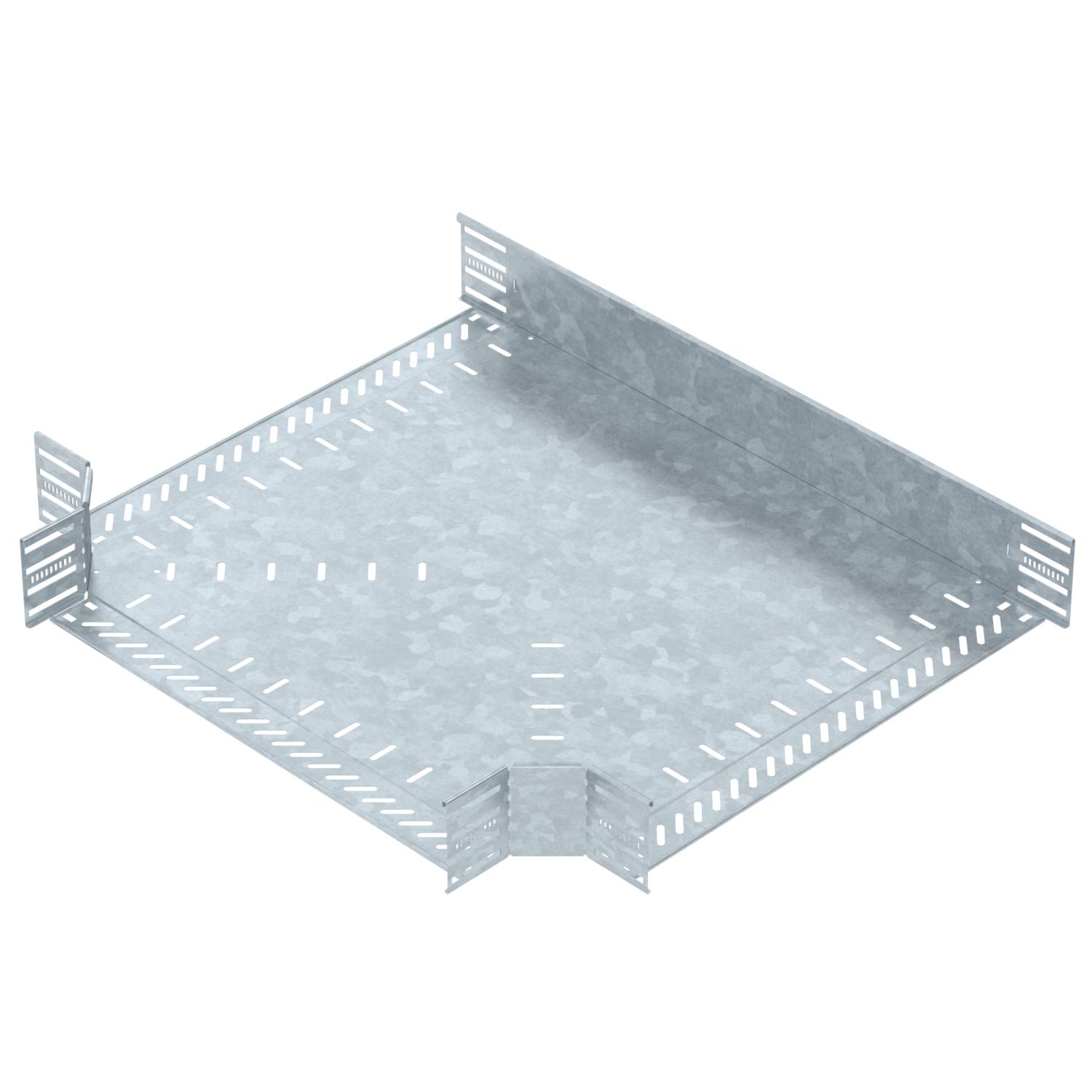

T piece 110 FT
Item no. 6038332 | EAN 4012197347888
- Product description
-
Product descriptionT piece for the creation of a horizontal branch, fitting for lock and screw-on cable trays of side height 110 mm. Screwless mounting with double clamps or screw connection with FRS truss-head screws and M6 combination nuts. Can be used indoors and outdoors. Fastening material must be ordered separately.
-
- Technical data
-
Technical data
CO2 Footprint (GWP) Cradle-to-Gate 19,2782 kg CO2e / 1 Piece Colour zinc Connector version Integrated connector Dimension 110x600 Dimension B 600 mm Height 110 mm Maintain electrical functions no Material Steel NATO hole pattern no Permitted temperature range, max. 120 °C Permitted temperature range, min. -20 °C Plate thickness 1 mm Rail thickness 1,25 mm Recommended quantity of bolts 36 St. Rustproof steel, pickled no Surface Hot-dip galvanised Type T piece horizontal Type of connector, cable support system screwed/clamped Wide-span version no Width 600 mm Width of the branch 600 mm - All types
-
All types
-
System accessories
Products Types Item no.
Cover, T piece DD
RTD 600 DD 6038652 Mounting accessories
Products Types Item no.
Double clamp, fitting mounting A2
DOP A2 6035998
Truss-head bolt with flange nut F
FRSB 6x12 F 6406122 - Downloads
-
Data sheet RT 160 FT / 6038332 , 0.20MB , pdfCatalogue Cable support systems , 54.52MB , pdfEU declaration of conformity RT 160 FT / 6038332 , 0.10MB , pdfUK Declaration of Conformity RT 160 FT / 6038332 , 0.09MB , pdfREACH Declaration of conformity RT 160 FT / 6038332 , 0.12MB , pdfRoHS Declaration of conformity RT 160 FT / 6038332 , 0.13MB , pdfMounting instructions Latchable Magic cable tray systems , 12.24MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
