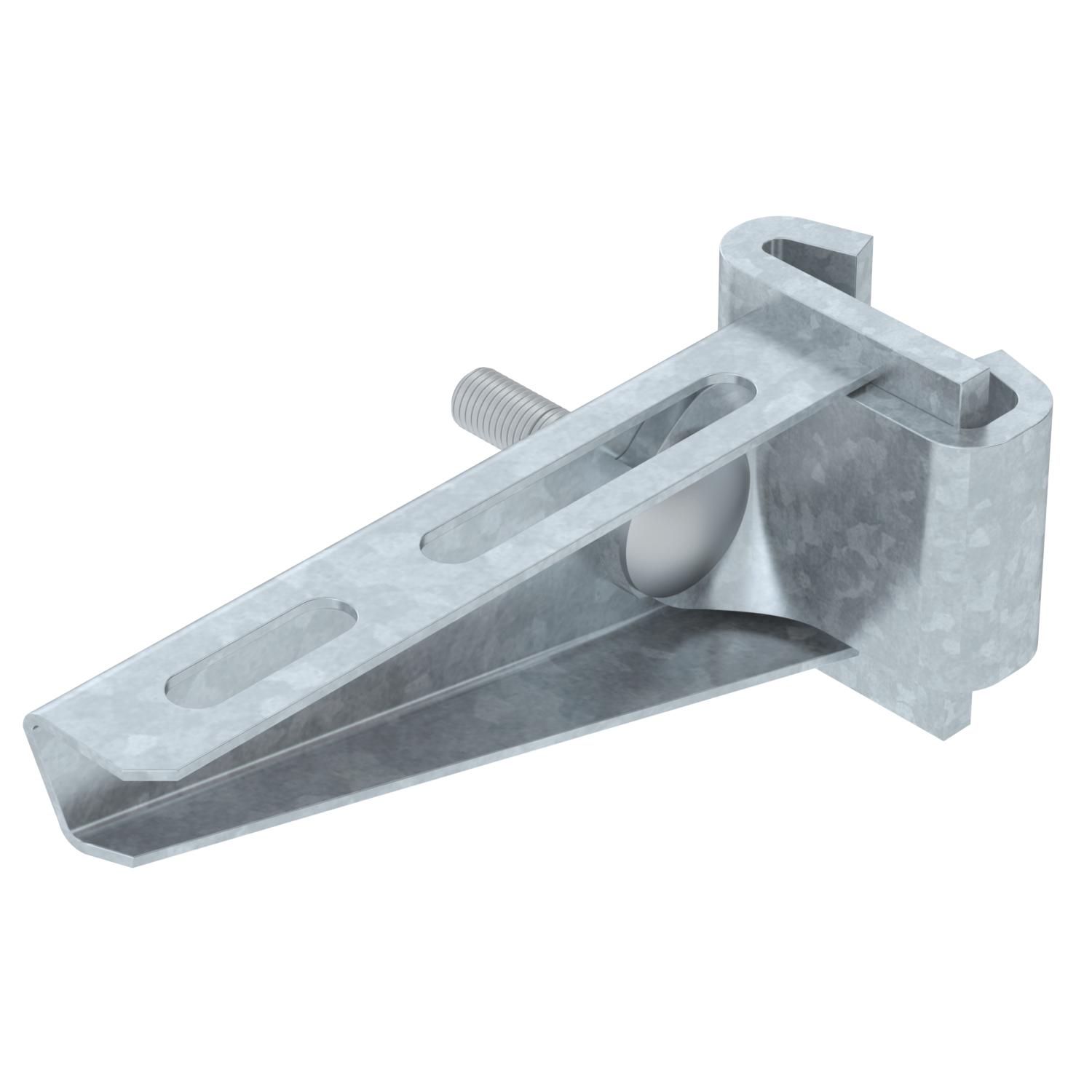

Support bracket AS 15
Item no. 6421326 | EAN 4012196207732
- Product description
-
Product descriptionLight-duty support bracket for infinitely adjustable fastening on IS 8 support.
-
- Technical data
-
Technical data

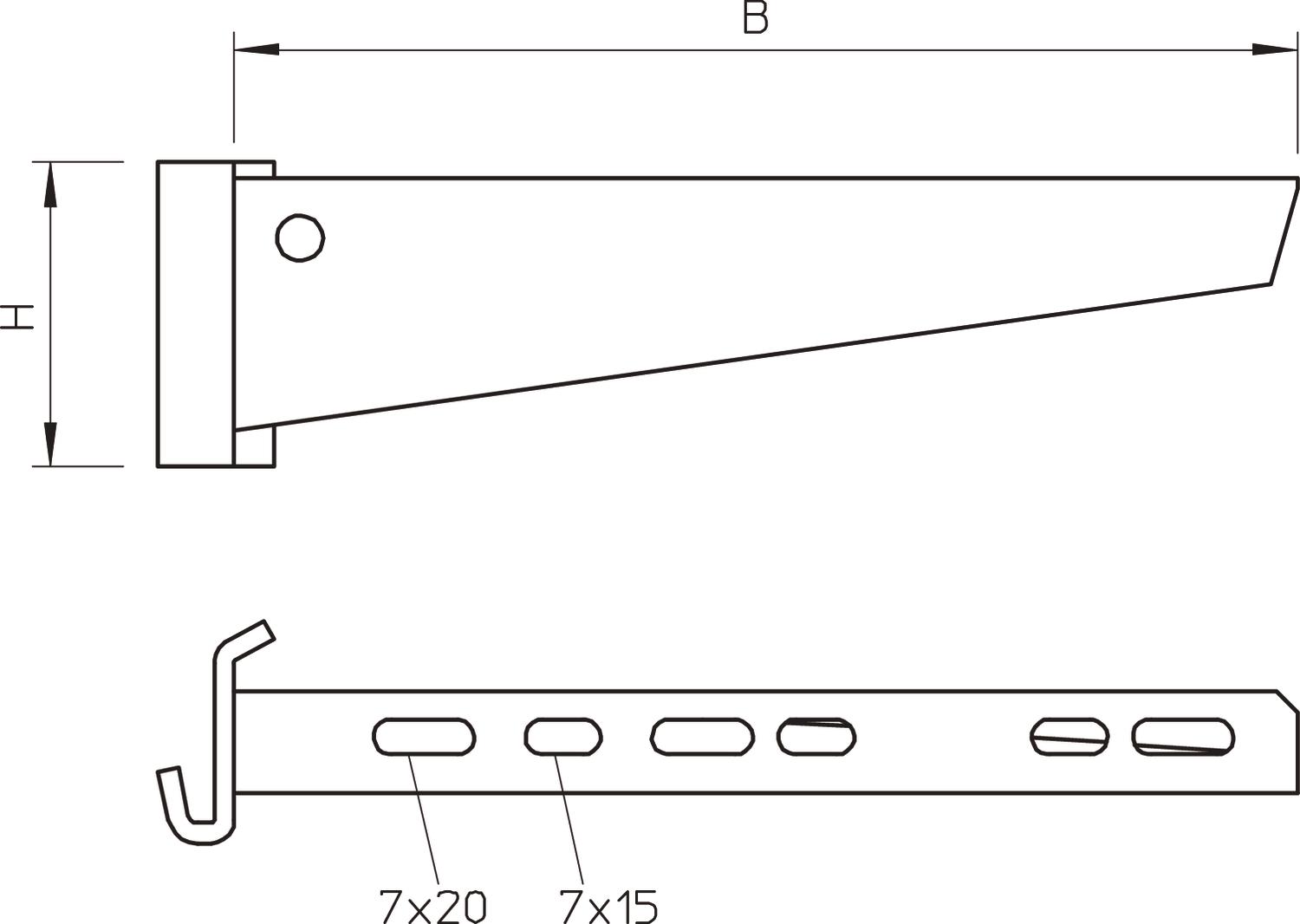

Colour zinc Dimension B110mm Dimension A 41 mm Dimension B 110 mm Dimension H 50 mm EPD article yes F in kN 1,5 kN Height 50 mm Length 41 mm Maintain electrical functions no Material Steel Rustproof steel, pickled no Surface Hot-dip galvanised Version for Support bracket Width 110 mm Technical data

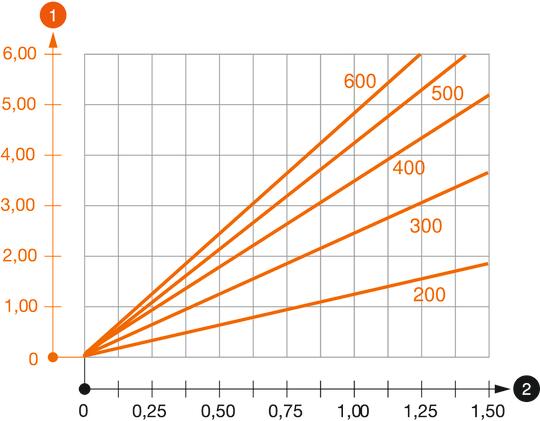

Load diagram, bracket type AS 15
-
Bending of the bracket tip at permitted bracket load
-
Permitted bracket load in kN without man load
-
Support width in m
-
Load curve with bracket lengths in mm
-
- All types
-
Mounting accessories
Products Types Item no.
Truss-head bolt with flange nut F
FRSB 6x12 F 6406122 - Downloads
-
