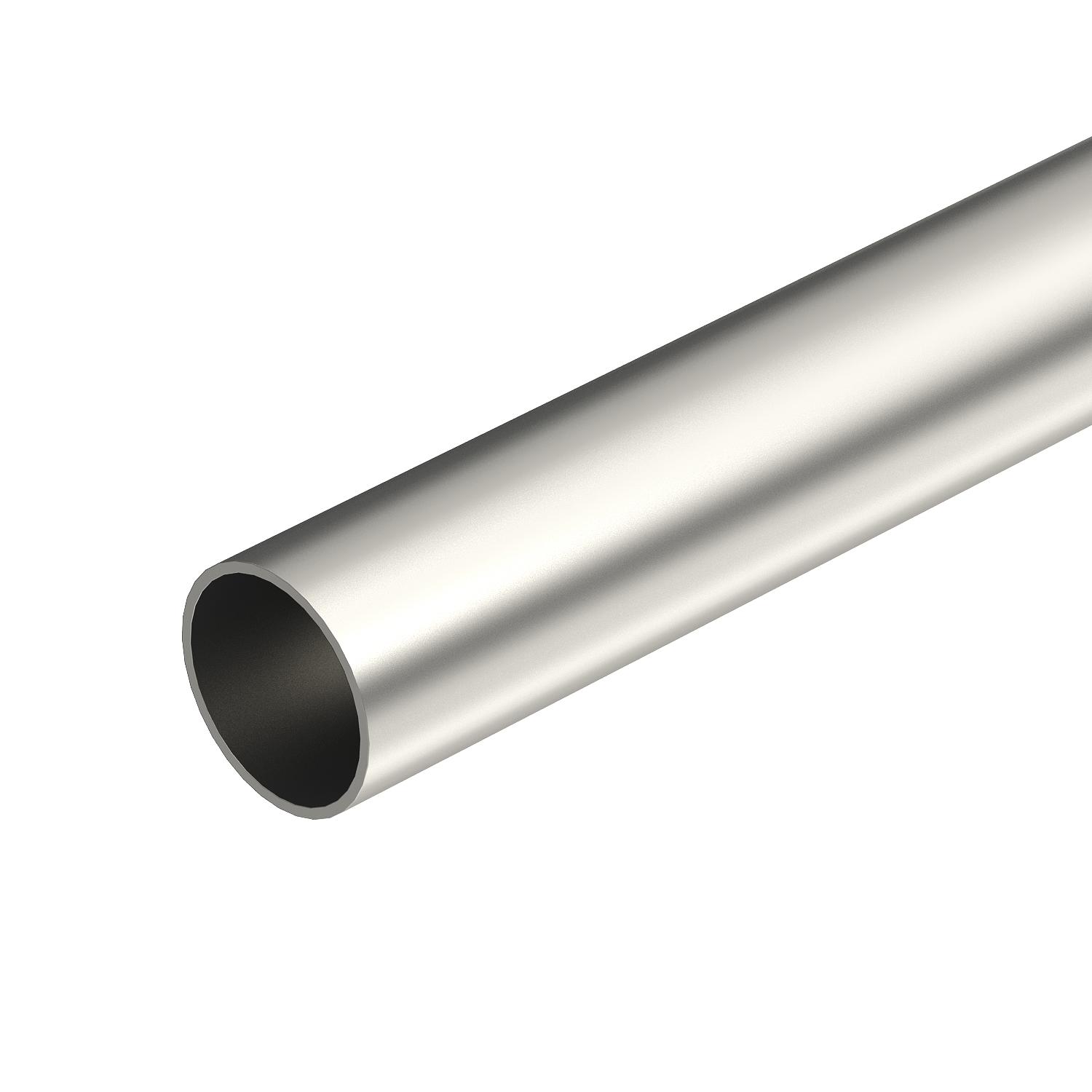

Stainless steel pipe, V2A
Item no. 2046720 | EAN 4012195923640
- Product description
-
Product descriptionElectrical installation pipe without threaded ends to EN 61386-1 for mechanical protection of cables. With burr-free inner wall. Corrosion protection class 4 (high).
Classification according to DIN EN 61386-1: 555711404010
-
- Technical data
-
Technical data

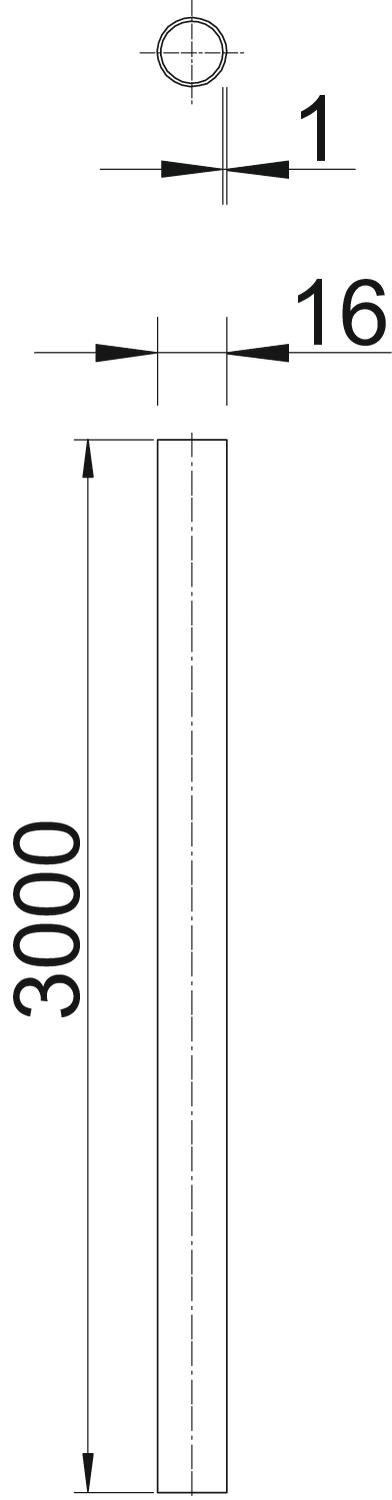

Brushed surface yes Cavity wall installation yes Classification code 55571 CO2 Footprint (GWP) Cradle-to-Gate 0,6153 kg CO₂e / 1 Meter Concealed yes Concrete installation yes Connection 1, installation pipe Pipe end Connection 2, installation pipe Pipe end Dimension Ø16, 3000mm Dimension D 16 mm Dimension L 3000 mm Dimension m (mm) M16 Dimension t 1 mm Installation in the earth yes Installation on wood yes Installation outdoors yes Length 3000 mm Machines and system installation yes Material Stainless steel Permitted temperature range, max. 400 °C Permitted temperature range, min. -45 °C Pipe version Rigid without thread Polished surface no Surface Bright, treated Surface-mounted yes Underfloor installation (bitumen, hot asphalt) yes Underfloor installation (screed) yes With sleeve no - All types
-
System accessories
Products Types Item no.

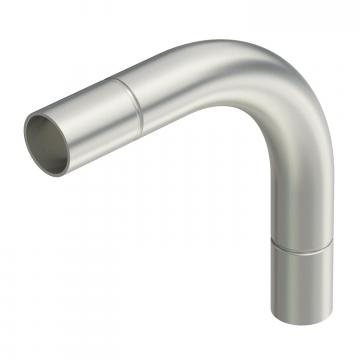

Stainless steel pipe bend, V4A
SB16W A4 2046760

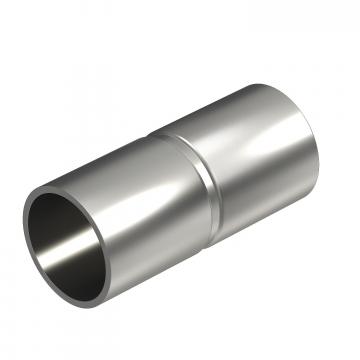

Stainless steel sleeve V4A
SV16W A4 2046770 Mounting accessories
Products Types Item no.

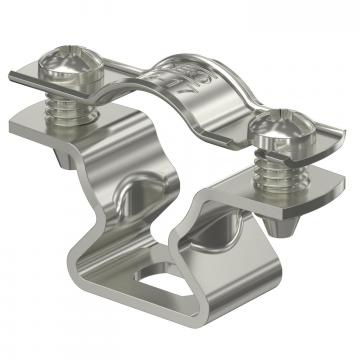

Spacer clip 733 A2
ASL 733 17 A2 1362982
Pipe end cap, splittable, metric, light grey
129 TB M16 2047812 - Downloads
-
