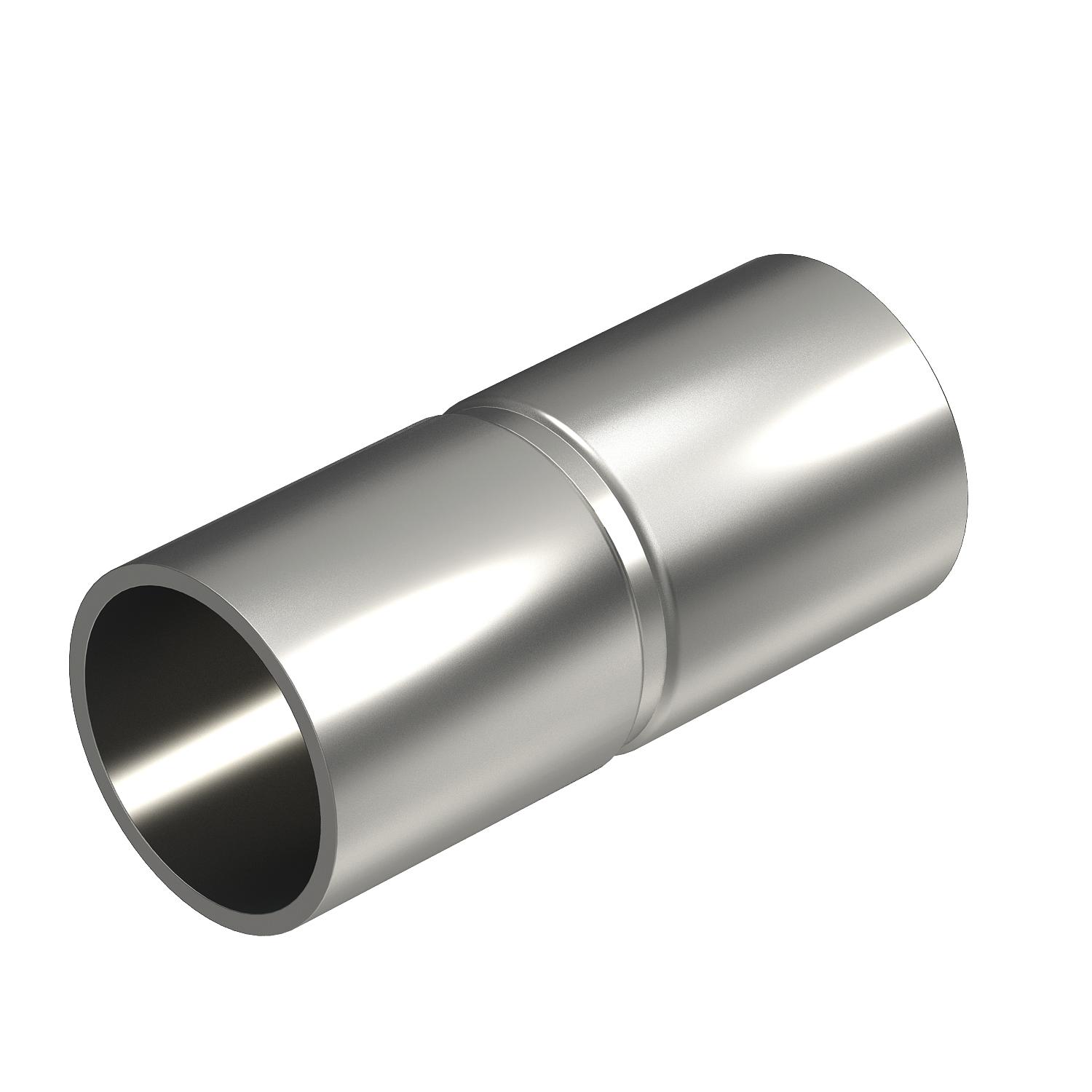

Stainless steel sleeve V4A

Item no. / Types

Dimension D

Dimension d

Product description

Product description

Accessory part: plug-in sleeve for the connections between electrical installation pipes. With burr-free inner wall.

Technical data

Brushed surface	yes
CO2 Footprint (GWP) Cradle-to-Gate	0,1211 kg CO₂e / 1 Piece
Dimension	Ø16mm
Dimension D	18,2 mm
Dimension d	16,2 mm
Dimension L	50 mm
Dimension l	25 mm
Dimension m (mm)	M16
Dimension t	1 mm
for pipe diameter	16 mm
Halogen-free	yes

Length	50 mm
Material	Stainless steel
Permitted temperature range, max.	400 °C
Permitted temperature range, min.	-45 °C
Polished surface	no
Size	16
Surface	Bright, treated
Two-part	no
Version for	Connector
With inspection opening and lid	no

All types

All types

Types	Dimension D	Dimension d	Item no.
SV16W A4	18.2 mm	16.2 mm	2046770
SV20W A4	22.2 mm	20.2 mm	2046771
SV25W A4	27.2 mm	25.2 mm	2046772
SV32W A4	34.7 mm	32.2 mm	2046773
SV40W A4	42.7 mm	40.2 mm	2046774
SV50W A4	52.8 mm	50.2 mm	2046775
SV63W A4	65.8 mm	63.2 mm	2046776
