Sprint screw, with Philips screw 6.5 | Panhead | 3.5 | 35

Sprint screw, with Philips screw

Item no. 3195058 | EAN 4012195274995

Item no. / Types

Head diameter

Head shape	Panhead

Dimension D

Dimension L

Product description

Product description

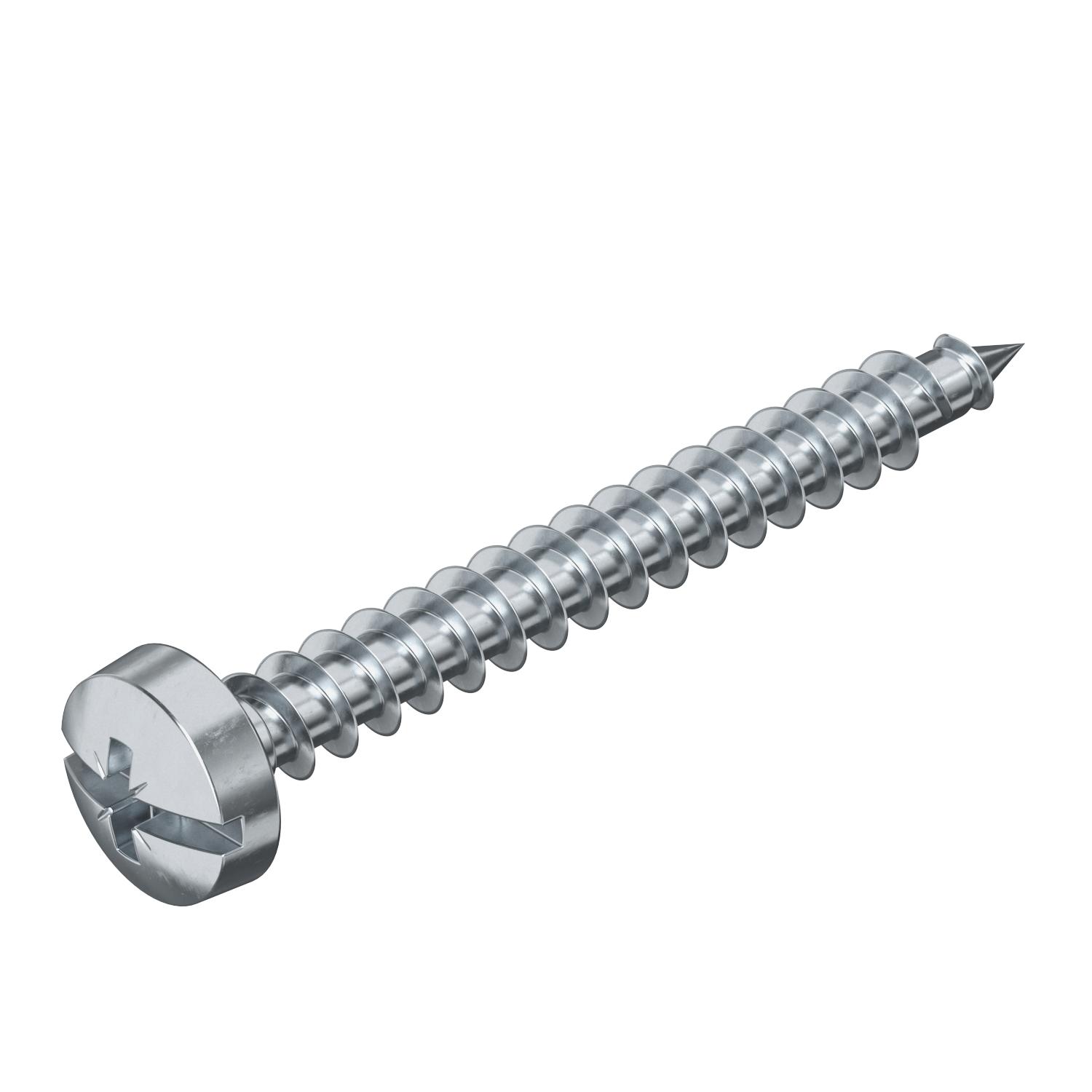

Hardened steel, electrogalvanised and Hostaflon-coated. Pan head with combined Phillips and slotted head (Pozidriv size 2 except Ø 6 mm Pozidriv size 3).

The use of Sprint screws leads to considerably reduced screw-in times compared with standard screws. This noticeable advantage comes from the point with the first thread, which leads on to the double thread beyond.

Areas of use: wood, chipboard, Rigips panels, plastic anchors.

Technical data

Technical data

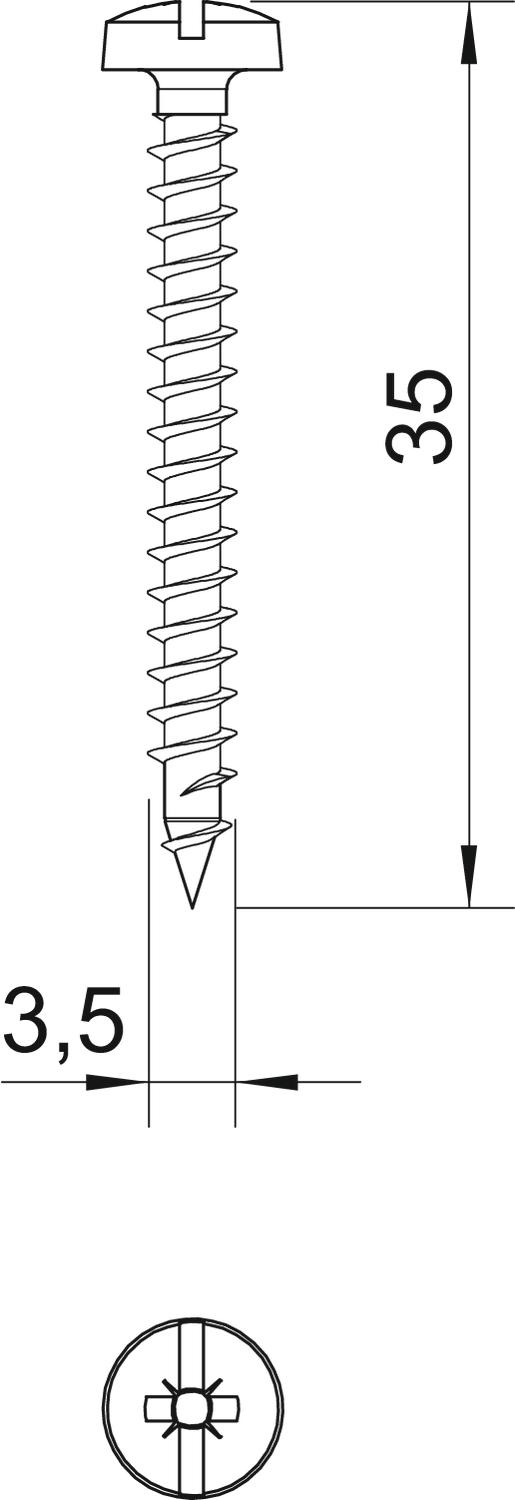

Dimension	3,5x35mm
Dimension D	3,5 mm
Dimension L	35 mm
Hardened	yes
Head diameter	6,5 mm
Head shape	Panhead

Length	35 mm
Material	Steel
Screw system	Combination slot
Surface	Electrogalvanized
Thickness	3,5 mm
Two-compartment	yes

All types

All types

Types	Head diameter	Head shape	Dimension D	Dimension L	Item no.
4758 3.5x35	6.5 mm	Panhead	3.5 mm	35 mm	3195058
4758 4.0x15	7.5 mm	Panhead	4 mm	15 mm	3195201
4758 4.0x20	7.5 mm	Panhead	4 mm	20 mm	3195228
4758 4.0x25	7.5 mm	Panhead	4 mm	25 mm	3195236
4758 4.0x30	7.5 mm	Panhead	4 mm	30 mm	3195244
4758 4.0x35	7.5 mm	Panhead	4 mm	35 mm	3195252
4758 4.0x40	7.5 mm	Panhead	4 mm	40 mm	3195260
4758 4.0x45	7.5 mm	Panhead	4 mm	45 mm	3195279
4758 4.0x50	7.5 mm	Panhead	4 mm	50 mm	3195287
4758 4.5x30	8.2 mm	Panhead	4.5 mm	30 mm	3195430
4758 4.5x35	8.2 mm	Panhead	4.5 mm	35 mm	3195449
4758 4.5x40	8.2 mm	Panhead	4.5 mm	40 mm	3195457
4758 4.5x45	8.2 mm	Panhead	4.5 mm	45 mm	3195465
4758 4.5x50	8.2 mm	Panhead	4.5 mm	50 mm	3195473
4758 5.0x30	9.5 mm	Panhead	5 mm	30 mm	3195635
4758 5.0x35	9.5 mm	Panhead	5 mm	35 mm	3195643
4758 5.0x40	9.5 mm	Panhead	5 mm	40 mm	3195651
4758 5.0x50	9.5 mm	Panhead	5 mm	50 mm	3195686
4758 5.0x60	9.5 mm	Panhead	5 mm	60 mm	3195694
4758 6.0x30	12 mm	Panhead	6 mm	30 mm	3195910
4758 6.0x40	12 mm	Panhead	6 mm	40 mm	3195929
4758 6.0x50	12 mm	Panhead	6 mm	50 mm	3195937
4758 6.0x60	12 mm	Panhead	6 mm	60 mm	3195945
