Spacer sleeve 25 | 10 | M6

morepic-1

morepic-2

Spacer sleeve

Item no. 3415066 | EAN 4012195303619

Item no. / Types

Length

WAF

Thread

Product description

Product description

Continuous internal thread.

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	0,0487 kg CO₂e / 1 Piece
Continuous thread	yes
Dimension	M6x25mm
Dimension 1, metric	6
Dimension 2, metric	6
Dimension L	25 mm
Hexagonal	yes

Length	25 mm
Material	Die-cast zinc
Shape	Hexagonal
Surface	Electrogalvanized
Thread	M6
WAF	10

All types

All types

Types	Length	WAF	Thread	Item no.
965 M6X20 G	20 mm	10	M6	3415031
965 M6X25 G	25 mm	10	M6	3415066
965 M6X30 G	30 mm	10	M6	3415082
965 M6X40 G	40 mm	10	M6	3415104
965 M6X50 G	50 mm	10	M6	3415120
965 M8X20 G	20 mm	13	M8	3415147
965 M8X30 G	30 mm	13	M8	3415163

Downloads

Data sheet 965 M6X25 G / 3415066 , 0.18MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

EU declaration of conformity 965 M6X25 G / 3415066 , 0.05MB , pdf

Download

Product graphic 965 M6X25 G / 3415066, 46.58 kB, jpg

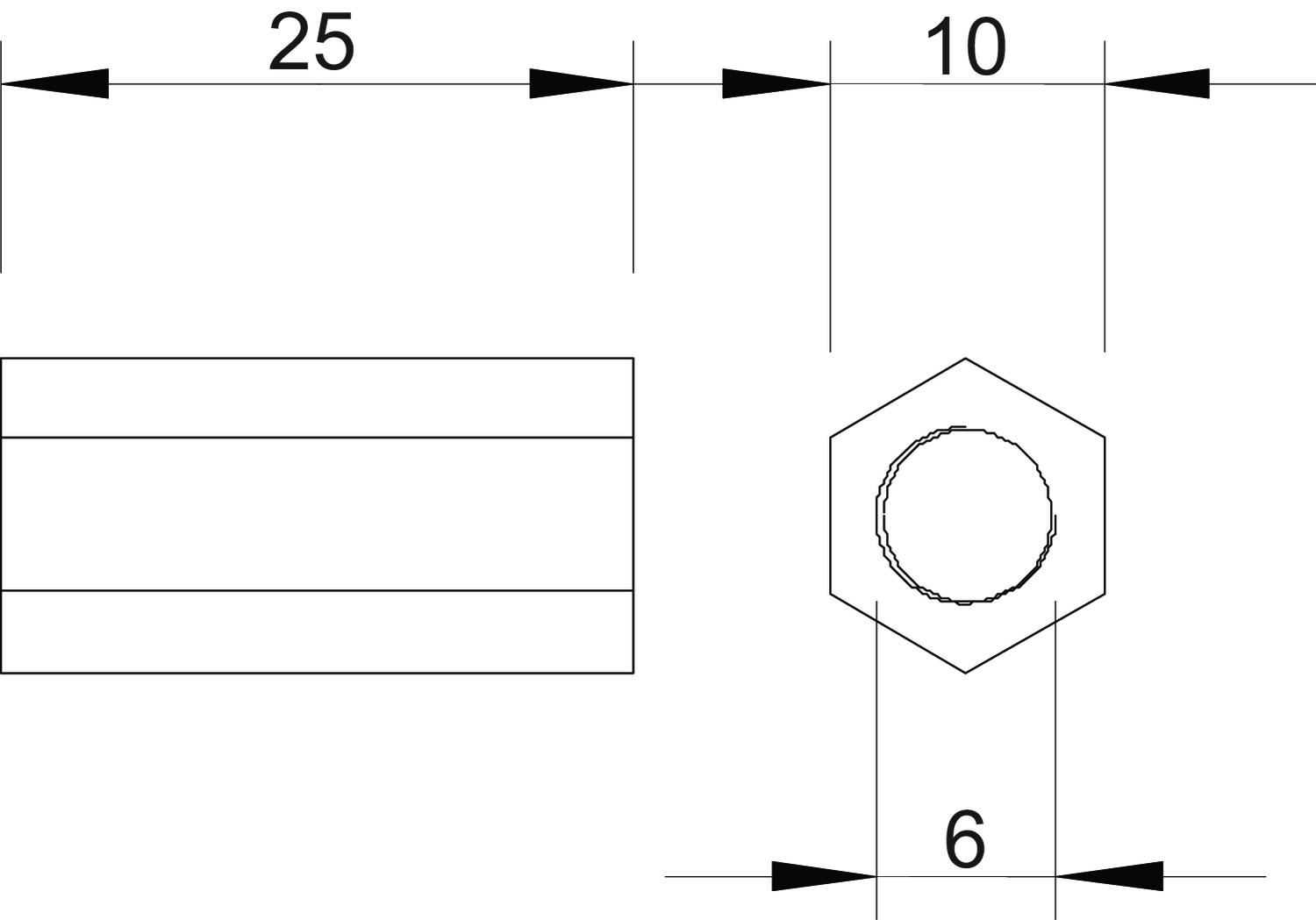

Scale drawing 965 M6X25 G / 3415066, 45.22 kB, jpg

965 M6X25 G / 3415066
