Spacer sleeve 20 | 10 | M6
morepic-1 morepic-2

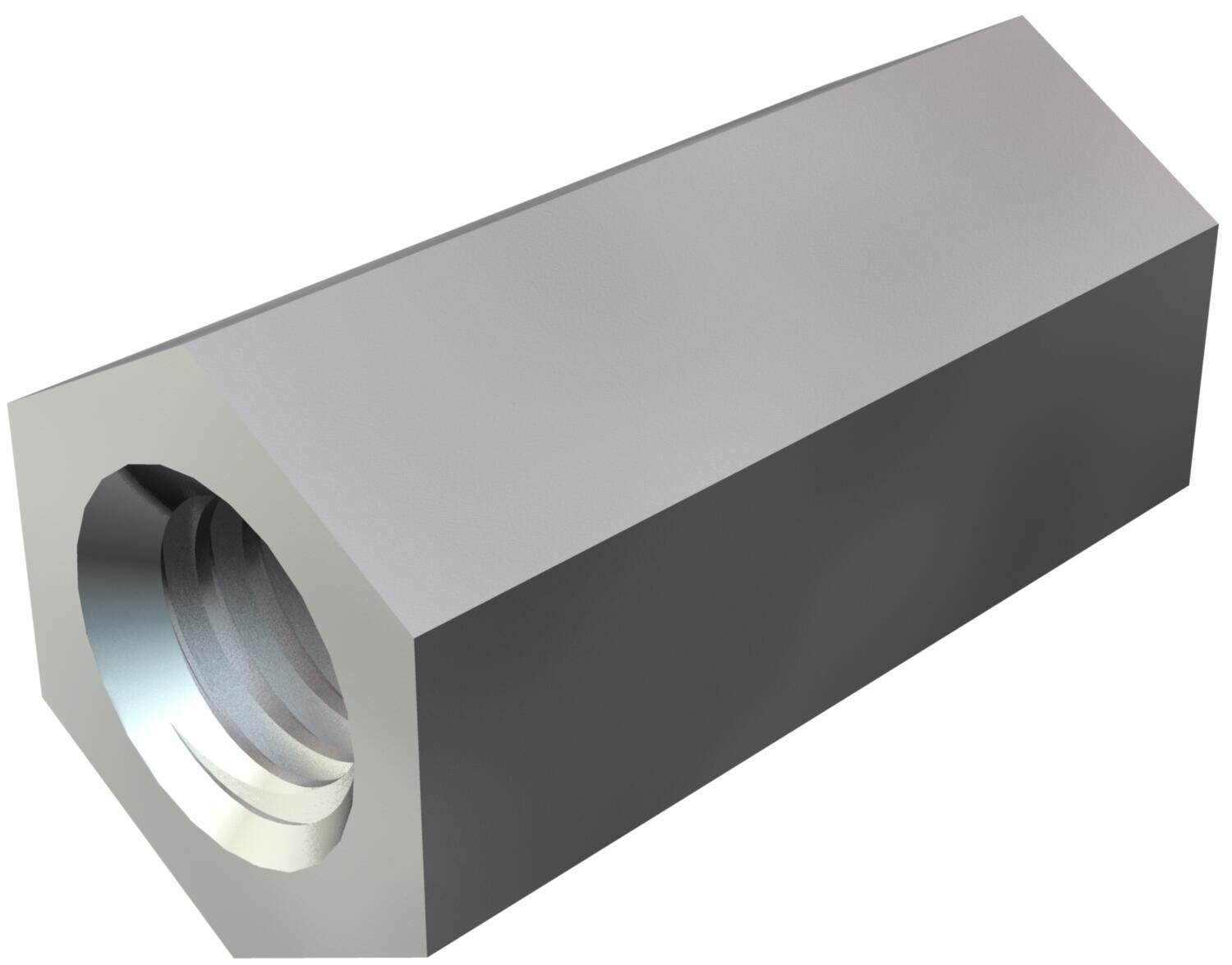

Spacer sleeve

Item no. 3415031 | EAN 4012195303558

Product description
Product description
Continuous internal thread.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate 0,0438 kg CO₂e / 1 Piece
Continuous thread yes

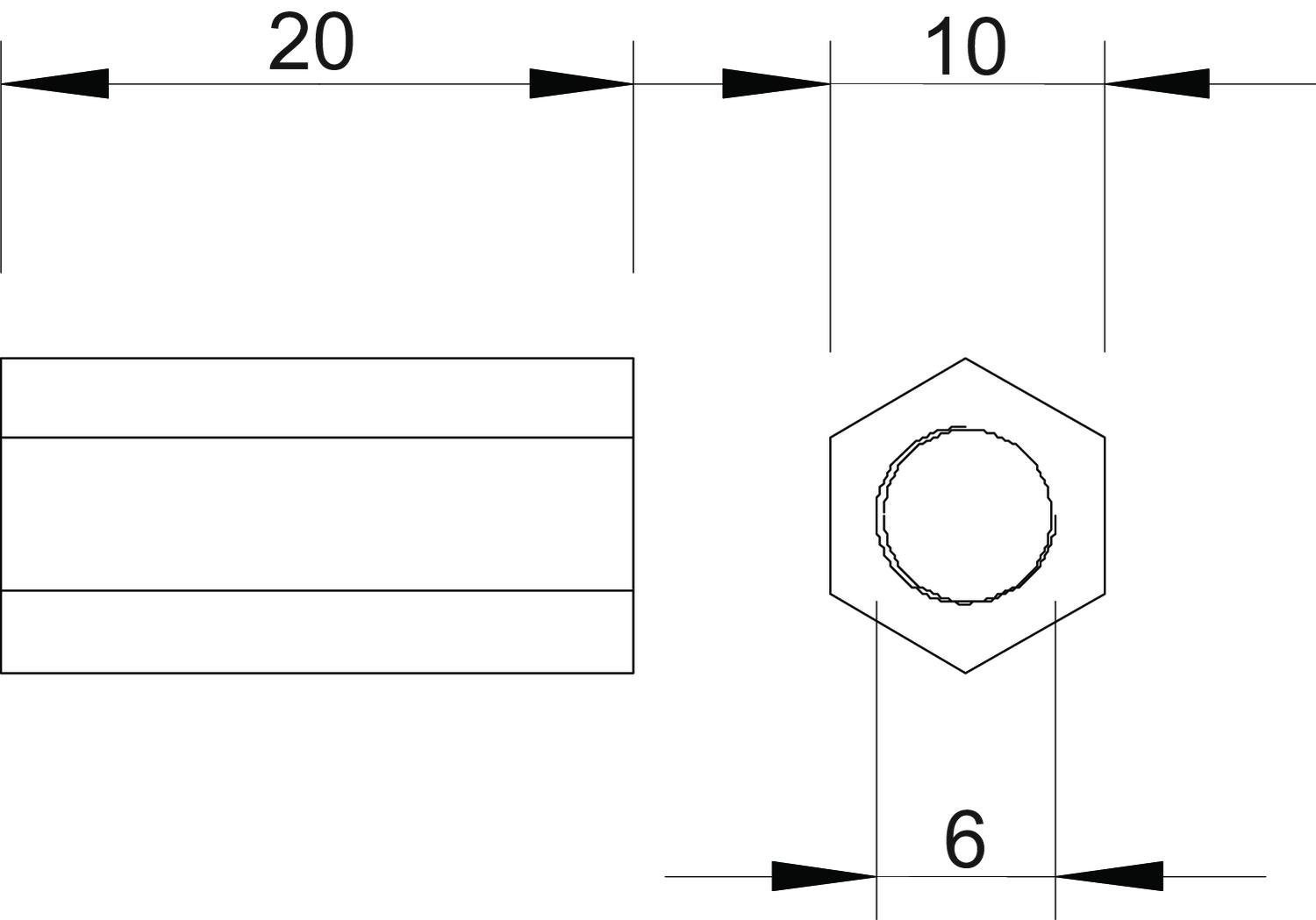

Dimension M6x20mm
Dimension 1, metric 6
Dimension 2, metric 6
Dimension L 20 mm
Hexagonal yes
Length 20 mm
Material Die-cast zinc
Shape Hexagonal
Surface Electrogalvanized
Thread M6
WAF 10
All types

All types

Types Length WAF Thread Item no.
965 M6X20 G 20 mm 10 M6 3415031
965 M6X25 G 25 mm 10 M6 3415066
965 M6X30 G 30 mm 10 M6 3415082
965 M6X40 G 40 mm 10 M6 3415104
965 M6X50 G 50 mm 10 M6 3415120
965 M8X20 G 20 mm 13 M8 3415147
965 M8X30 G 30 mm 13 M8 3415163
