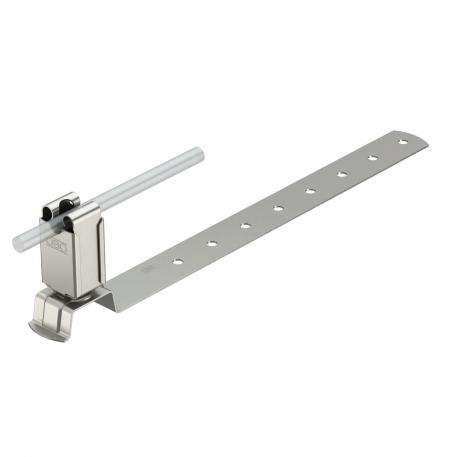

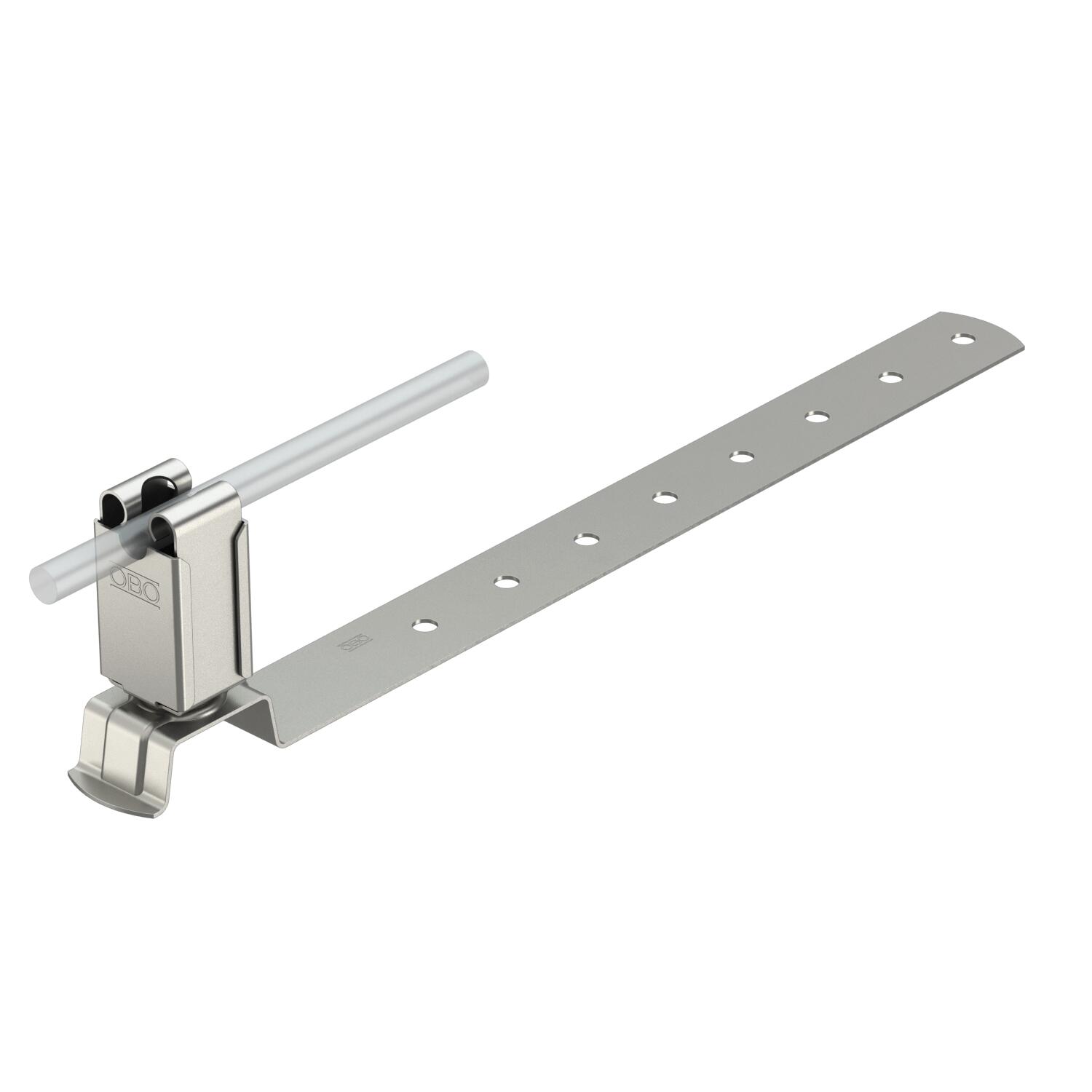

Roof conductor holder for tiled roofs, Rd 8
Item no. 5215582 | EAN 4012195785019
- Product description
-
Product description• Conductor holder from stainless steel (V2A)
• Including drill hole in bottom section for quick installation
- Technical data
-
Technical data

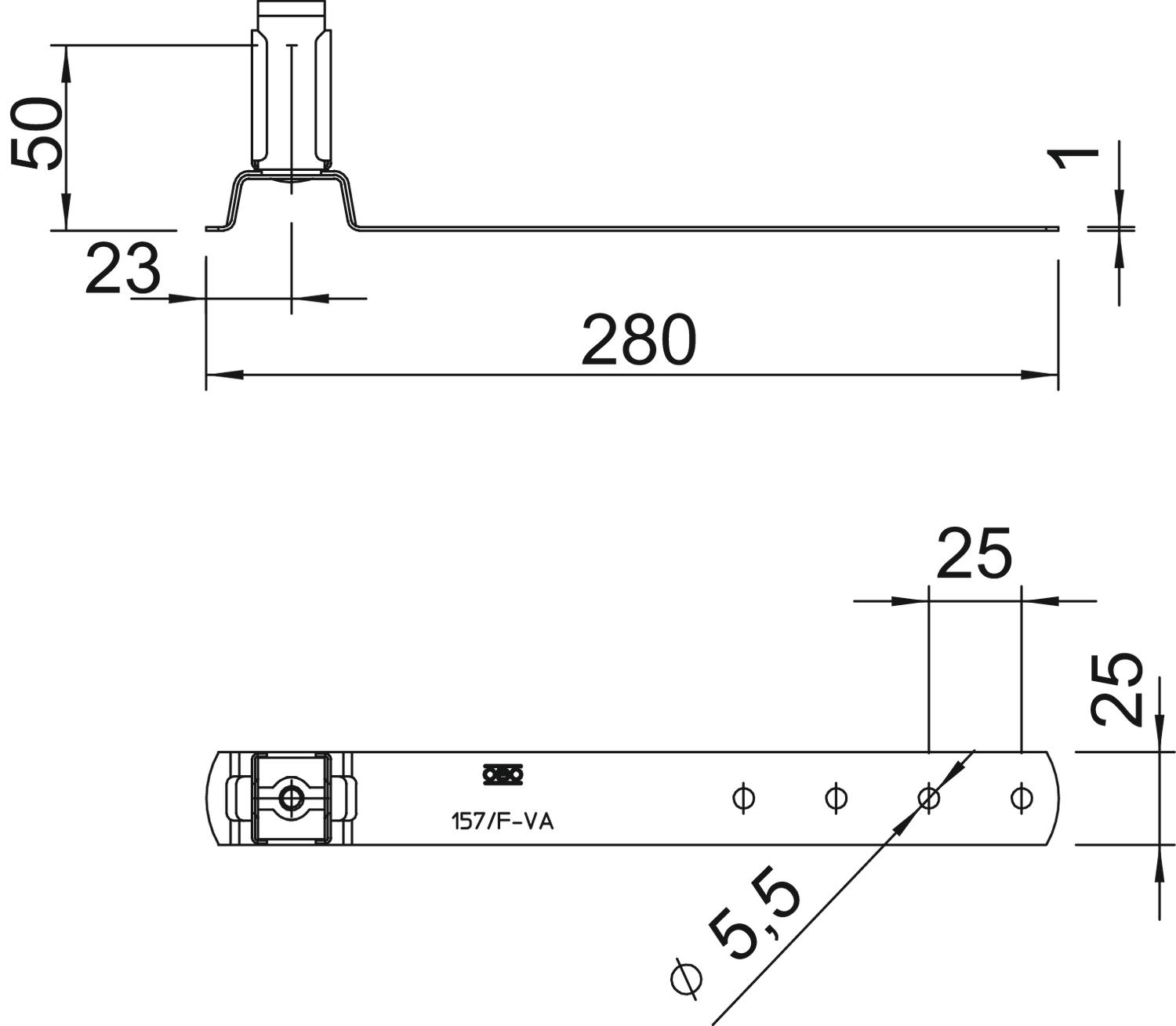

CO2 Footprint (GWP) Cradle-to-Gate 0,4749 kg CO2e / 1 Piece Conductor diameter, max. 8 Conductor diameter, min. 8 Dimension 35 mm Dimension L 280 mm Fit Rd 8 mm Length 280 mm Material Stainless steel Mounting height 50 mm - All types
- Downloads
-
Data sheet 157 F-VA 280 35 / 5215582 , 0.15MB , pdfEU declaration of conformity 157 F-VA 280 35 / 5215582 , 0.06MB , pdf
