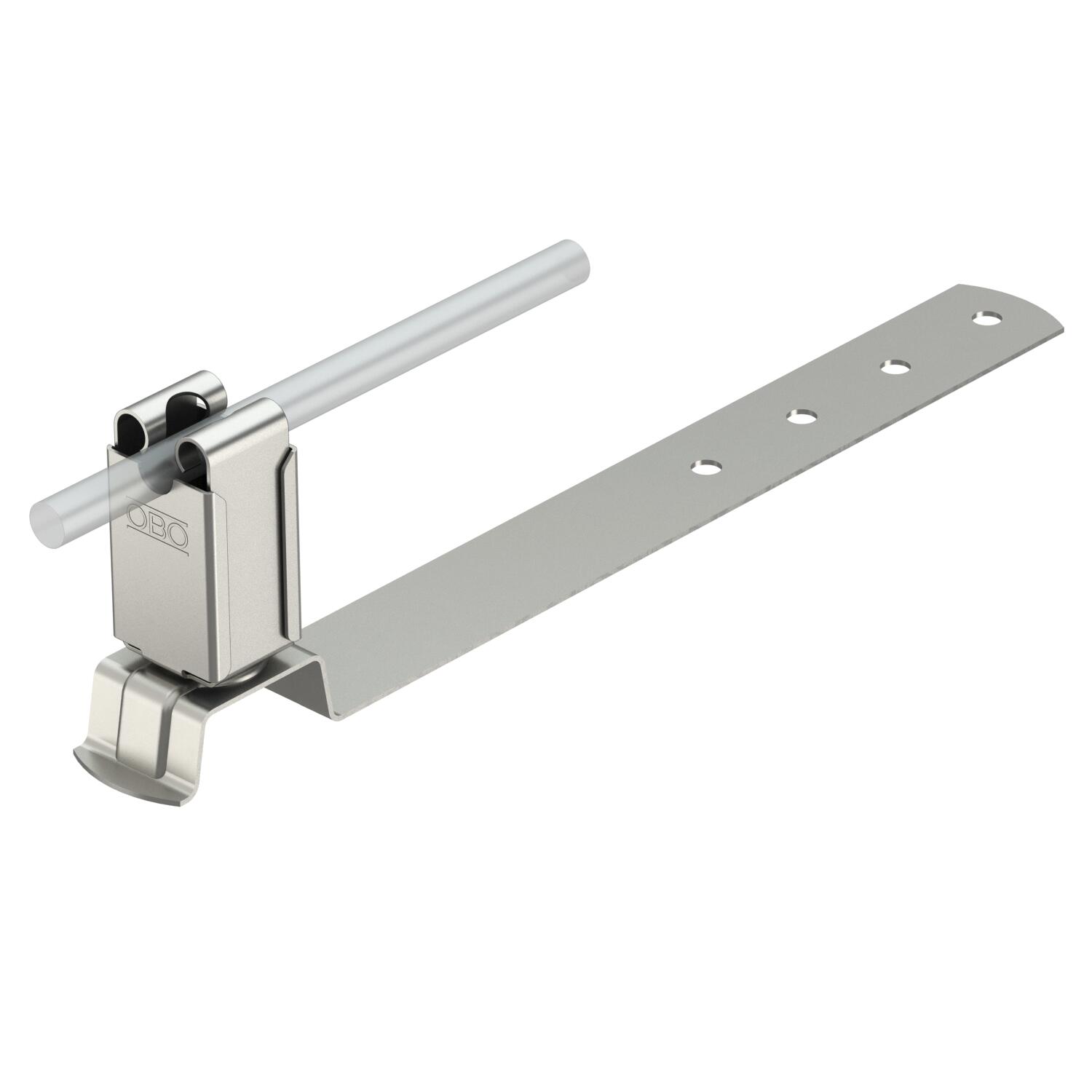

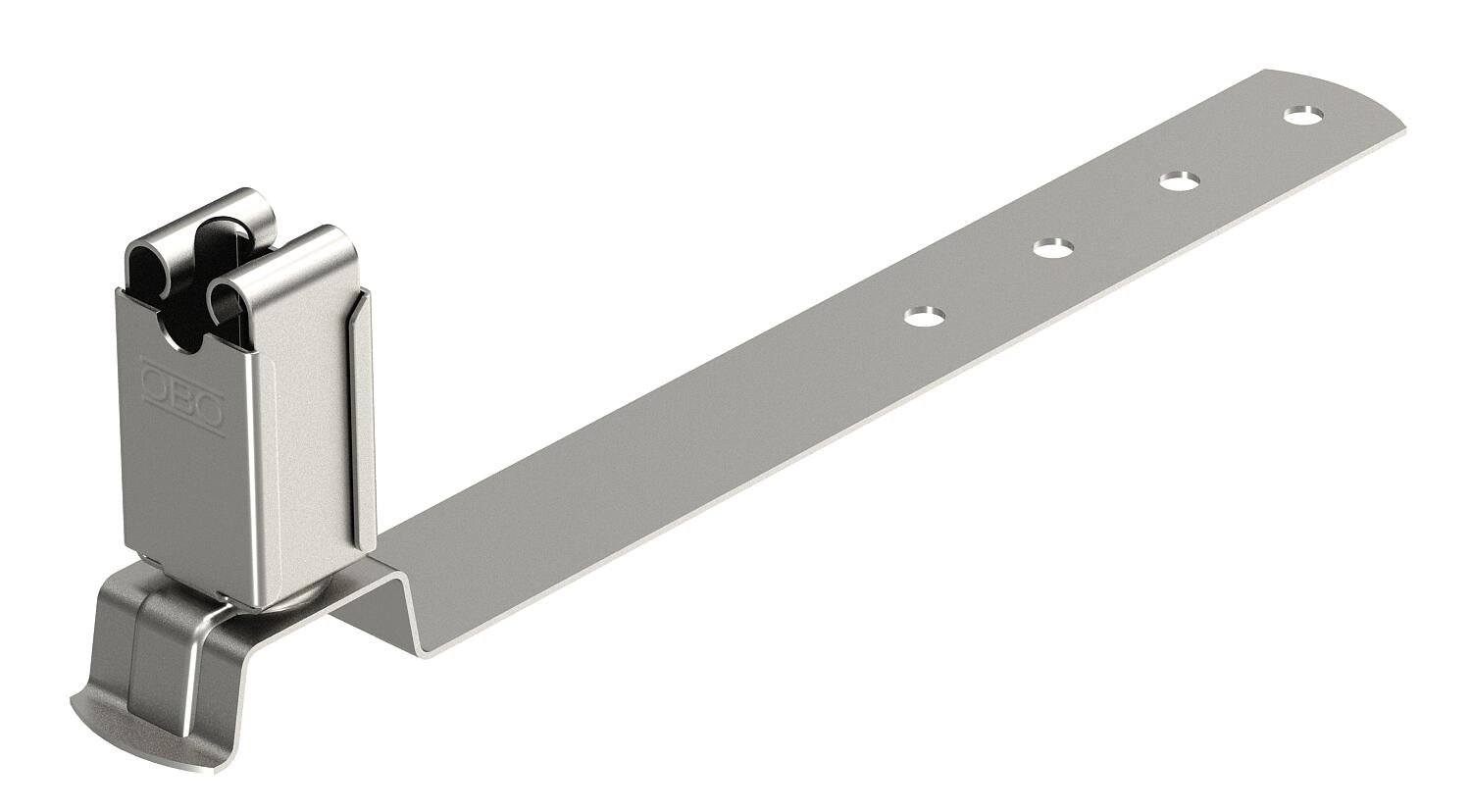

Roof conductor holder for tiled roofs, Rd 8
Item no. 5215555 | EAN 4012195784982
- Product description
-
Product description• Conductor holder from stainless steel (V2A)
• Including drill hole in bottom section for quick installation
- Technical data
-
Technical data

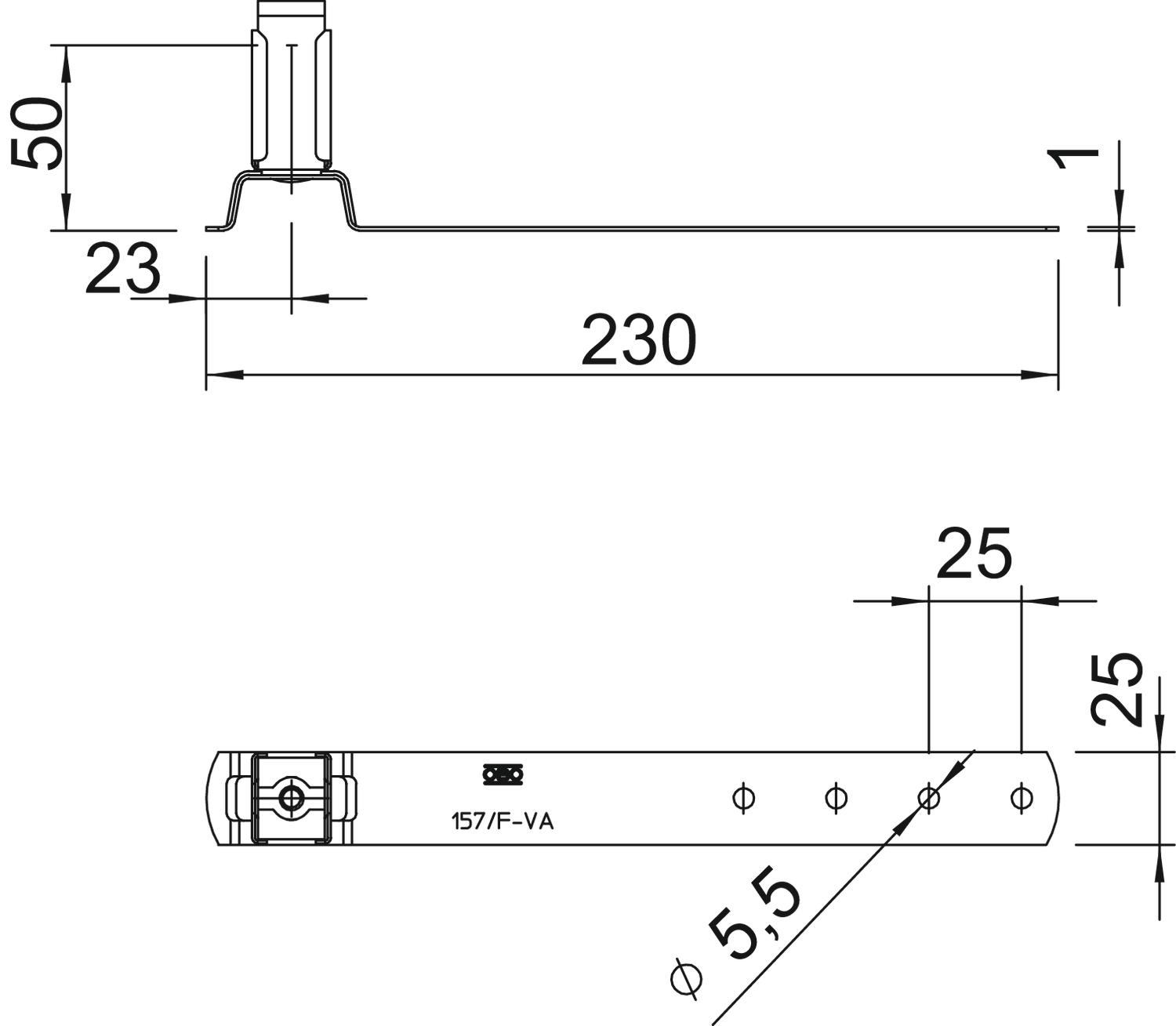

CO2 Footprint (GWP) Cradle-to-Gate 0,3994 kg CO2e / 1 Piece Conductor diameter, max. 8 Conductor diameter, min. 8 Dimension 35 mm Dimension L 230 mm Fit Rd 8 mm Length 230 mm Material Stainless steel Mounting height 50 mm - All types
- Downloads
-
Data sheet 157 F-VA 230 35 / 5215555 , 0.15MB , pdfEU declaration of conformity 157 F-VA 230 35 / 5215555 , 0.06MB , pdf
