Reducer / stop-end DD 100 | 85
morepic-1 morepic-2 video-1

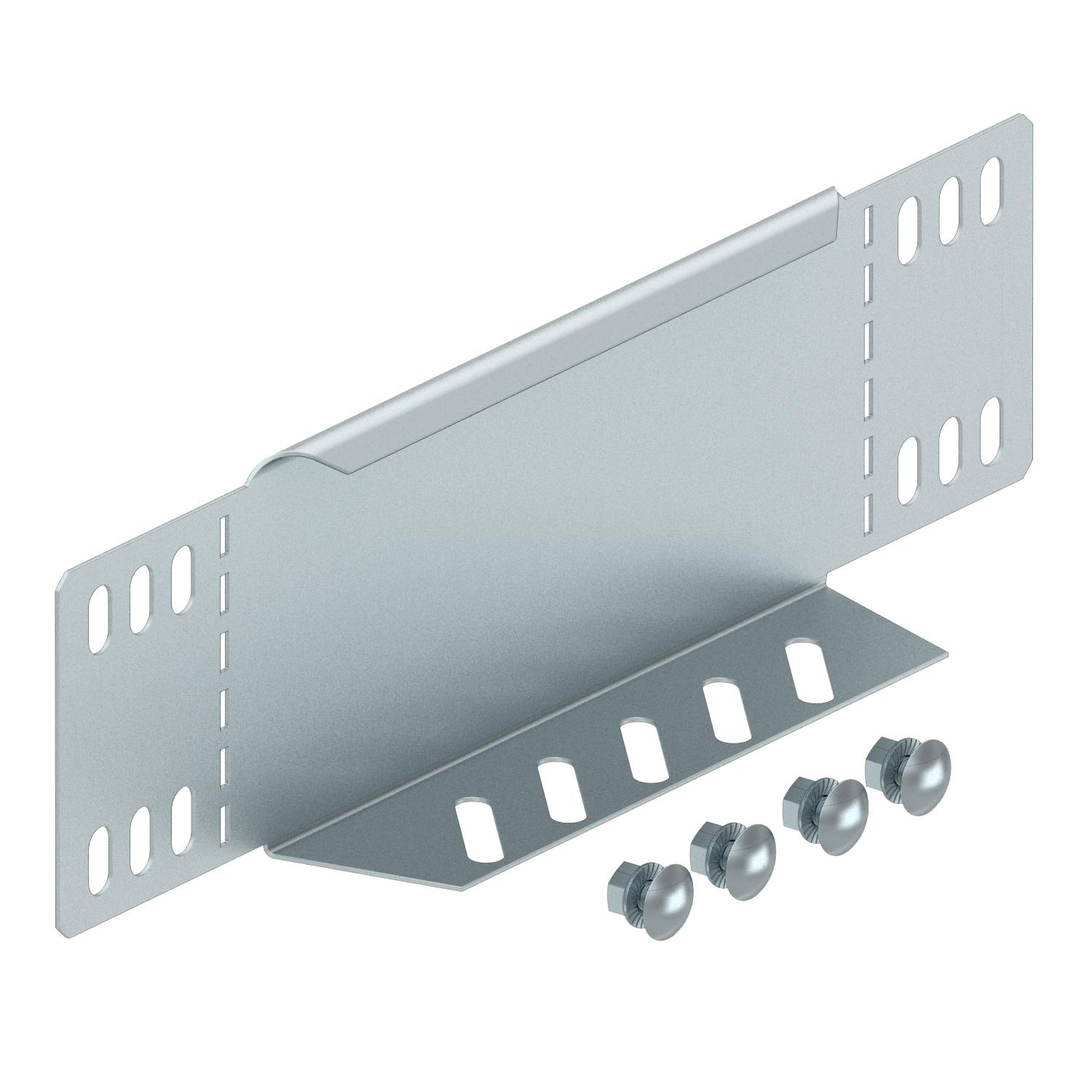

Reducer / stop-end DD

Item no. 7107315 | EAN 4012196240678

85 mm
Product description
Product description
Reducer/stop-end for cable trays with side height 85 mm.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour zinc

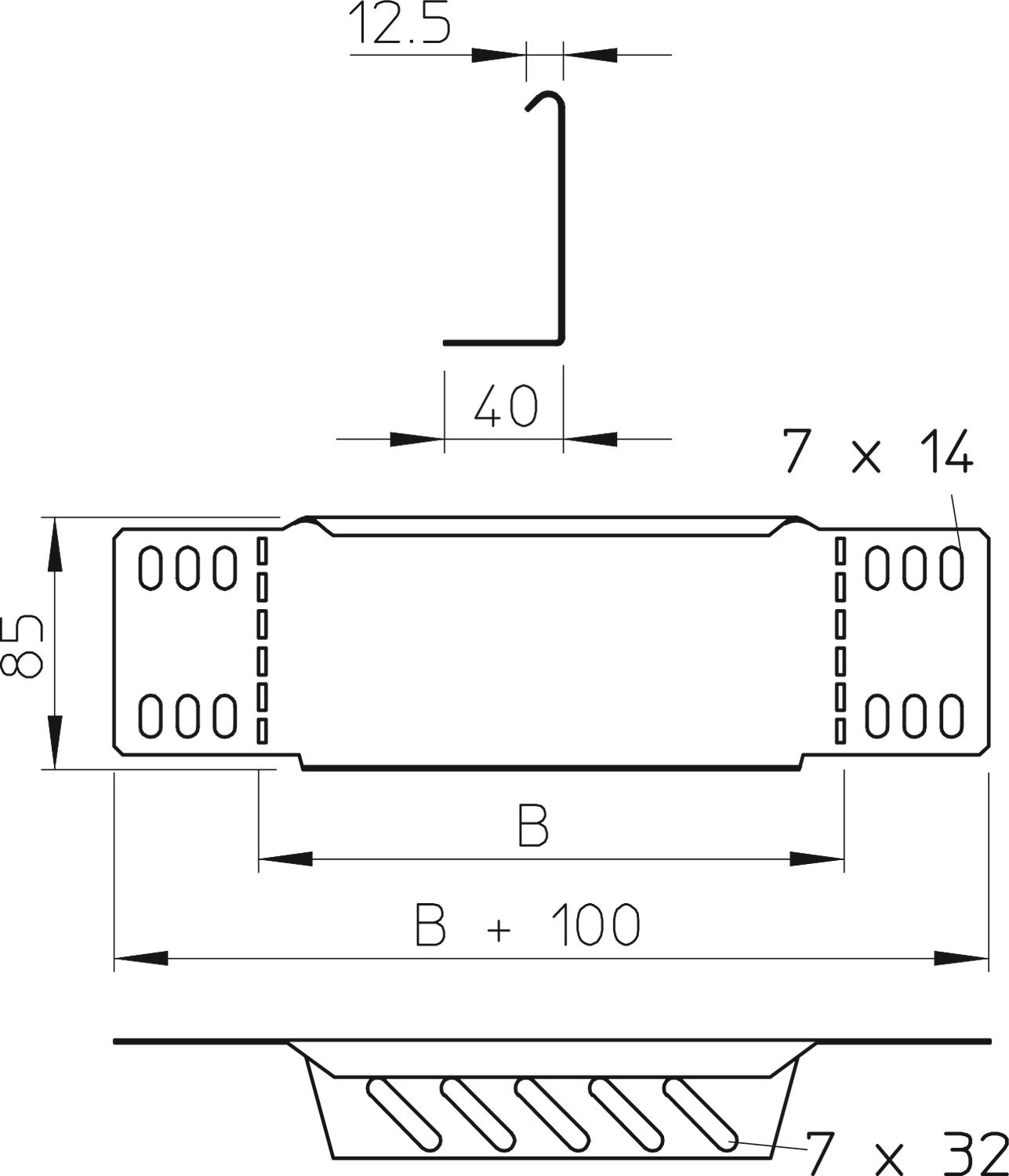

Dimension 85x100
Dimension B 100 mm
Height 3 in
Height 85 mm
Maintain electrical functions no
Material Steel
Plate thickness 1 mm
Rustproof steel, pickled no
Surface Strip galvanised zinc/aluminium, Double Dip
Width 4 in
Width 100 mm
All types

All types

Types Width Height Item no.
RWEB 810 DD 100 mm 85 mm 7107315
RWEB 820 DD 200 mm 85 mm 7107331
RWEB 830 DD 300 mm 85 mm 7107366
RWEB 840 DD 400 mm 85 mm 7107382
RWEB 850 DD 500 mm 85 mm 7107404
RWEB 860 DD 600 mm 85 mm 7107420
Accessories

Mounting accessories

Products Types Item no.
Truss-head bolt with flange nut F Truss-head bolt with flange nut F FRSB 6x12 F 6406122
