Reducer/stop-end 60 A4 100 | 60
morepic-1 morepic-2 morepic-3

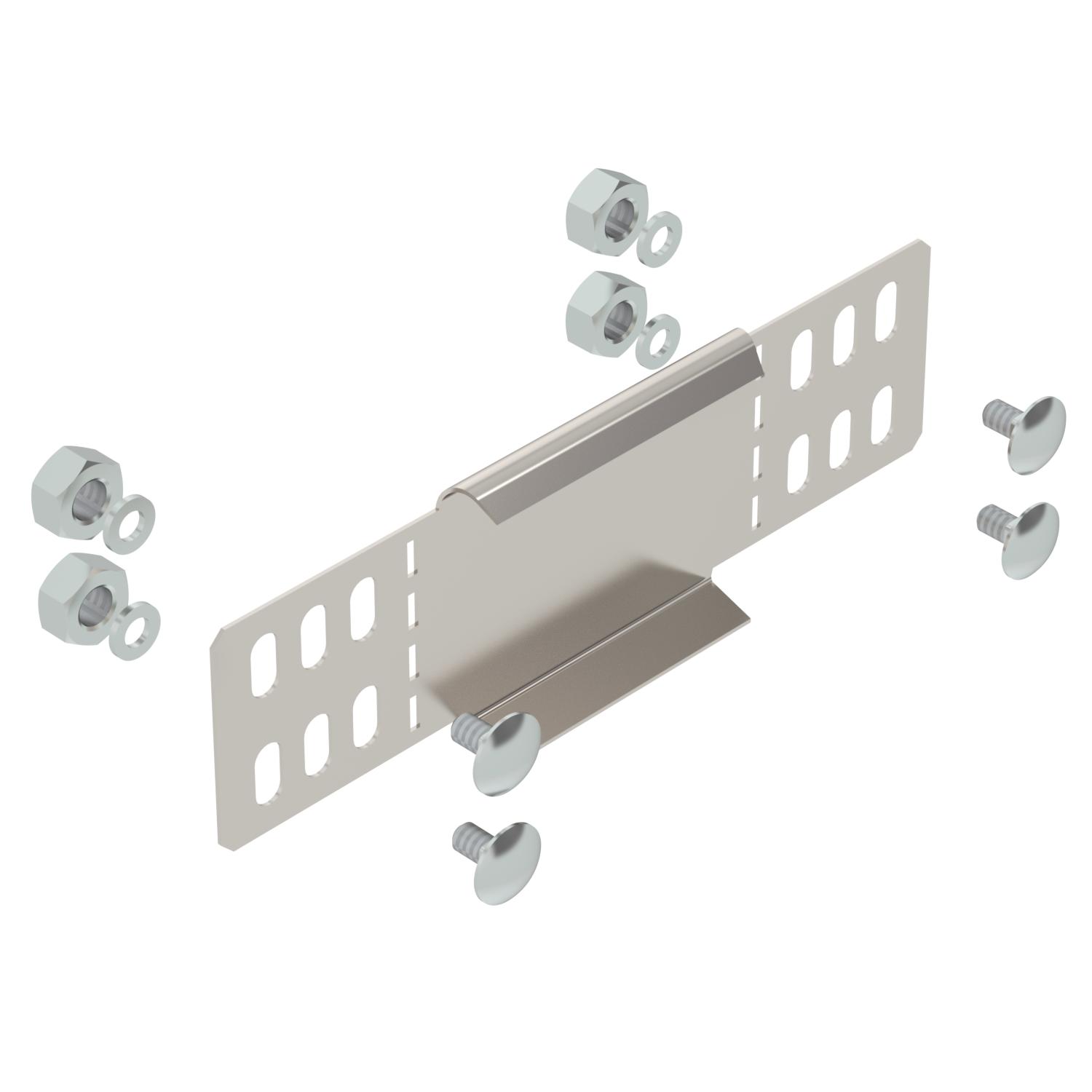

Reducer/stop-end 60 A4

Item no. 7109951 | EAN 4012196804078

60 mm
Product description
Product description
Reducer and end closure plate for cable trays with side height 60 mm.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour stainless steel
Connector version Integrated connector

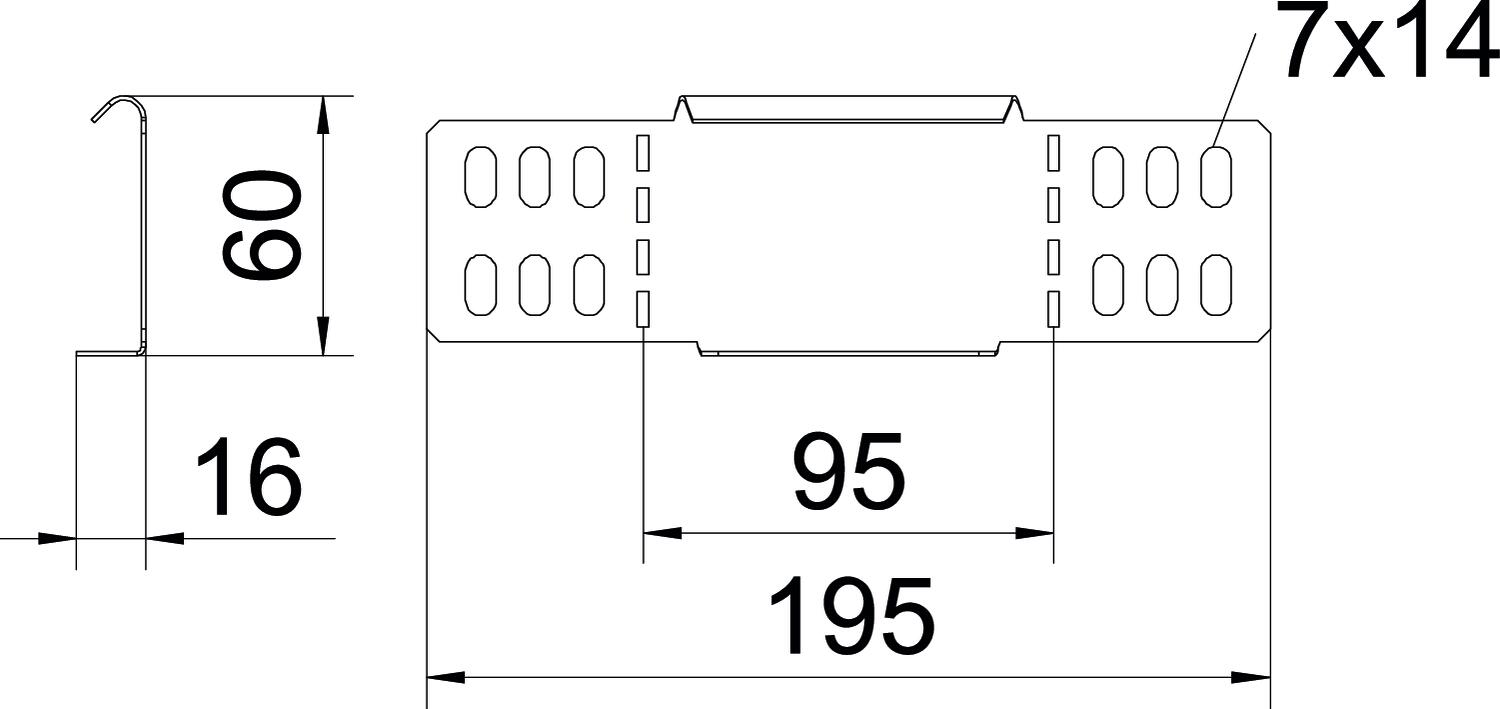

Dimension 60x100
Dimension B 95 mm
Height 60 mm
Height 2 in
Maintain electrical functions no
Material Stainless steel
Permitted temperature range, max. 120 °C
Permitted temperature range, min. -20 °C
Plate thickness 1 mm
Rustproof steel, pickled no
Surface Bright, treated
Wide-span version no
Width 100 mm
All types

All types

Types Width Height Item no.
RWEB 610 A4 100 mm 60 mm 7109951
RWEB 620 A4 200 mm 60 mm 7109953
RWEB 630 A4 300 mm 60 mm 7109955
RWEB 640 A4 400 mm 60 mm 7109957
RWEB 650 A4 500 mm 60 mm 7109959
RWEB 660 A4 600 mm 60 mm 7109961
Downloads

Download

Download
Download

EU declaration of conformity RWEB 610 A4 / 7109951 , 0.10MB , pdf
Download
REACH Declaration of conformity RWEB 610 A4 / 7109951 , 0.12MB , pdf
Download
RoHS Declaration of conformity RWEB 610 A4 / 7109951 , 0.13MB , pdf
Download

Download
Download

No invitation to tender text is available for this product.
