PYROPLUG® Box box insulation
Item no. 7202660 | EAN 4012196144013
- Product description
-

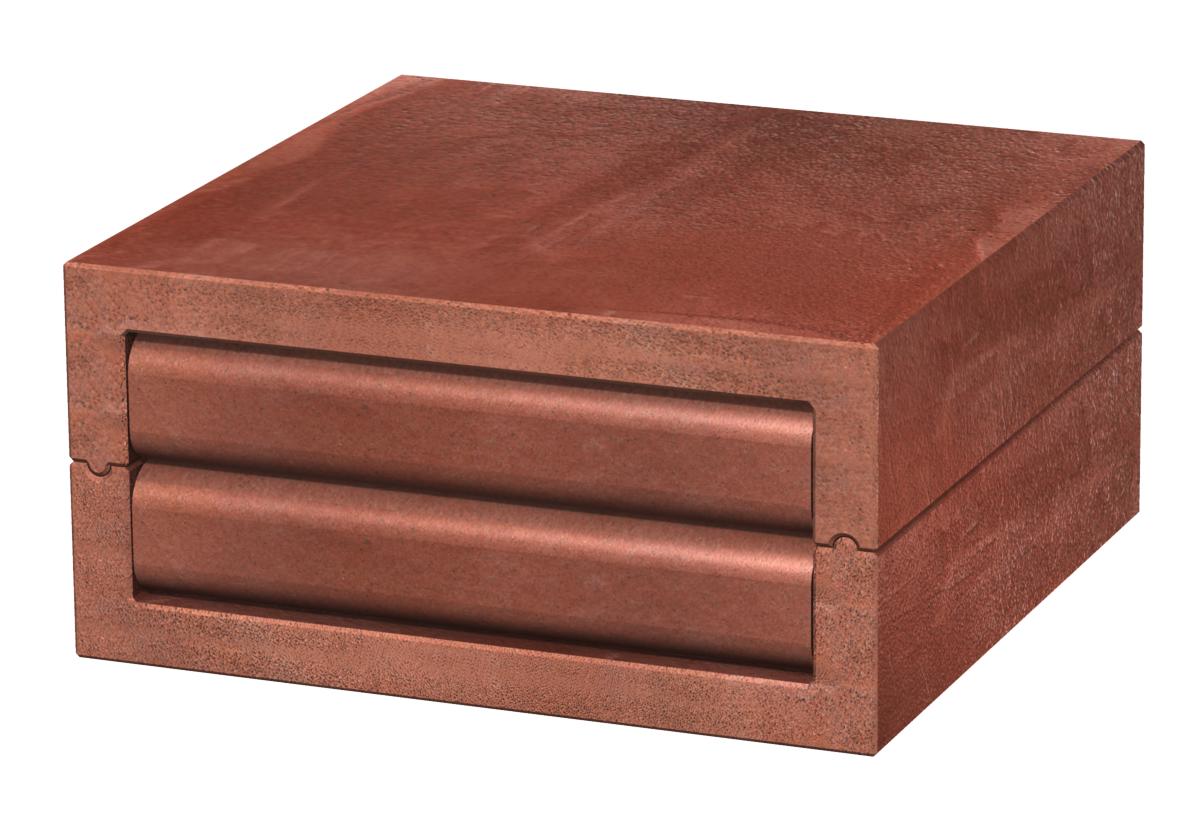

Product descriptionBox for cable insulation.
Consisting of a two-part, hard frame and two soft internal pieces. Protect the frame and internal pieces against water in order to guarantee safe foaming in case of fire. For interior application.
-
- Technical data
-
Technical data

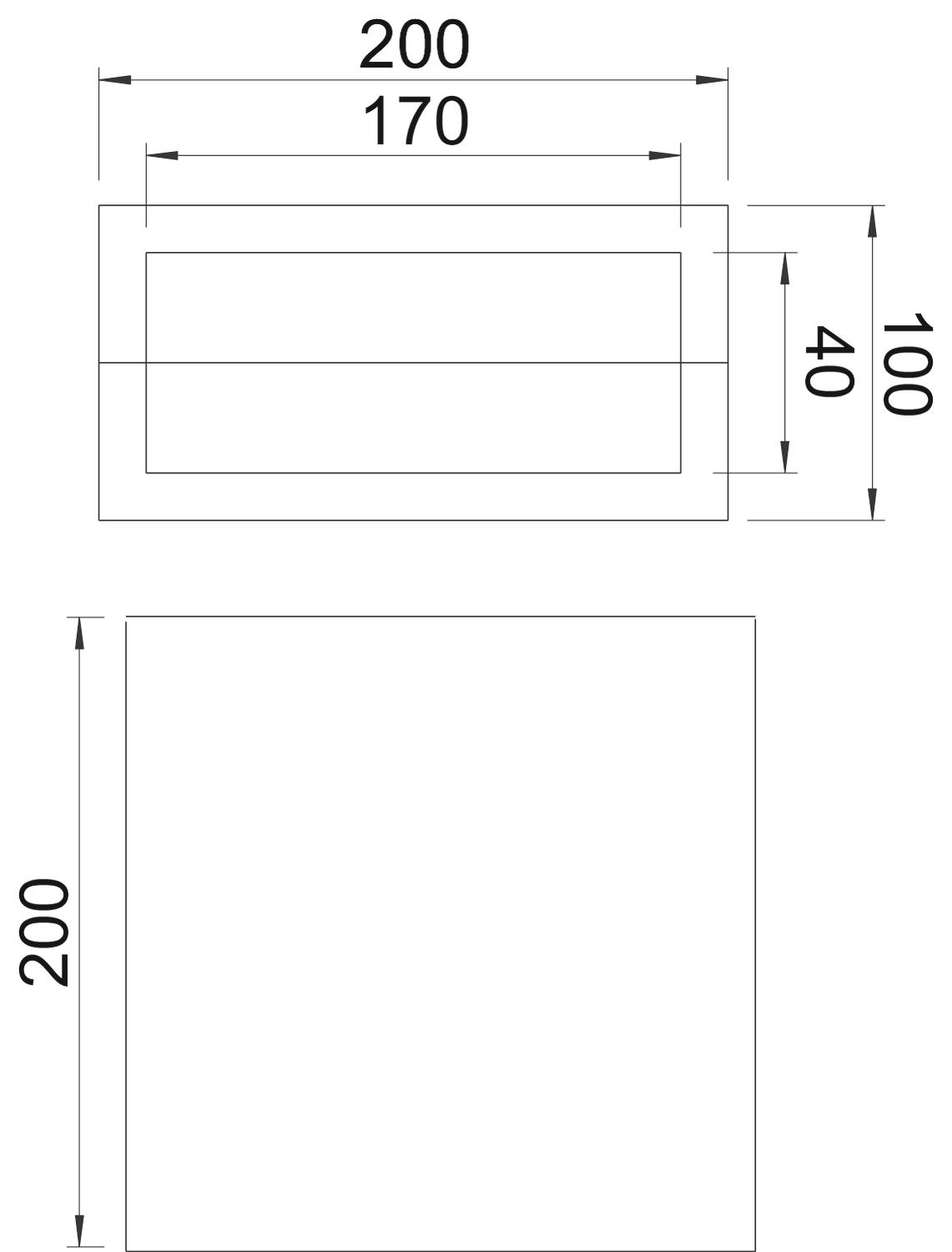

Accessories required yes Colour Red Dimension 200x200x100 Fire protection version Box body Height 100 mm Length 200 mm Material Permanently elastic, closed-pore foam Shape Rectangular Width 200 mm - All types
-
System accessories
Products Types Item no.
PYROPLUG® screed filler
FBA-SP 7202322
Identification plate DE
KS-S DE 7205425 Mounting accessories
Products Types Item no.
Support construction for insulations, with bracket
SKA 05 VZ 7202436
Support construction for insulations, with pendulum suspension
SKP 05 VZ 7202446 - Downloads
-
Data sheet FBA-F / 7202660 , 0.23MB , pdfSafety data sheet FBA-F / 7202660 , 0.10MB , pdfSelection aid Selection aid, insulation , 0.86MB , pdf
