PYROLINE® Con D BSK I90/E30 fire protection duct 1000 | 290 | 210 | 110 | 50

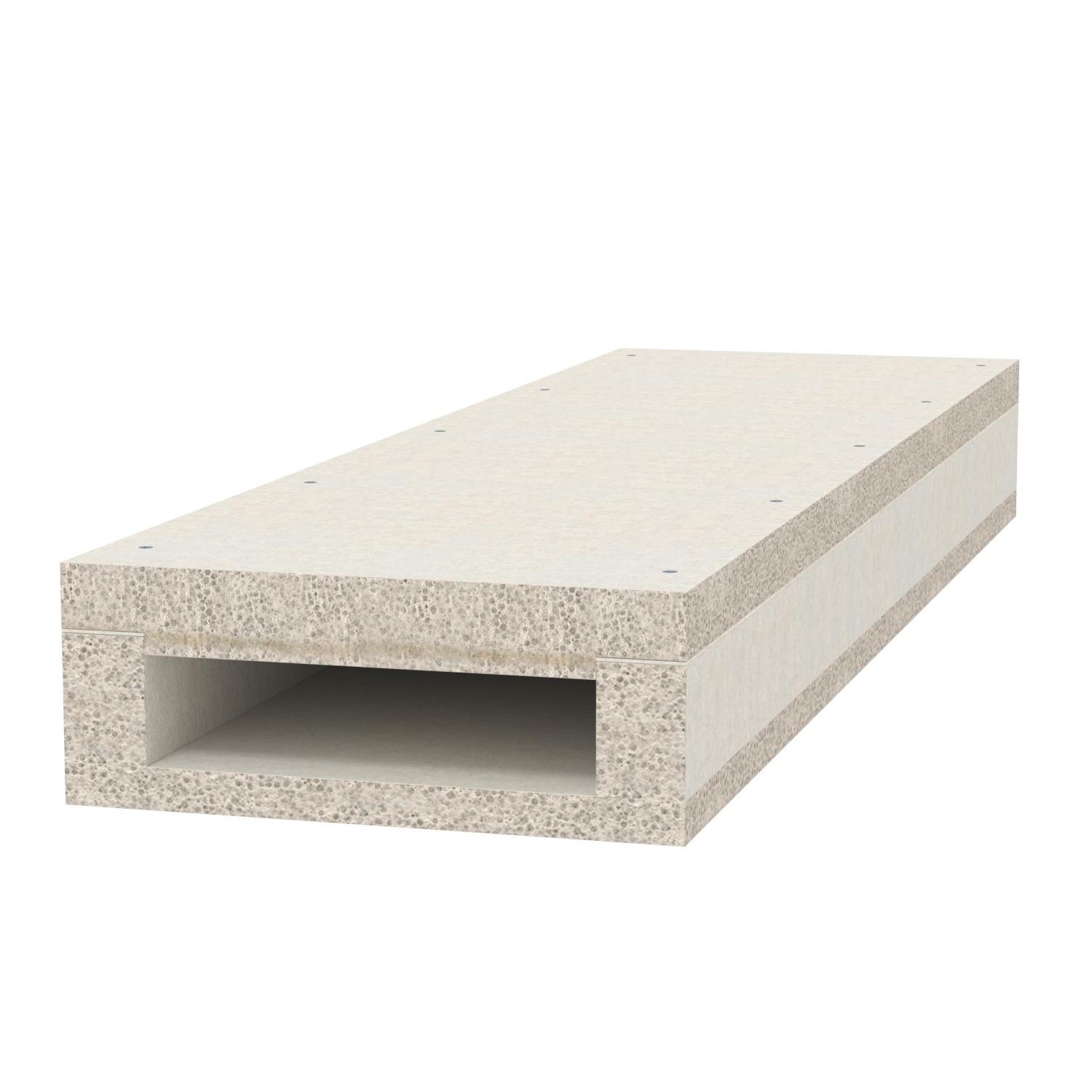

PYROLINE® Con D BSK I90/E30 fire protection duct

Item no. 7215141 | EAN 4012197308261

Item no. / Types

Length	1000 mm

Dimension B

Dimension b

Dimension H

Dimension h

Product description

Product description

Fire protection duct made from water and frost-proof fibreglass lightweight concrete of building material class A1 according to EN 13501-1 for fireproof laying of cables in rescue and emergency routes, and for the maintenance of electrical functionality of safety-relevant systems. Classification I90 as I duct according to DIN 4102 Part 11 and classification E30 as E duct according to DIN 4102 Part 12.

Mounting of the duct directly on walls or under ceilings.

Including countersunk head screws and sealing strip.

Technical data

Technical data

Colour	Grey
Cover fastening	Screw

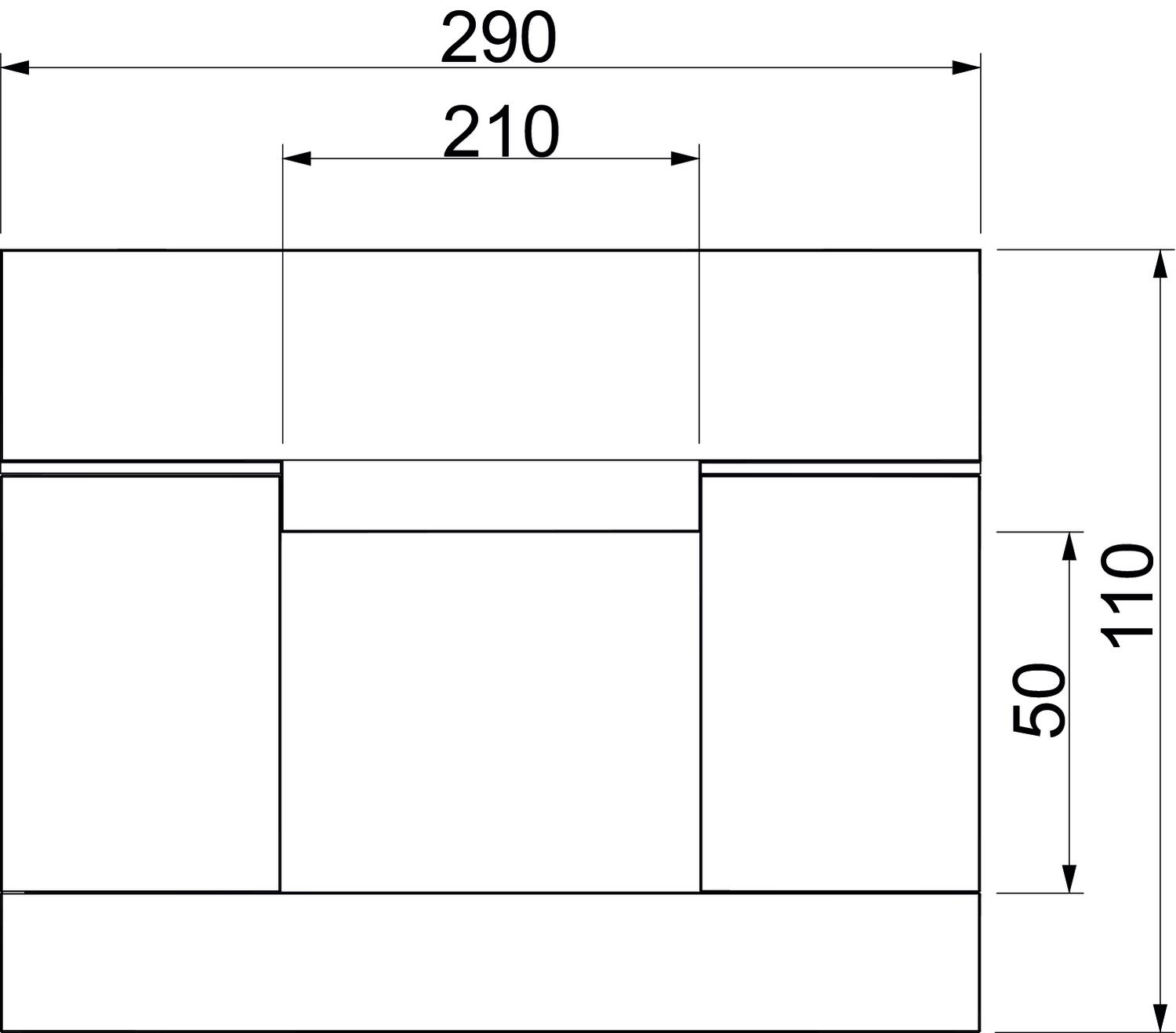

Dimension	1000x50x210
Dimension B	290 mm
Dimension b	210 mm
Dimension h	50 mm
Dimension H	110 mm
Fire resistance class E − function maintenance	30
Fire resistance class I − installation duct	90
Height	110 mm

Jacketing	Without
Length	1000 mm
Material	Fibreglass lightweight concrete
Material of the insulation	Glass-fibre lightweight concrete
Number of flammable sides	3
Partitions possible	yes
Usable cross-section	10500 mm²
Width	290 mm
With perforation	no

All types

All types

Types	Length	Dimension B	Dimension b	Dimension H	Dimension h	Item no.
BSKD09-K0506	1000 mm	140 mm	60 mm	110 mm	50 mm	7215136
BSKD09-K0511	1000 mm	190 mm	110 mm	110 mm	50 mm	7215139
BSKD09-K0521	1000 mm	290 mm	210 mm	110 mm	50 mm	7215141
BSKD09-K1021	1000 mm	290 mm	210 mm	165 mm	105 mm	7215144

Accessories

System accessories

Products	Types	Item no.

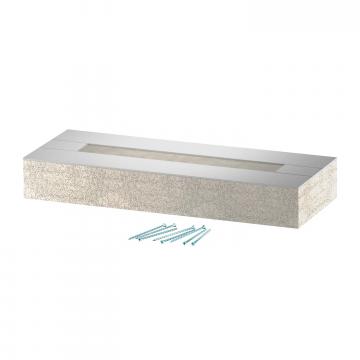

End piece for PYROLINE® Con D BSKD09-K0521 fire protection duct	BSKD09-E0521	7215265
Doubler for PYROLINE® Con fire protection duct	KAD-8040	7215464
Fire protection duct mortar	KTM	7215500
Separating bracket for wall mounting	BSKD-W0521	7215318
Separating clamp for ceiling mounting	BSKD-B0521	7215362
Cable bracket, vertical, for PYROLINE® fire protection ducts, height 20 mm	LHS 20	7215288
Cable bracket, vertical, for PYROLINE® fire protection ducts, height 40 mm	LHS 40	7215290
Identification plate	KS-K DE	7214734
Identification plate for maintenance of electrical function	KS-E DE	7205423
