Profile earth rod with connecting lug
Item no. 5003024 | EAN 4012195373698
- Product description
-

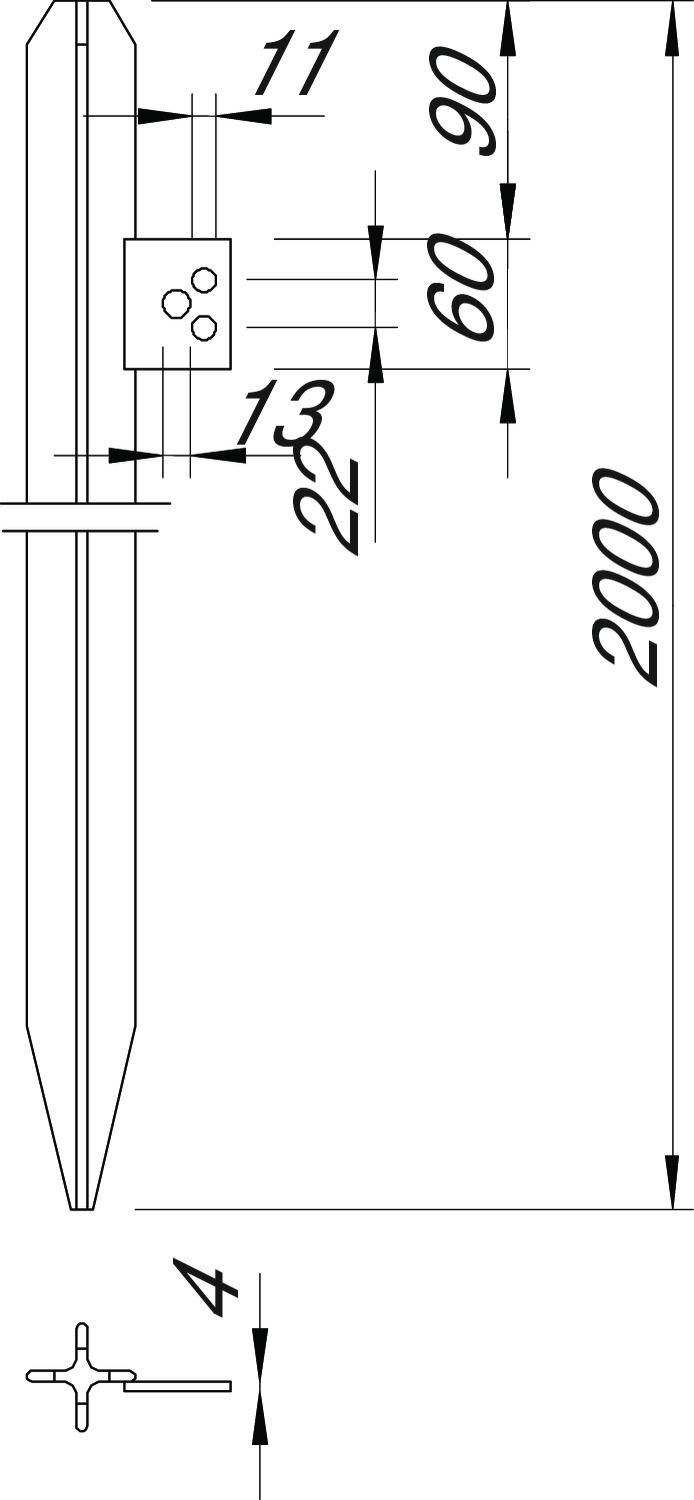

Product description• Cross-profile 50 x 50 x 3 mm
• With connecting strap
• 1 through hole Ø 13 mm
• 2 through holes Ø 11 mm
• Round conductor fastening, e.g. with type 5001 DIN-FT possible
• For the construction of earthing systems, e.g. antenna or earthing of
building site distribution boards
- Technical data
-
Technical data
CO2 Footprint (GWP) Cradle-to-Gate 10,3089 kg CO2e / 1 Piece Dimension 2000mm Dimension L 2000 mm Length 2000 mm Material Steel Profile type Cross Surface Hot-dip galvanised - All types
