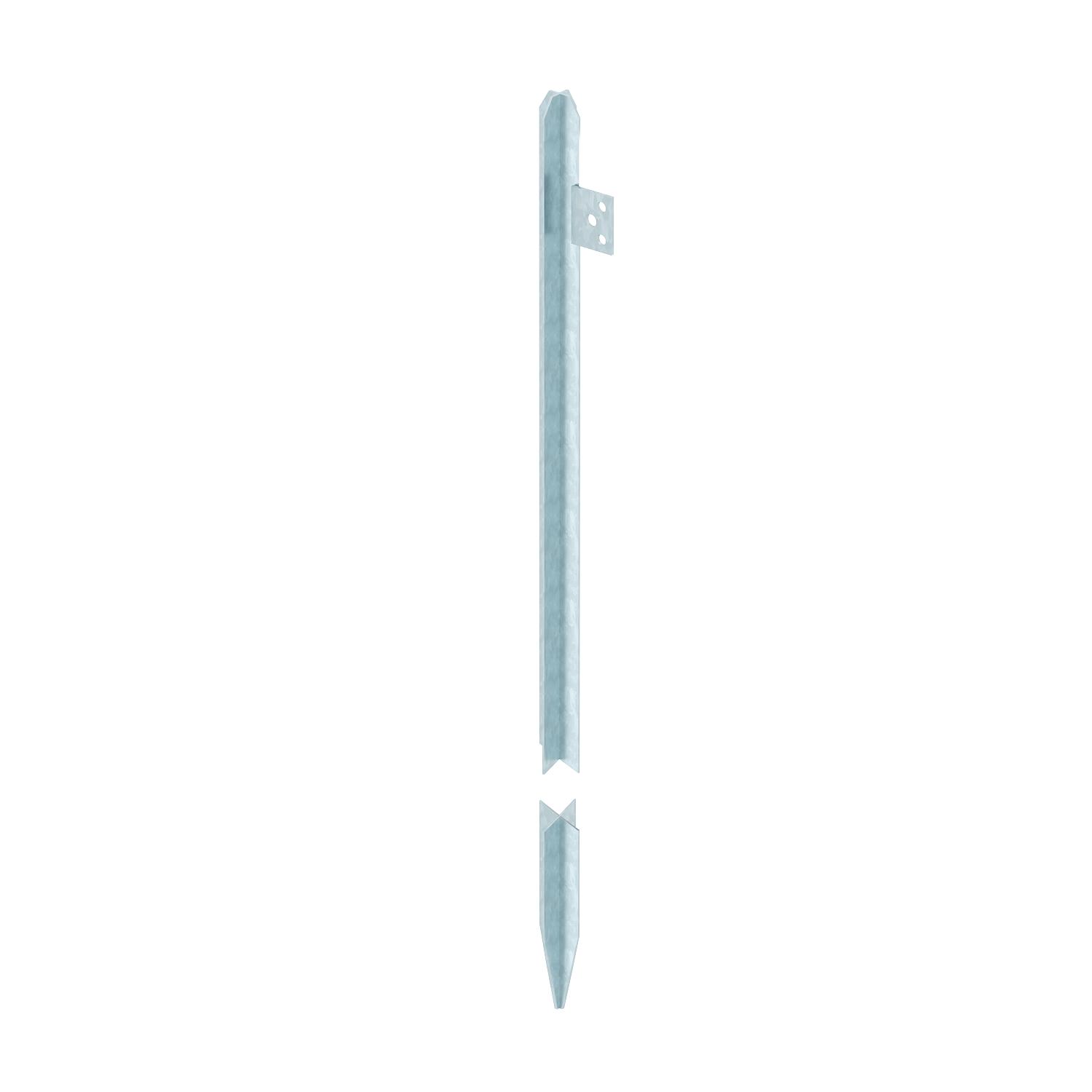

Profile earth rod with connecting lug
Item no. 5003008 | EAN 4012195373575
- Product description
-

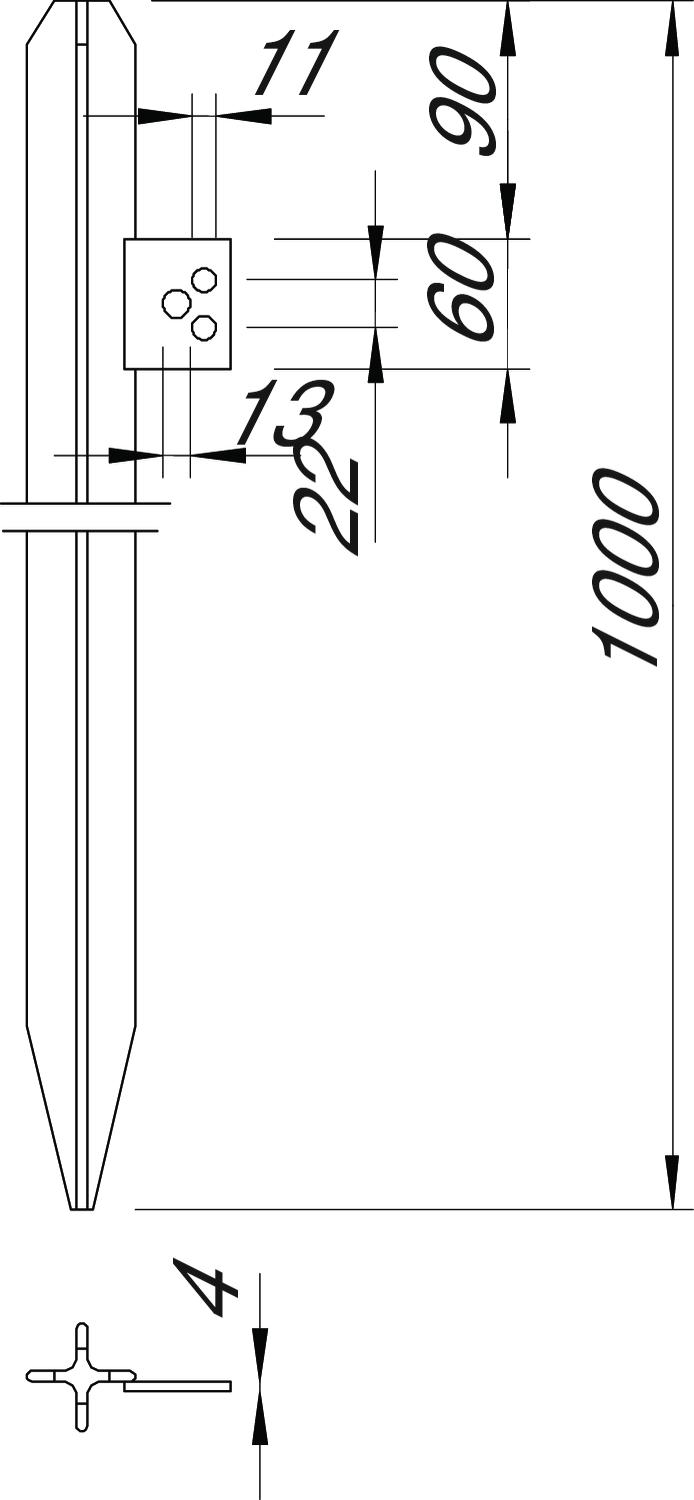

Product description• Cross-profile 50 x 50 x 3 mm
• With connecting strap
• 1 through hole Ø 13 mm
• 2 through holes Ø 11 mm
• Round conductor fastening, e.g. with type 5001 DIN-FT possible
• For the construction of earthing systems, e.g. antenna or earthing of
building site distribution boards
- Technical data
-
Technical data
CO2 Footprint (GWP) Cradle-to-Gate 5,2583 kg CO2e / 1 Piece Dimension 1000mm Dimension L 1000 mm Length 1000 mm Material Steel Profile type Cross Surface Hot-dip galvanised - All types
- Downloads
-
Data sheet 213 1000 DIN / 5003008 , 0.14MB , pdfEU declaration of conformity 213 1000 DIN / 5003008 , 0.06MB , pdfREACH Declaration of conformity 213 1000 DIN / 5003008 , 0.12MB , pdfRoHS Declaration of conformity 213 1000 DIN / 5003008 , 0.13MB , pdf
