Pressure screw, PG thread, light grey 21 | PG | Polystyrene | Light grey; RAL 7035
morepic-1 morepic-2

Pressure screw, PG thread, light grey

Item no. 2025213 | EAN 4012195163275

Polystyrene
Light grey; RAL 7035
Product description
Product description
Pressure screw (Part 1) to DIN 46320, with Pg thread DIN 40430.
  • Halogen-free; without chlorine, fluorine and bromine
  • Thread Pg

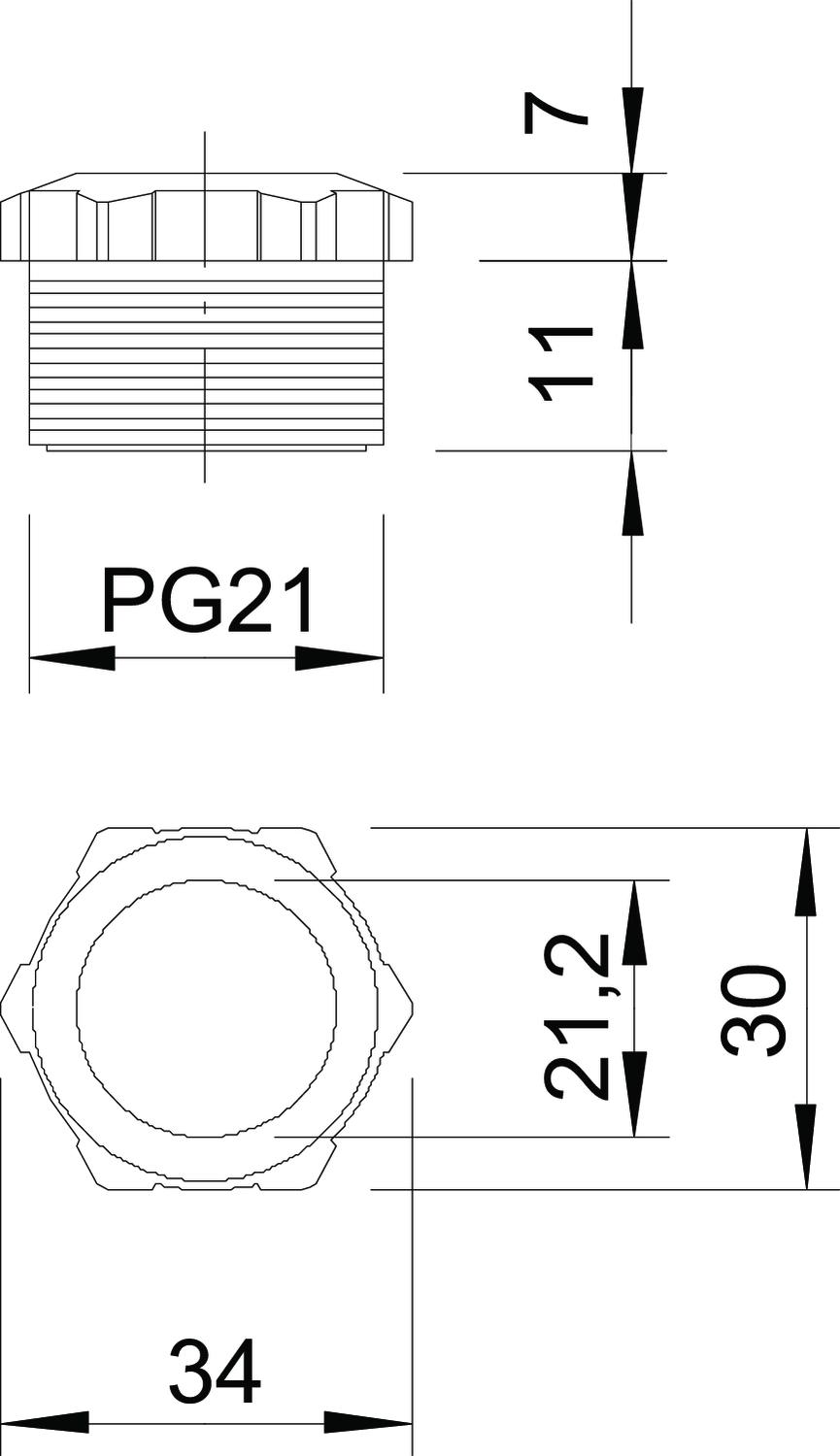

Technical data

Technical data

Colour Light grey; RAL 7035
Dimension PG21
Dimension D 21,2 mm
Dimension E 34 mm
Dimension L1 17 mm
Dimension L2 7 mm
Fibre-glass reinforced no
Halogen-free yes
Impact-resistant yes
Material Polystyrene
Nominal thread size 21
Strain relief option no
Thread increase 1,59 mm
Thread type PG
WAF 30
All types

All types

Types Nominal thread size Thread type Material Colour Item no.
107 E PG9 PS 9 PG Polystyrene Light grey; RAL 7035 2025094
107 E PG11 PS 11 PG Polystyrene Light grey; RAL 7035 2025116
107 E PG13.5 PS 13.5 PG Polystyrene Light grey; RAL 7035 2025132
107 E PG16 PS 16 PG Polystyrene Light grey; RAL 7035 2025167
107 E PG21 PS 21 PG Polystyrene Light grey; RAL 7035 2025213
107 E PG29 PS 29 PG Polystyrene Light grey; RAL 7035 2025299
107 E PG36 PS 36 PG Polystyrene Light grey; RAL 7035 2025361
107 E PG42 PS 42 PG Polystyrene Light grey; RAL 7035 2025426
107 E PG48 PS 48 PG Polystyrene Light grey; RAL 7035 2025485
107 E M20 PS 20 Metric Polystyrene Light grey; RAL 7035 2025809
