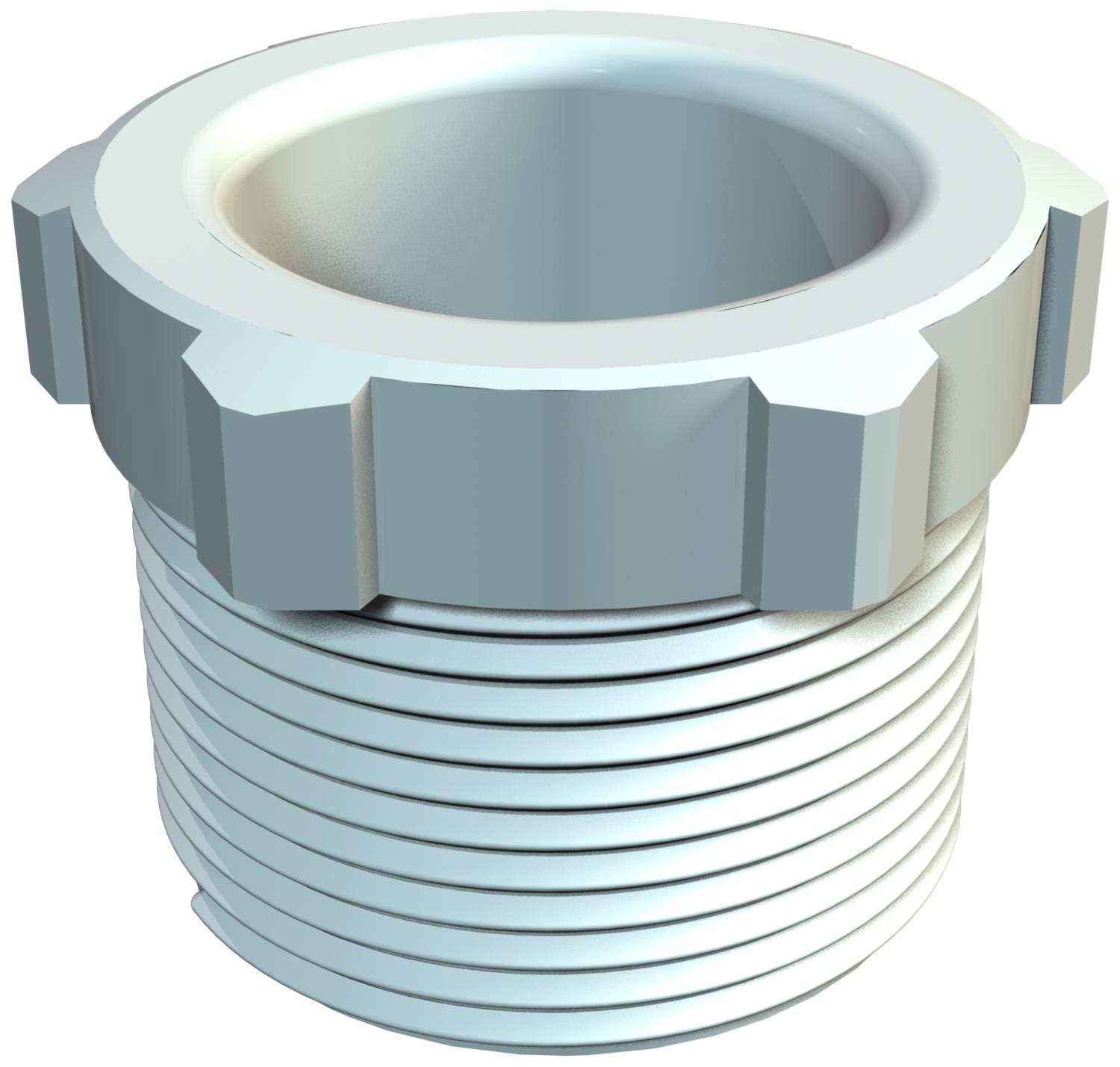

Pressure screw, PG thread, fibre-glass reinforced
Item no. 2025604 | EAN 4012195163879
- Product description
-
Product descriptionPressure screw, Part 1, to DIN 46320, fibreglass reinforced.
-
- Technical data
-
Technical data

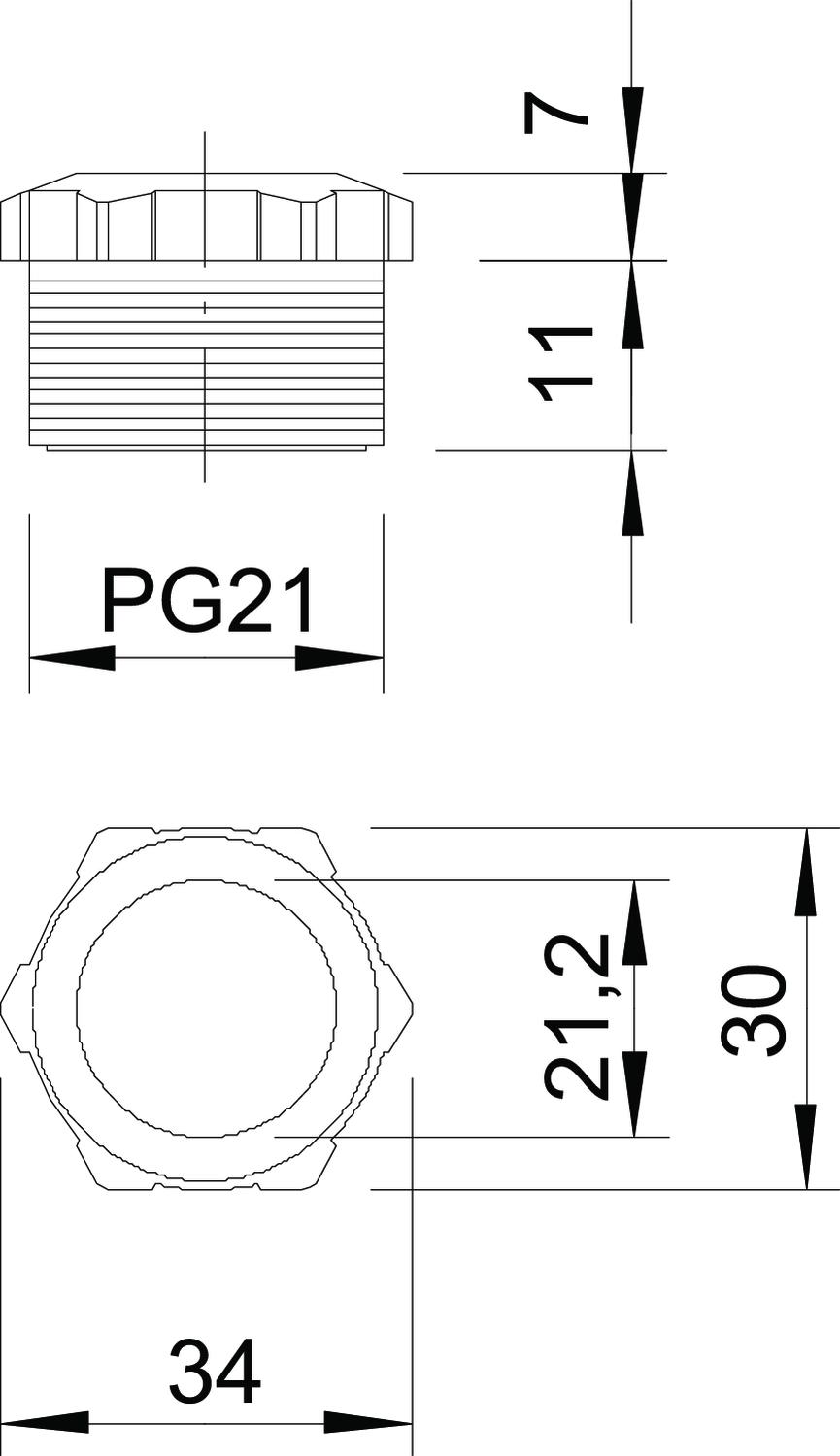

Colour Light grey; RAL 7035 Dimension PG21 Dimension D 21,2 mm Dimension L1 17 mm Dimension L2 7 mm Fibre-glass reinforced no Halogen-free yes Impact-resistant yes Material Polyamide Nominal thread size 21 Strain relief option no Thread type PG WAF 30 - All types
- Downloads
-
Data sheet 107 E PG21 PA / 2025604 , 0.18MB , pdfEU declaration of conformity 107 E PG21 PA / 2025604 , 0.10MB , pdfEU declaration of conformity EU declaration of conformity ,UK Declaration of Conformity 107 E PG21 PA / 2025604 , 0.09MB , pdfREACH Declaration of conformity 107 E PG21 PA / 2025604 , 0.12MB , pdfRoHS Declaration of conformity 107 E PG21 PA / 2025604 , 0.13MB , pdf
