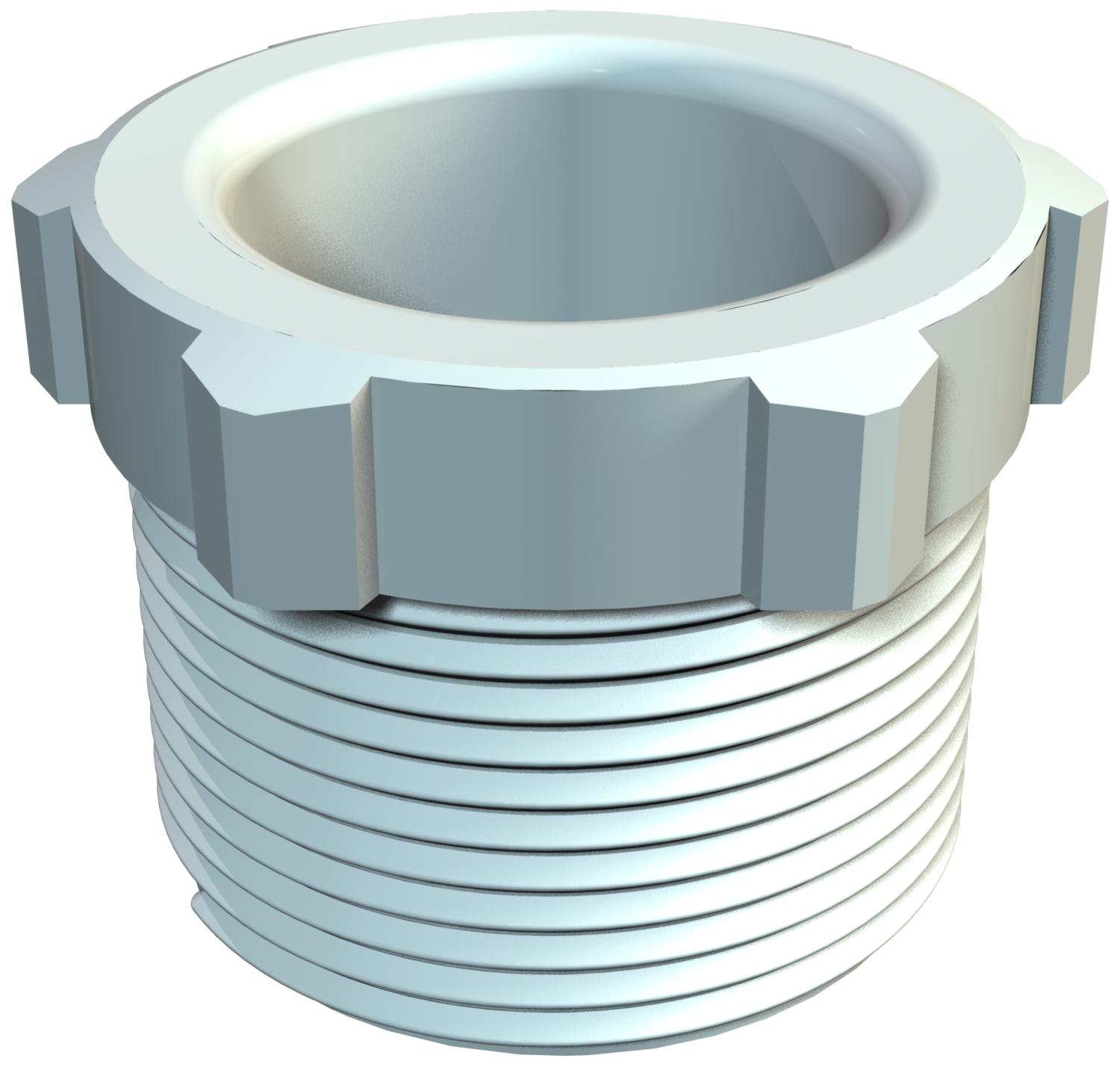

Pressure screw, PG thread, fibre-glass reinforced
Item no. 2025531 | EAN 4012195163695
- Product description
-
Product descriptionPressure screw, Part 1, to DIN 46320, fibreglass reinforced.
-
- Technical data
-
Technical data

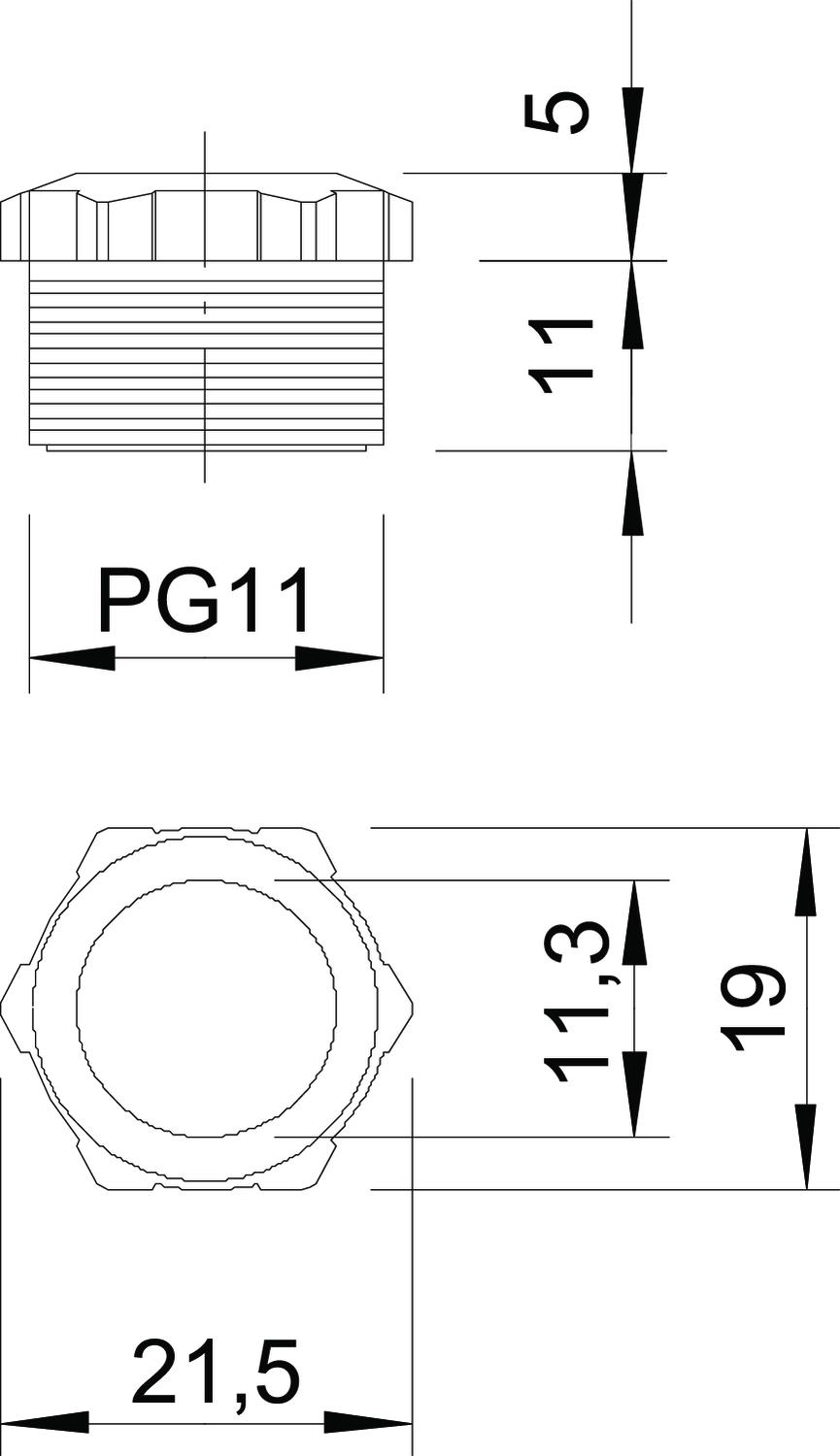

Colour Light grey; RAL 7035 Dimension PG11 Dimension D 11,3 mm Dimension L1 10 mm Dimension L2 5 mm Fibre-glass reinforced yes Halogen-free yes Impact-resistant no Material Polyamide Nominal thread size 11 Strain relief option no Thread increase 1,41 mm Thread type PG WAF 19 - All types
- Downloads
-
Data sheet 107 E PG11 PA / 2025531 , 0.18MB , pdfEU declaration of conformity 107 E PG11 PA / 2025531 , 0.10MB , pdfEU declaration of conformity EU declaration of conformity ,UK Declaration of Conformity 107 E PG11 PA / 2025531 , 0.09MB , pdfREACH Declaration of conformity 107 E PG11 PA / 2025531 , 0.12MB , pdfRoHS Declaration of conformity 107 E PG11 PA / 2025531 , 0.12MB , pdf
