Pressure ring, PG thread 16.5 | 12 | 11
morepic-1 morepic-2

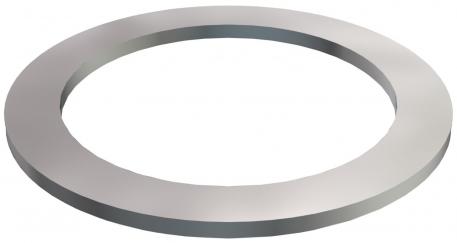

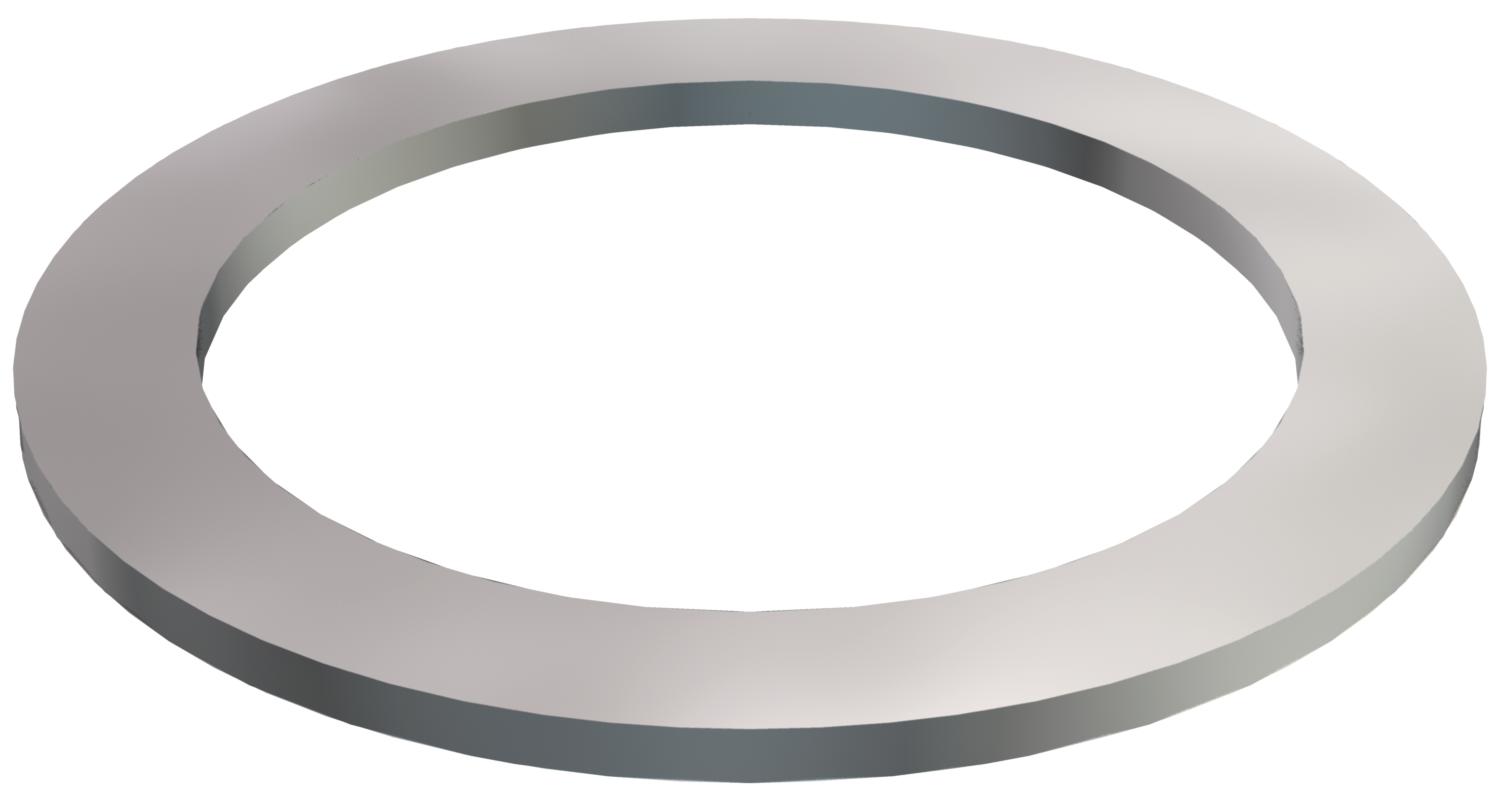

Pressure ring, PG thread

Item no. 2027119 | EAN 4012195164890

Product description
Product description
Pressure ring, Part 7, to DIN 46320, suitable for plastic and brass glands to DIN 46320.
  • Thread Pg
Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate 0,0039 kg CO₂e / 1 Piece

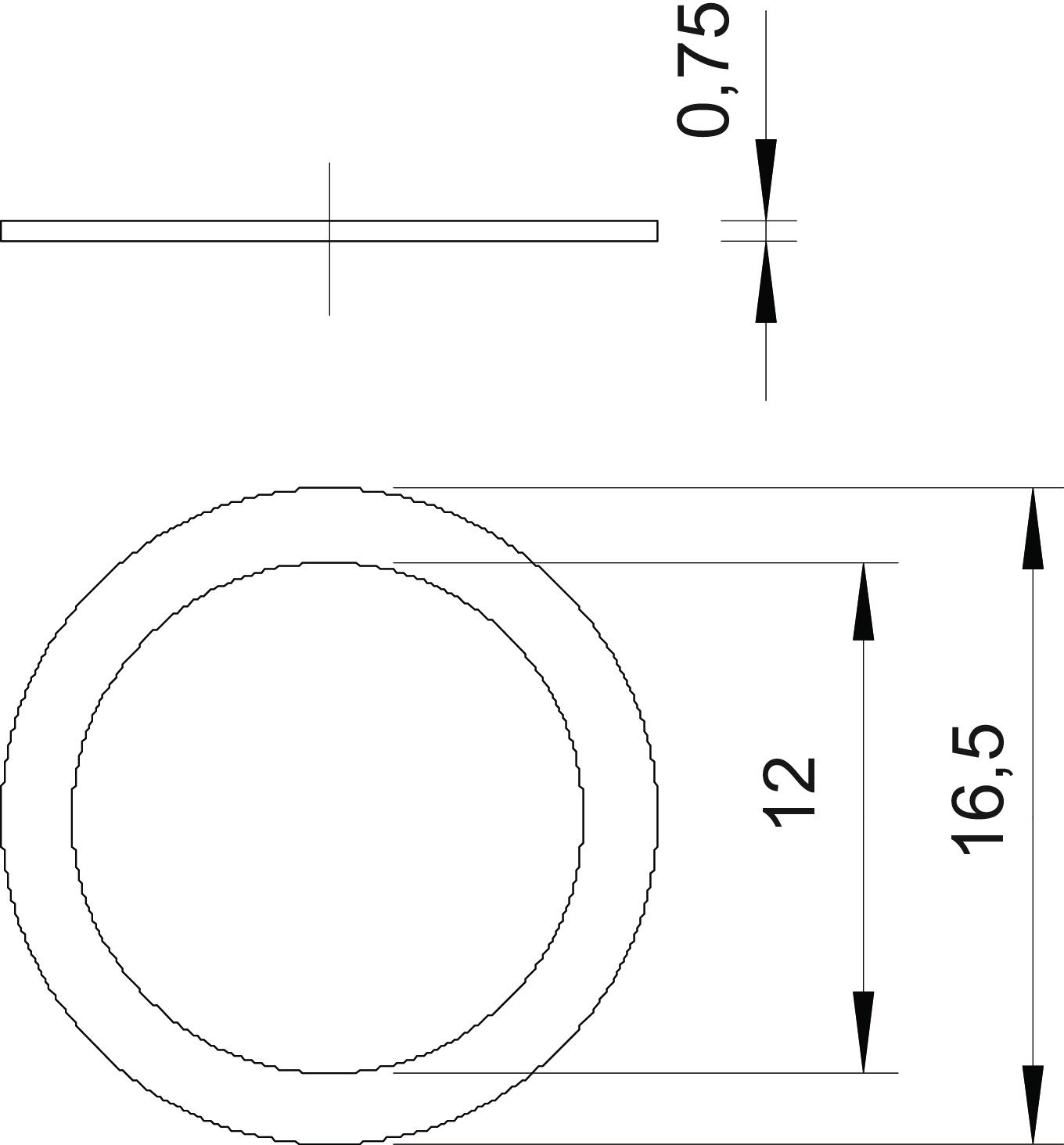

Dimension PG11
Dimension D1 16,5 mm
Dimension D2 12 mm
External diameter 16,5 mm
Inner diameter 12 mm
Material Steel
Screw for PG thread dimension 11
Surface Electrogalvanized, transparently passivated
Thickness 0,75 mm
Version for Miscellaneous
All types

All types

Types Dimension D1 Dimension D2 Screw for PG thread dimension Item no.
107 D PG7 GTP 11 mm 8 mm 7 2027070
107 D PG9 GTP 13.5 mm 10 mm 9 2027097
107 D PG11 GTP 16.5 mm 12 mm 11 2027119
107 D PG13.5 GTP 18.5 mm 14 mm 13.5 2027135
107 D PG16 GTP 20.5 mm 16 mm 16 2027151
107 D PG21 GTP 26 mm 21 mm 21 2027216
107 D PG29 GTP 35 mm 30 mm 29 2027291
