Pressure ring, PG thread 11 | 8 | 7
morepic-1 morepic-2

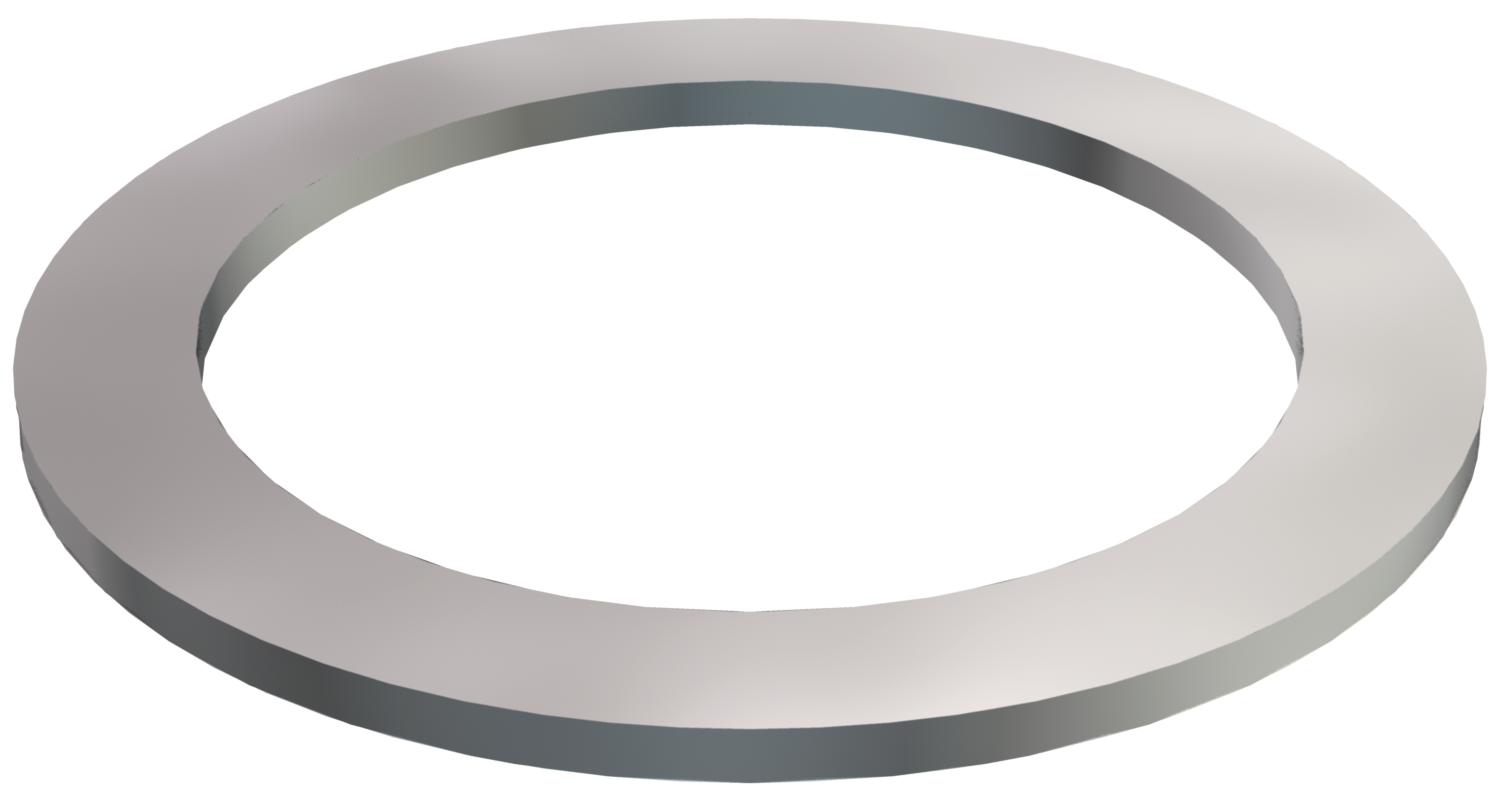

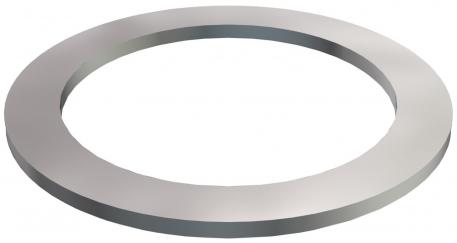

Pressure ring, PG thread

Item no. 2027070 | EAN 4012195164777

Product description
Product description
Pressure ring, Part 7, to DIN 46320, suitable for plastic and brass glands to DIN 46320.
  • Thread Pg
Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate 0,0025 kg CO₂e / 1 Piece

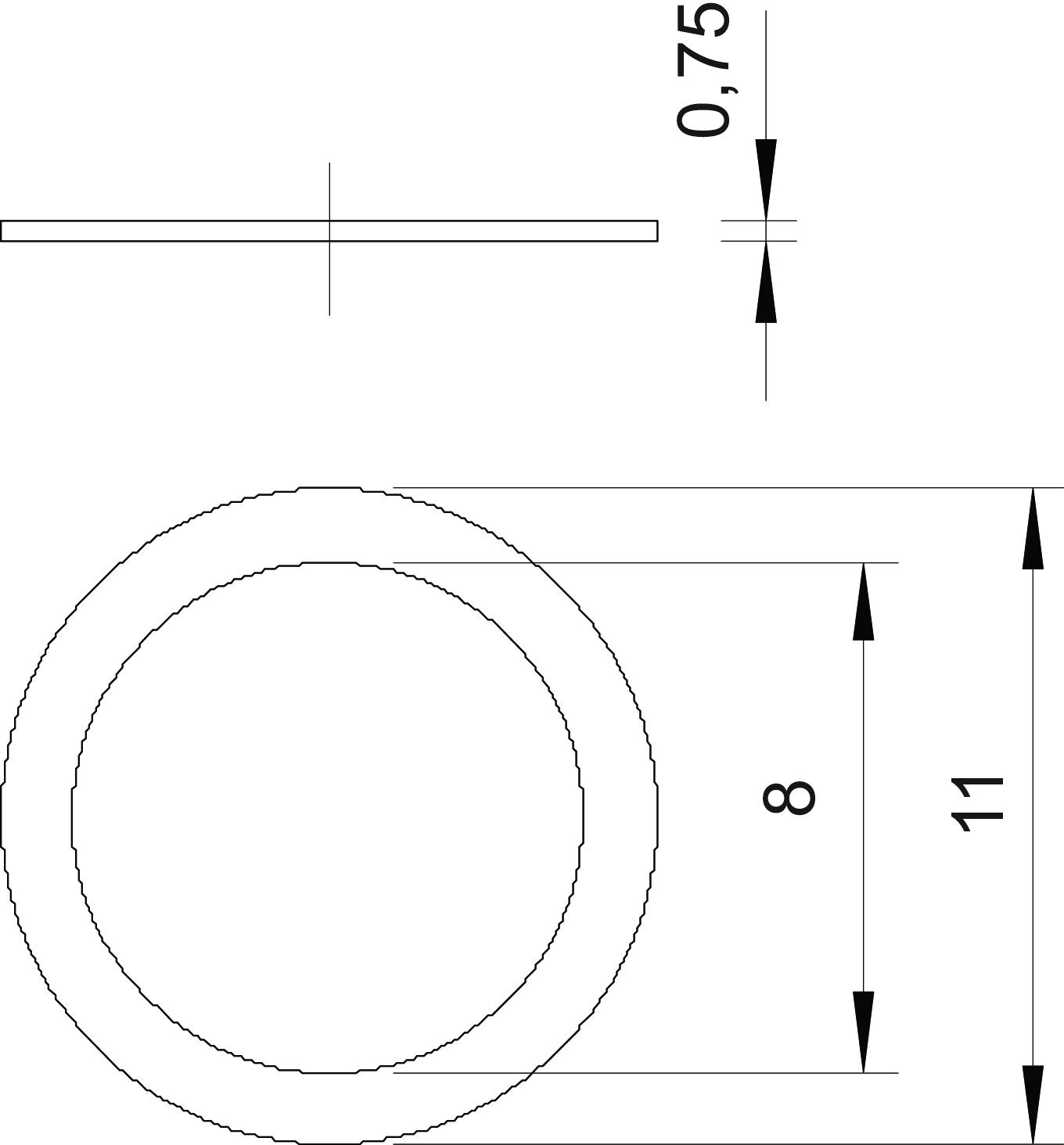

Dimension PG7
Dimension D1 11 mm
Dimension D2 8 mm
External diameter 11 mm
Inner diameter 8 mm
Material Steel
Screw for PG thread dimension 7
Surface Electrogalvanized, transparently passivated
Thickness 0,75 mm
Version for Miscellaneous
All types

All types

Types Dimension D1 Dimension D2 Screw for PG thread dimension Item no.
107 D PG7 GTP 11 mm 8 mm 7 2027070
107 D PG9 GTP 13.5 mm 10 mm 9 2027097
107 D PG11 GTP 16.5 mm 12 mm 11 2027119
107 D PG13.5 GTP 18.5 mm 14 mm 13.5 2027135
107 D PG16 GTP 20.5 mm 16 mm 16 2027151
107 D PG21 GTP 26 mm 21 mm 21 2027216
107 D PG29 GTP 35 mm 30 mm 29 2027291
