Mounting/branch piece 60 A4
Item no. 6042371 | EAN 4012197338152
- Product description
-

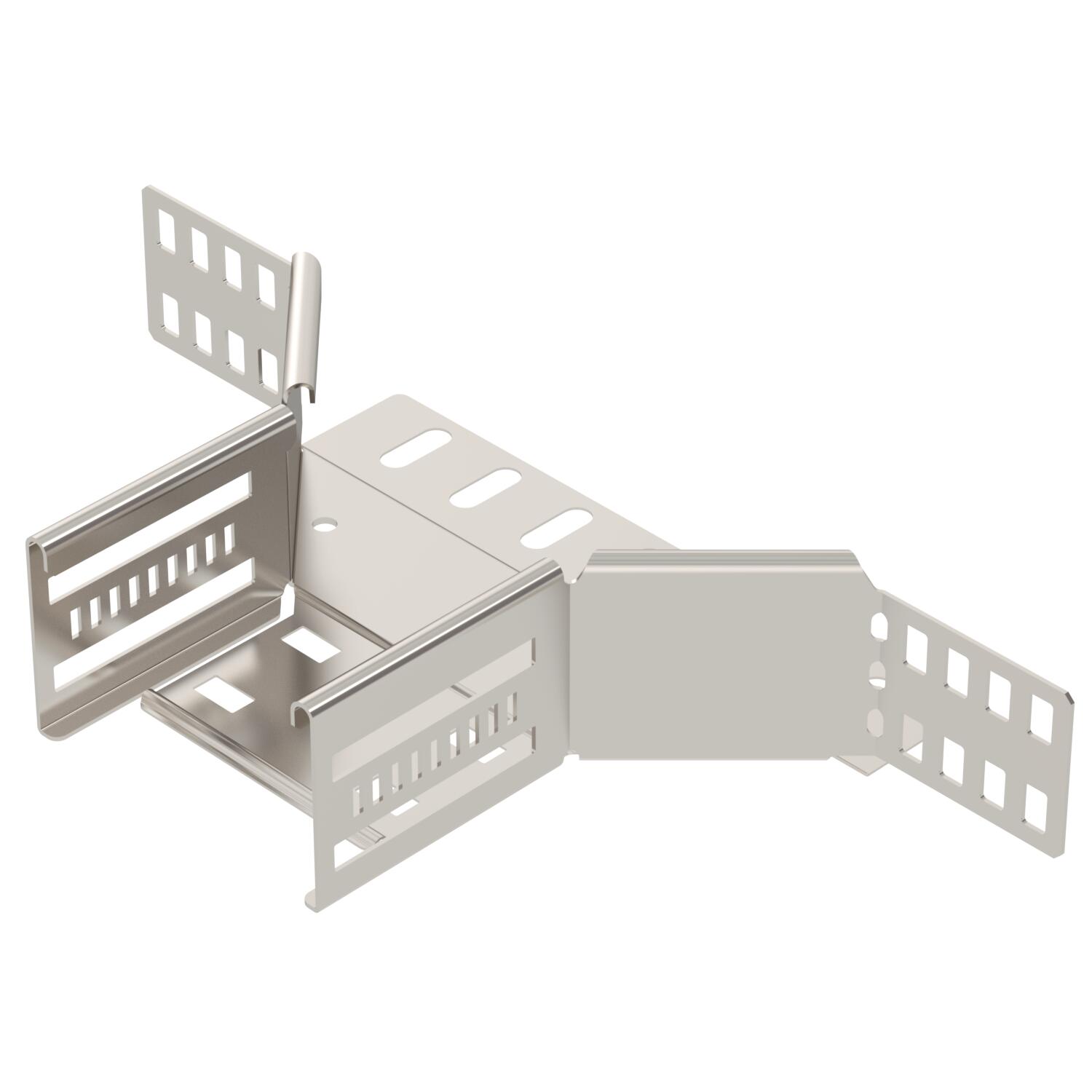

Product descriptionAdd-on tee for the creation of a horizontal branch or cross-over, fitting for lock and screw-on cable trays of side height 60 mm. Screwless mounting with double clamps or screw connection with FRS truss-head screws and M6 combination nuts. Can be used indoors and outdoors. Fastening material must be ordered separately.
-
- Technical data
-
Technical data

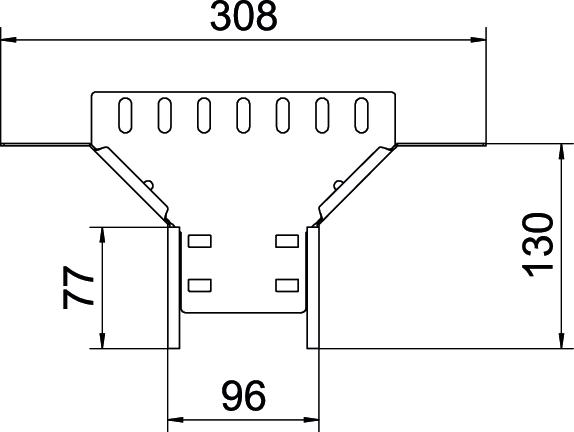

CO2 Footprint (GWP) Cradle-to-Gate 3,0436 kg CO2e / 1 Piece Colour stainless steel Connector version Integrated connector Departing width 100 mm Dimension 60x100 Dimension B 100 mm Height 60 mm Maintain electrical functions yes Material Stainless steel Material thickness, floor plate 0,8 mm NATO hole pattern no Permitted temperature range, max. 120 °C Permitted temperature range, min. -20 °C Plate thickness 0,8 mm Rail thickness 1,25 mm Recommended quantity of bolts 18 St. Rustproof steel, pickled no Surface Bright, treated Type of connector, cable support system Screwed Wide-span version no Width 100 mm - All types
-
System accessories
Products Types Item no.

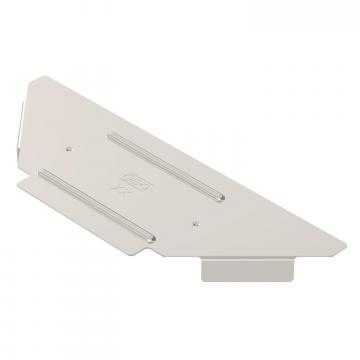

Cover for add-on tee A4
RAAD 100 A4 6042471 Mounting accessories
Products Types Item no.
Truss-head bolt with flange nut A4
FRSB 6x12 A4 6406142 - Downloads
-
Data sheet RAA 610 A4 / 6042371 , 0.18MB , pdfCatalogue Cable support systems , 54.52MB , pdfEU declaration of conformity RAA 610 A4 / 6042371 , 0.10MB , pdfUK Declaration of Conformity RAA 610 A4 / 6042371 , 0.09MB , pdfREACH Declaration of conformity RAA 610 A4 / 6042371 , 0.12MB , pdfRoHS Declaration of conformity RAA 610 A4 / 6042371 , 0.13MB , pdfMounting instructions Latchable Magic cable tray systems , 12.24MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
