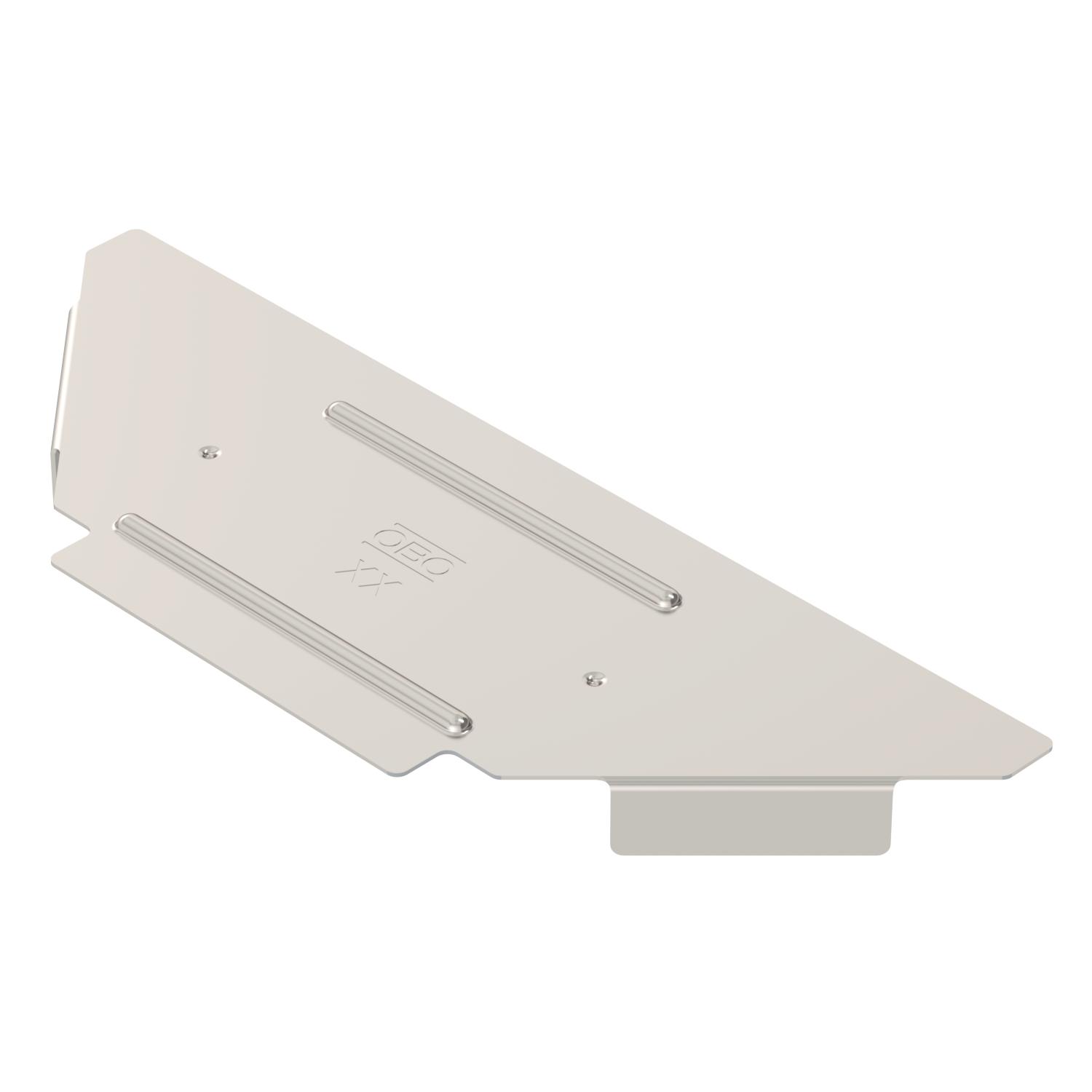

Cover for add-on tee A4

Item no. 6042471 | EAN 4012197407094

Item no. / Types

Width

Plate thickness

Product description

Product description

Cover for add-on tee fitting for lockable and screw-on cable trays in indoor and outdoor areas, to protect cables against damage and soiling. Fastening through attachment of the section cover. Suitable for all side heights.

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	0,6637 kg CO2e / 1 Piece
Colour	stainless steel
Dimension	B100mm
Dimension B	100 mm
Fastening type	On top
Material	Stainless steel
Material thickness	0,75 mm
Permitted temperature range, max.	120 °C

Permitted temperature range, min.	-20 °C
Plate thickness	0,75 mm
Rustproof steel, pickled	no
Suitable for cable ladder	no
Suitable for cable tray	yes
Surface	Bright, treated
Wide-span version	no
Width	100 mm

All types

All types

Types	Width	Plate thickness	Item no.
RAAD 100 A4	100 mm	0.75 mm	6042471
RAAD 150 A4	150 mm	0.75 mm	6042473
RAAD 200 A4	200 mm	0.75 mm	6042475
RAAD 300 A4	300 mm	0.75 mm	6042477
RAAD 400 A4	400 mm	1 mm	6042479
RAAD 500 A4	500 mm	1 mm	6042481
RAAD 600 A4	600 mm	1 mm	6042483
