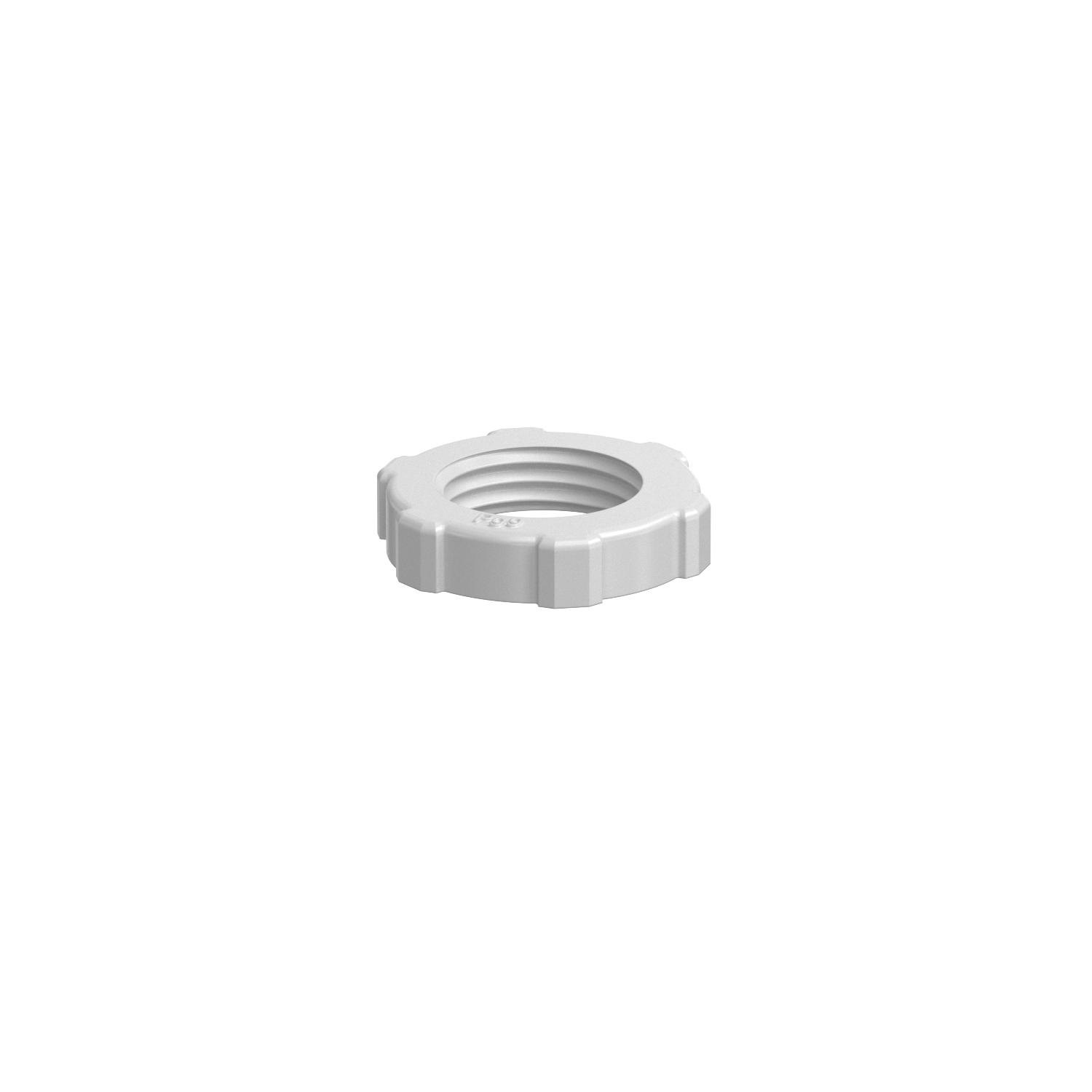

Locknut, PG thread
Item no. 2043092 | EAN 4012195178873
- Product description
-
Product descriptionLocknut DIN 46320, with PG thread DIN 40430.
Note: Only tighten polystyrene cable glands lightly due to the risk of stress crack formation.
-
- Technical data
-
Technical data

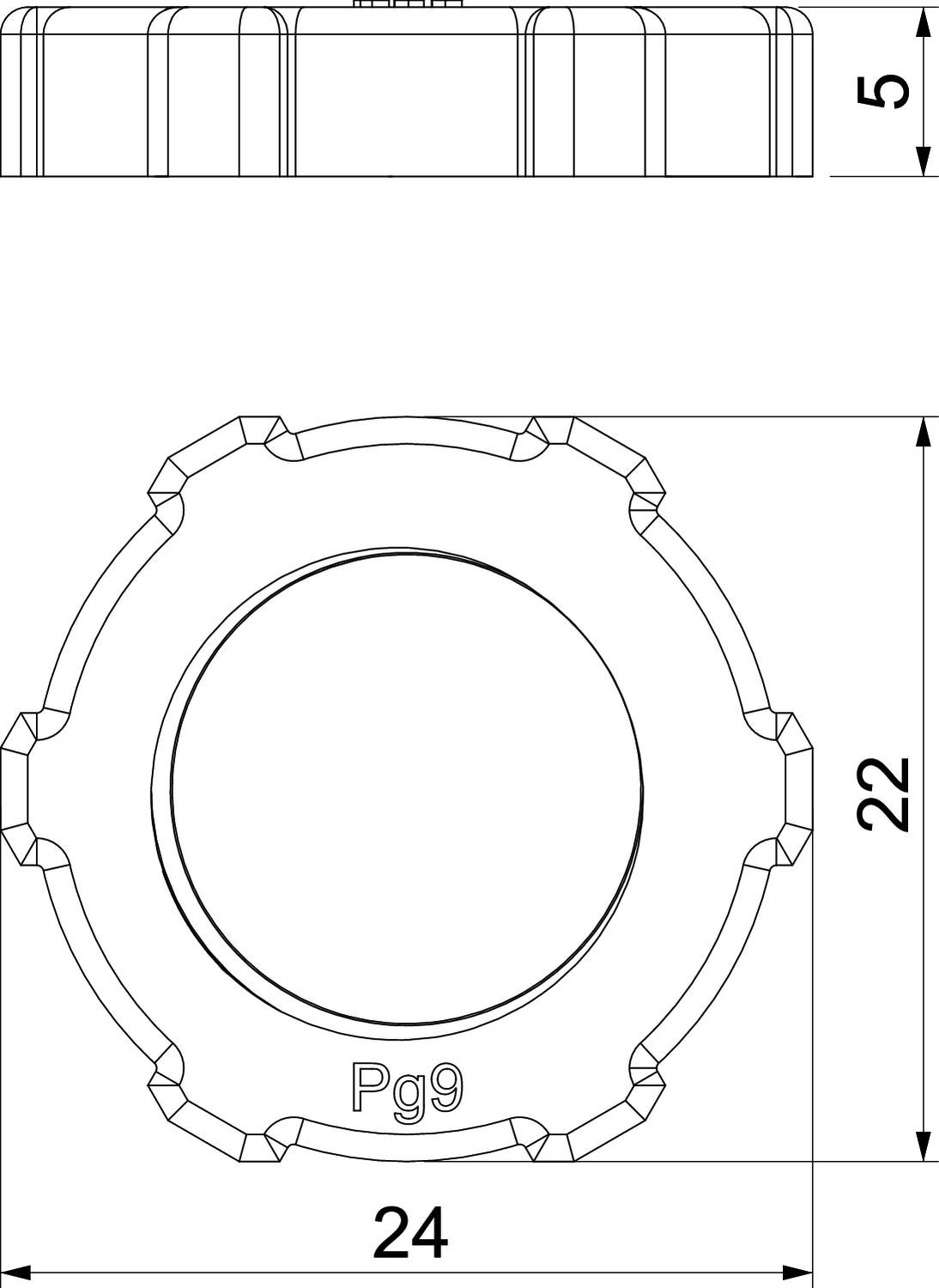

CO2 Footprint (GWP) Cradle-to-Gate 0,0062 kg CO₂e / 1 Piece Colour Light grey; RAL 7035 Dimension PG9 Dimension E 24 mm Dimension L 5 mm Fibre-glass reinforced no Halogen-free yes Impact-resistant yes Material Polystyrene Nominal thread size metric/PG 9 Thread Pg_9 Thread type PG WAF 22 - All types
- Downloads
-
Data sheet 116 PG 9 / 2043092 , 0.17MB , pdfEU declaration of conformity 116 PG 9 / 2043092 , 0.05MB , pdfREACH Declaration of conformity 116 PG 9 / 2043092 , 0.12MB , pdfRoHS Declaration of conformity 116 PG 9 / 2043092 , 0.12MB , pdf
