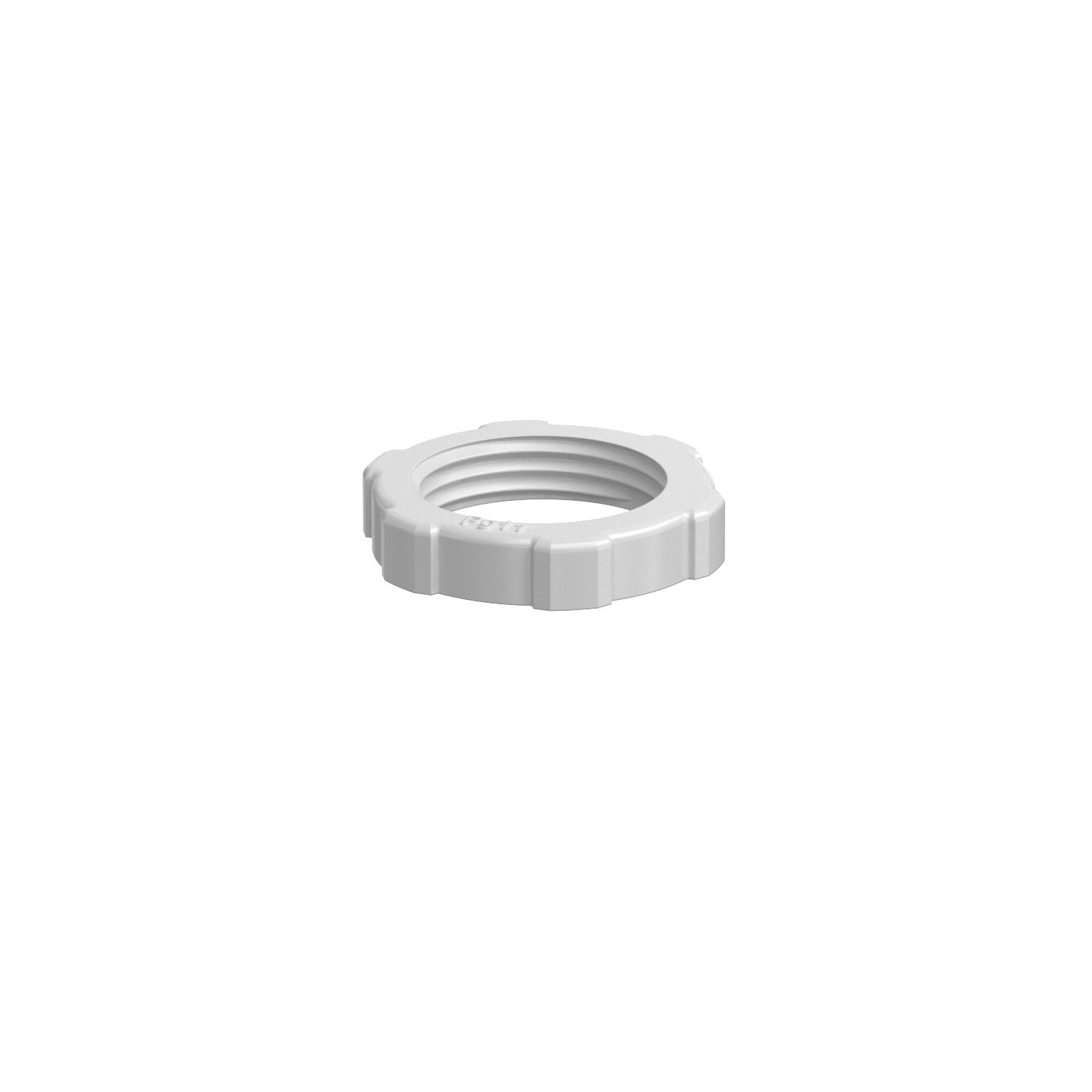

Locknut, PG thread

Item no. / Types

Thread

WAF

Product description

Product description

Locknut DIN 46320, with PG thread DIN 40430.

Note: Only tighten polystyrene cable glands lightly due to the risk of stress crack formation.

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	0,0066 kg CO₂e / 1 Piece
Colour	Light grey; RAL 7035

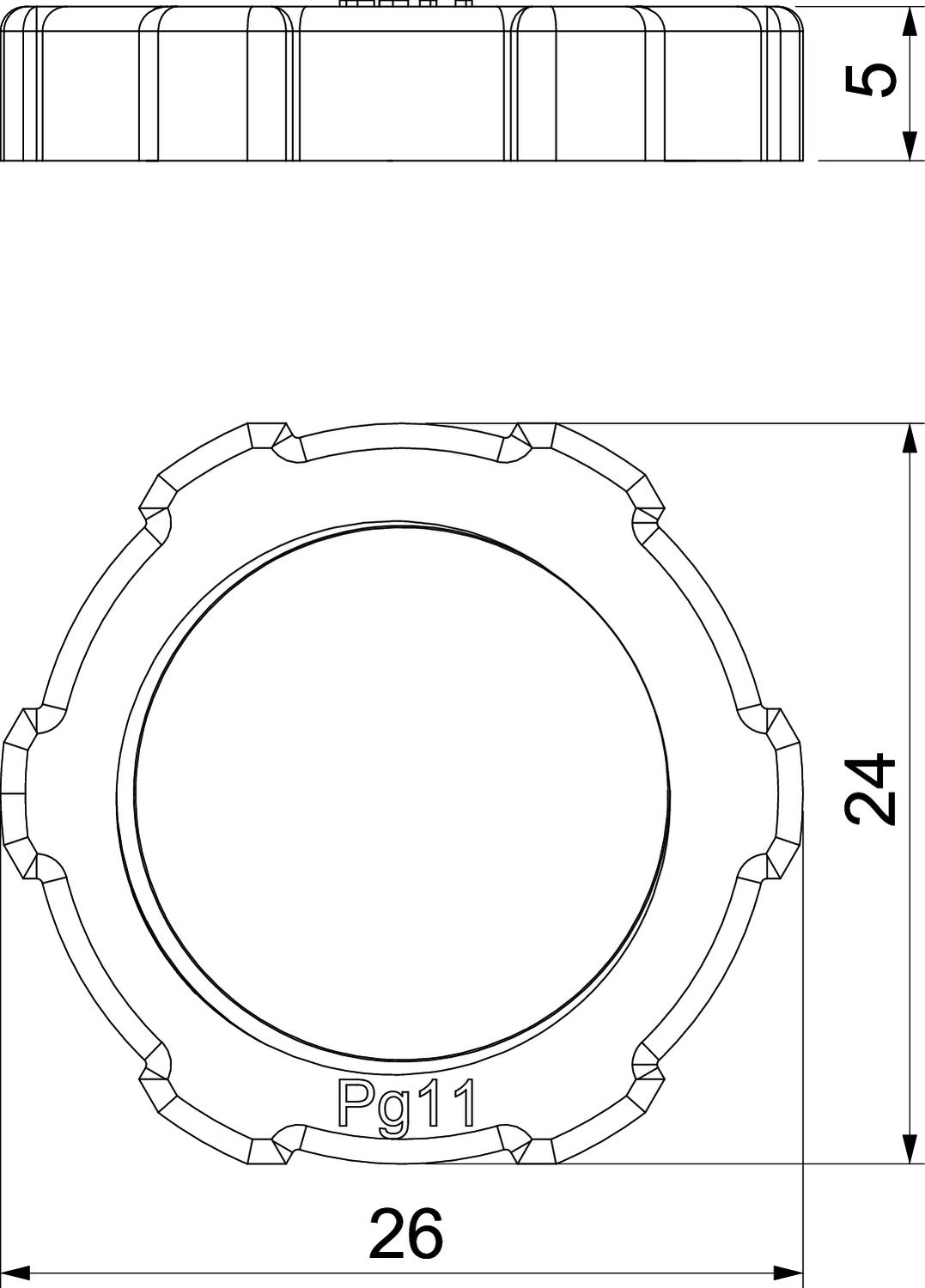

Dimension	PG11
Dimension E	26 mm
Dimension L	5 mm
Fibre-glass reinforced	no
Halogen-free	yes

Impact-resistant	yes
Material	Polystyrene
Nominal thread size metric/PG	11
Thread	Pg_11
Thread type	PG
WAF	24

All types

All types

Types	Thread	WAF	Item no.
116 PG 7	Pg_7	19	2043076
116 PG 9	Pg_9	22	2043092
116 PG11	Pg_11	24	2043114
116 PG13.5	Pg_13,5	27	2043130
116 PG16	Pg_16	30	2043165
116 PG21	Pg_21	36	2043211
116 PG29	Pg_29	46	2043297
116 PG36	Pg_36	60	2043351
116 PG42	Pg_42	65	2043424
116 PG48	Pg_48	70	2043483
